Converters / Digital to Analog Converters / AD7247ABNZ
Datasheets
AD7247ABNZ by:
Analog Devices Inc
Analog Devices Inc
Rochester Electronics LLC
Not Found

Dual 12-Bit DACPORT with Parallel Load

Part Details for AD7247ABNZ by Analog Devices Inc

Results Overview of AD7247ABNZ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

AD7247ABNZ Information

AD7247ABNZ by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for AD7247ABNZ

Part # Distributor Description Stock Price Buy
DISTI # AD7247ABNZ-ND
DigiKey IC DAC 12BIT V-OUT 24DIP Min Qty: 1 Lead time: 10 Weeks Container: Tube Temporarily Out of Stock
  • 1 $61.2200
  • 15 $47.2747
$47.2747 / $61.2200 Buy Now
DISTI # 584-AD7247ABNZ
Mouser Electronics Digital to Analog Converters - DAC IMPROVED 12-BIT DACPORT RoHS: Compliant 0
  • 15 $54.1100
  • 30 $53.2900
  • 60 $53.2700
  • 105 $52.1700
$52.1700 / $54.1100 Order Now
Analog Devices Inc IMPROVED 12-BIT DACPORT Package Multiple: 15 120
  • 1 $61.2200
  • 1,000 $35.0900
$35.0900 / $61.2200 Buy Now
DISTI # 26646794
Verical DAC 2-CH R-2R 12-bit 24-Pin PDIP N Tube RoHS: Compliant Min Qty: 15 Package Multiple: 15 Americas - 120
  • 15 $47.5723
$47.5723 Buy Now
Rochester Electronics DUAL 12 BIT DACPort RoHS: Compliant Status: Active Min Qty: 1 610
  • 25 $49.6400
  • 100 $47.1600
  • 500 $44.6800
  • 1,000 $42.1900
  • 10,000 $39.7100
$39.7100 / $49.6400 Buy Now
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 117
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # AD7247ABNZ
Richardson RFPD CONVERTER - DAC RoHS: Compliant Min Qty: 15 0
  • 15 $55.1100
  • 25 $52.8500
  • 100 $51.4400
  • 500 $50.1000
  • 1,000 $49.4600
$49.4600 / $55.1100 Buy Now

Part Details for AD7247ABNZ

AD7247ABNZ CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

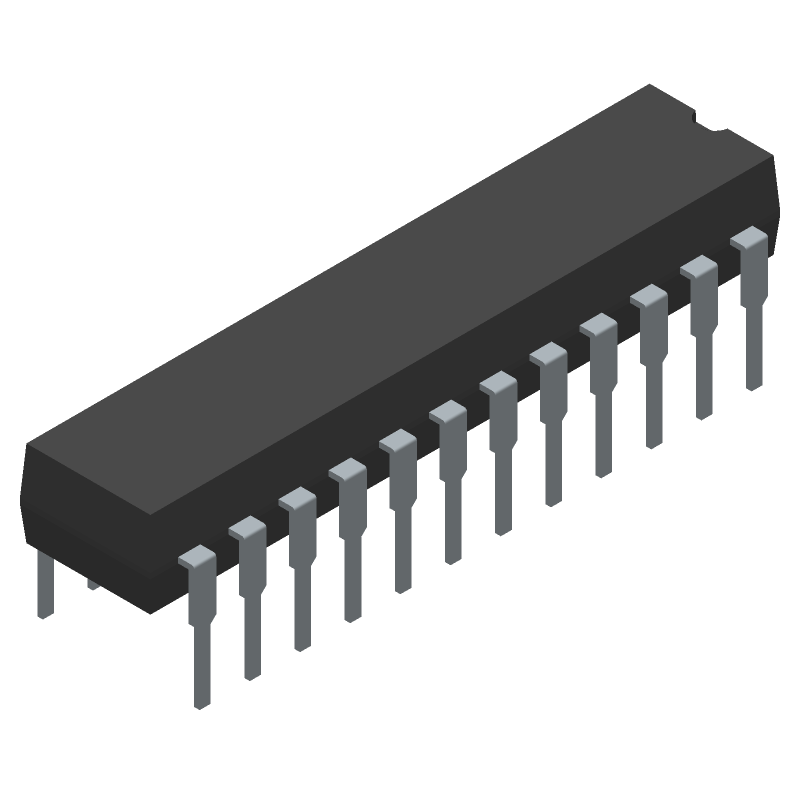

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AD7247ABNZ Part Data Attributes

Parametric Data
AD7247ABNZ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
AD7247ABNZ Analog Devices Inc Dual 12-Bit DACPORT with Parallel Load
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code DIP
Package Description 0.300 INCH, PLASTIC, DIP-24
Pin Count 24
Manufacturer Package Code N-24-1
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Analog Output Voltage-Max 5 V
Analog Output Voltage-Min -5 V
Converter Type D/A CONVERTER
Input Bit Code BINARY
Input Format PARALLEL, WORD
JESD-30 Code R-PDIP-T24
JESD-609 Code e3
Length 30.48 mm
Linearity Error-Max (EL) 0.0122%
Negative Supply Voltage-Nom -15 V
Number of Bits 12
Number of Functions 2
Number of Terminals 24
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP24,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Settling Time-Max 8 µs
Settling Time-Nom (tstl) 5 µs
Supply Current-Max 15 mA
Supply Voltage-Nom 15 V
Surface Mount NO
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm

Alternate Parts for AD7247ABNZ

This table gives cross-reference parts and alternative options found for AD7247ABNZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD7247ABNZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AD7247ABN Analog Devices Inc Check for Price Dual 12-Bit DACPORT with Parallel Load AD7247ABNZ vs AD7247ABN
AD7247JNZ Analog Devices Inc $41.4877 Dual 12-Bit DACPORT with Parallel Load AD7247ABNZ vs AD7247JNZ
AD7247JN Analog Devices Inc Check for Price Dual 12-Bit DACPORT with Parallel Load AD7247ABNZ vs AD7247JN
AD7247SQ/883B Analog Devices Inc Check for Price IC DUAL, PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24, Digital to Analog Converter AD7247ABNZ vs AD7247SQ/883B
AD7247AAN Analog Devices Inc Check for Price Dual 12-Bit DACPORT with Parallel Load AD7247ABNZ vs AD7247AAN
AD7247BQ Analog Devices Inc Check for Price Dual 12-Bit DACPORT with Parallel Load AD7247ABNZ vs AD7247BQ
AD7247TQ/883B Analog Devices Inc Check for Price IC DUAL, PARALLEL, WORD INPUT LOADING, 12-BIT DAC, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24, Digital to Analog Converter AD7247ABNZ vs AD7247TQ/883B
AD7247ATQ Analog Devices Inc Check for Price Dual 12-Bit DACPORT with Parallel Load AD7247ABNZ vs AD7247ATQ
5962-9078501QLX Defense Logistics Agency Check for Price D/A Converter, 2 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24 AD7247ABNZ vs 5962-9078501QLX
AD7247KN/883B Analog Devices Inc Check for Price IC DUAL, PARALLEL, WORD INPUT LOADING, 12-BIT DAC, PDIP24, 0.300 INCH, PLASTIC, DIP-24, Digital to Analog Converter AD7247ABNZ vs AD7247KN/883B

AD7247ABNZ Related Parts

AD7247ABNZ Frequently Asked Questions (FAQ)

  • The AD7247ABNZ is a high-frequency device, and proper layout and placement are crucial for optimal performance. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops.

  • To optimize the AD7247ABNZ for low noise performance, ensure that the device is operated within its recommended operating conditions, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, consider using a noise-reducing capacitor between the VCC and GND pins.

  • The AD7247ABNZ can operate with clock frequencies up to 65 MHz. However, the maximum clock frequency may be limited by the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information.

  • The AD7247ABNZ can be interfaced with a microcontroller or FPGA using a standard SPI interface. Ensure that the microcontroller or FPGA is capable of operating at the required clock frequency, and follow the interface timing diagrams provided in the datasheet.

  • The power consumption of the AD7247ABNZ depends on the operating conditions and the clock frequency. Typically, the device consumes around 30-40 mA of current at a 5V supply voltage and 65 MHz clock frequency. Consult the datasheet for more detailed power consumption information.
