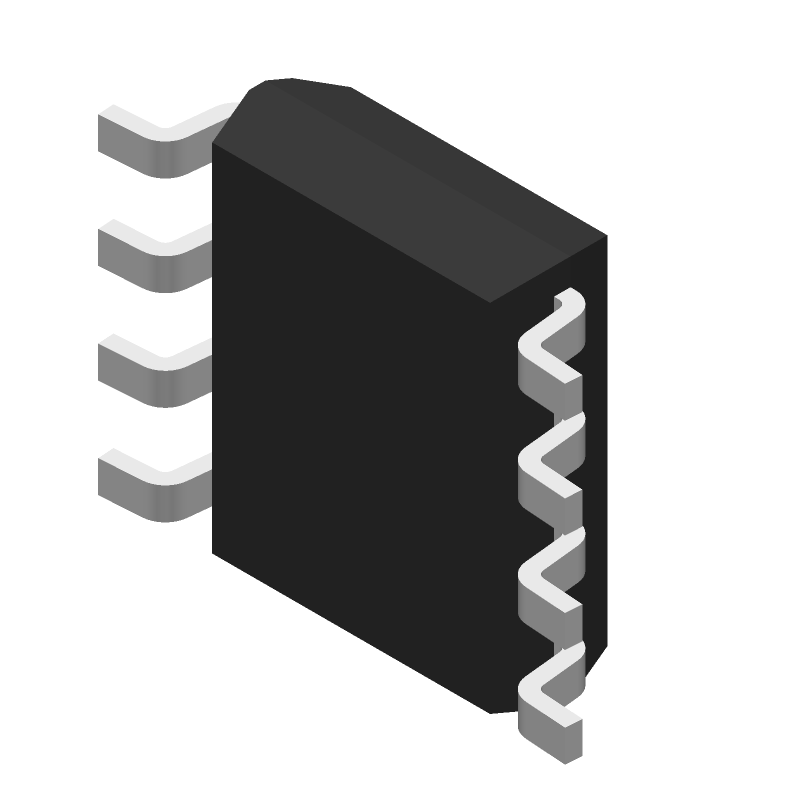

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD623AR by Analog Devices Inc
Results Overview of AD623AR by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Medical Imaging
Automotive
AD623AR Information
AD623AR by Analog Devices Inc is an Instrumentation Amplifier.
Instrumentation Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD623AR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 463 |
|
RFQ | ||
|
|
Bristol Electronics | 32 |
|
RFQ | ||
|
|
Bristol Electronics | 20 |
|
RFQ | ||
|
|
Quest Components | IC,INSTRUMENTATION AMPLIFIER,SINGLE,SOP,8PIN,PLASTIC | 357 |
|
$2.8380 / $5.1600 | Buy Now |
|
|
Quest Components | IC,INSTRUMENTATION AMPLIFIER,SINGLE,SOP,8PIN,PLASTIC | 19 |
|
$10.8098 / $12.1610 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ | |
|
|
Vyrian | Amplifiers | 643 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP INSTR 800KHZ RRO 8SOIC | 50000 |
|
$2.5001 / $3.2291 | Buy Now |
Part Details for AD623AR
AD623AR CAD Models
AD623AR Part Data Attributes
|
|
AD623AR
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD623AR
Analog Devices Inc
Single and Dual-Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | INSTRUMENTATION AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.0275 µA | |
| Bandwidth (3dB)-Nom | 0.8 MHz | |
| Common-mode Reject Ratio-Min | 70 dB | |
| Input Offset Current-Max (IIO) | 0.0025 µA | |
| Input Offset Voltage-Max | 350 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e0 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 240 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 0.3 V/us | |
| Supply Current-Max | 0.625 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Gain-Max | 1000 | |
| Voltage Gain-Min | 1 | |
| Width | 3.9 mm |
Alternate Parts for AD623AR
This table gives cross-reference parts and alternative options found for AD623AR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD623AR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD623ARZ-RL | Analog Devices Inc | $4.2682 | Single and Dual-Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier | AD623AR vs AD623ARZ-RL |
| AD623AR-REEL7 | Analog Devices Inc | Check for Price | Single and Dual-Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier | AD623AR vs AD623AR-REEL7 |
| AD623ARZ | Analog Devices Inc | $3.3353 | Single and Dual-Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier | AD623AR vs AD623ARZ |
| AD623ARZ-R7 | Analog Devices Inc | $3.5525 | Single and Dual-Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier | AD623AR vs AD623ARZ-R7 |
| AD623ARZ-REEL | Analog Devices Inc | Check for Price | INSTRUMENTATION AMPLIFIER, 350uV OFFSET-MAX, 0.8MHz BAND WIDTH, PDSO8, SOIC-8 | AD623AR vs AD623ARZ-REEL |
| AD623ARMZ | Analog Devices Inc | $4.0498 | Single and Dual-Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier | AD623AR vs AD623ARMZ |
| AD623ARM-REEL | Analog Devices Inc | Check for Price | IC INSTRUMENTATION AMPLIFIER, 650 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, PDSO8, MICRO, SOIC-8, Instrumentation Amplifier | AD623AR vs AD623ARM-REEL |
| AD623ARM | Analog Devices Inc | Check for Price | IC INSTRUMENTATION AMPLIFIER, 650 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, PDSO8, MICRO, SOIC-8, Instrumentation Amplifier | AD623AR vs AD623ARM |
| AD623ANZ | Analog Devices Inc | $5.3058 | Single and Dual-Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier | AD623AR vs AD623ANZ |
| AD623AN | Analog Devices Inc | Check for Price | IC INSTRUMENTATION AMPLIFIER, 350 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8, Instrumentation Amplifier | AD623AR vs AD623AN |
AD623AR Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the AD623AR is ±15V, but it's recommended to keep it within ±10V to ensure optimal performance and prevent damage to the device.
-
To ensure proper biasing for single-supply operation, connect the REF pin to a voltage divider that sets the reference voltage to mid-supply (VCC/2). This ensures that the output voltage is centered around mid-supply, allowing for maximum output swing.
-
For optimal performance, use a star-grounding technique, where all grounds are connected to a single point. Keep the input and output traces separate, and use a ground plane to minimize noise and electromagnetic interference (EMI).
-
Choose gain resistor values based on the desired gain and input impedance. Use the formula: Rg = (Rf * (G - 1)) / (Rin * G), where Rg is the gain resistor, Rf is the feedback resistor, G is the desired gain, and Rin is the input impedance.
-
The AD623AR's performance is affected by temperature, with changes in offset voltage, gain, and bandwidth. Ensure that the device is operated within the recommended temperature range (-40°C to 125°C) and consider temperature compensation techniques if necessary.
