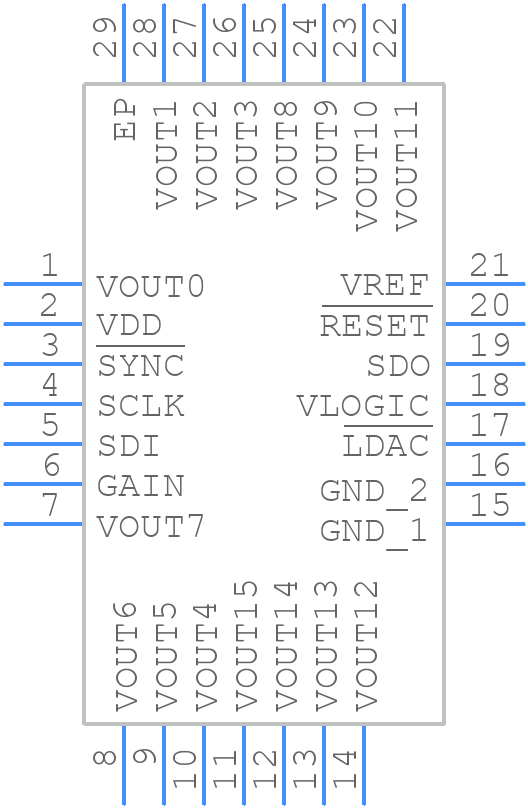

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5674RBCPZ-1 by Analog Devices Inc
Results Overview of AD5674RBCPZ-1 by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD5674RBCPZ-1 Information
AD5674RBCPZ-1 by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5674RBCPZ-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9253
|
Newark | Da Converter, 12Bit, Lfcsp-Ep, Resolution (Bits):12Bit, Sampling Rate:-, Data Interface:3 Wire, 4... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$14.5600 / $24.0600 | Buy Now |
|
DISTI #
505-AD5674RBCPZ-1-ND
|
DigiKey | 16-CH12-BITNANODAC+WITH2PPM/CREF Min Qty: 1 Lead time: 10 Weeks Container: Tray |
447 In Stock |
|
$14.5625 / $24.0600 | Buy Now |
|
DISTI #
584-AD5674RBCPZ-1
|
Mouser Electronics | Digital to Analog Converters - DAC 16-Channel, 12-Bit nanoDAC+ with 2 ppm/ C Voltage Reference Tempe... more RoHS: Compliant | 1914 |
|
$15.9500 / $24.2500 | Buy Now |
|
|
Analog Devices Inc | 16-Ch12-BITnanoDAC+with2ppm/Cr Package Multiple: 1 | 6677 |
|
$11.6500 / $24.0600 | Buy Now |
|
DISTI #
62189876
|
Verical | DAC 16-CH Segment 12-bit 28-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 42 Package Multiple: 42 | Americas - 6552 |
|
$14.6541 | Buy Now |
|
DISTI #
AD5674RBCPZ-1
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 42 | 0 |
|
$15.2400 / $16.2800 | Buy Now |
|
|
Win Source Electronics | 16-CH12-BITNANODAC+WITH2PPM/CREF / 12 Bit Digital to Analog Converter 16 28-LFCSP (4x4) | 3205 |
|
$18.5526 / $27.8289 | Buy Now |
Part Details for AD5674RBCPZ-1
AD5674RBCPZ-1 CAD Models
AD5674RBCPZ-1 Part Data Attributes
|
|
AD5674RBCPZ-1
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5674RBCPZ-1
Analog Devices Inc
16-Channel, 12-/16-Bit nanoDAC+ with 2 ppm/°C Voltage Reference Temperature Coefficient, SPI Interface
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | LFCSP-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | CP-28-9 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2019-11-01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | S-XQCC-N28 | |
| Length | 4 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC28,.16SQ,16 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Settling Time-Max | 8 µs | |
| Settling Time-Nom (tstl) | 6 µs | |
| Supply Current-Max | 4.2 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
AD5674RBCPZ-1 Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the analog and digital circuits are powered up in the correct order.
-
To ensure accurate voltage output, it is essential to use a high-precision voltage reference, such as the ADR435, and to follow proper PCB layout and grounding techniques to minimize noise and interference.
-
The maximum output current capability of the AD5674RBCPZ-1 is 10 mA per channel. Exceeding this limit can cause damage to the device.
-
