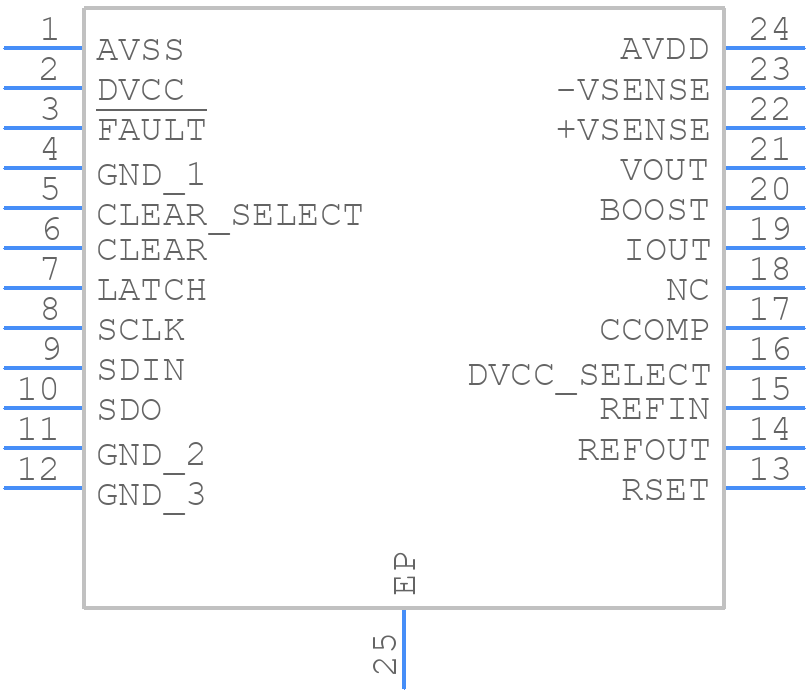

Part Symbol
-
Footprint
-

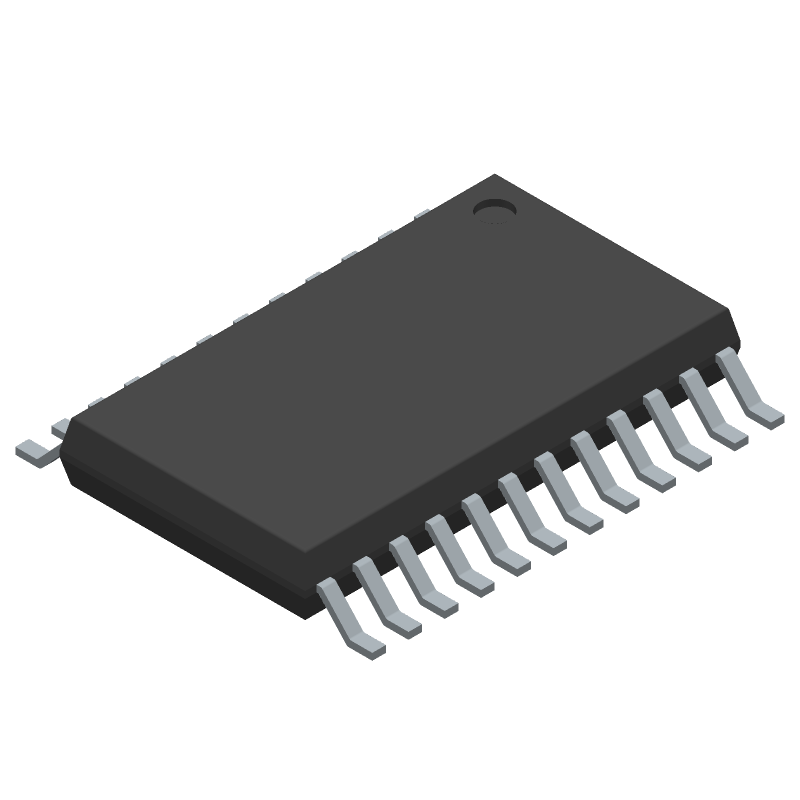

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5422AREZ-REEL by Analog Devices Inc
Results Overview of AD5422AREZ-REEL by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
AD5422AREZ-REEL Information
AD5422AREZ-REEL by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMX2325TMX-G | Rochester Electronics LLC | LMX2325 - RoHS - T/R, PLL Freq Synthesizer |
Price & Stock for AD5422AREZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78AK2399
|
Newark | D/A Converter, 16Bit, Tssop-Ep-24 Rohs Compliant: Yes |Analog Devices AD5422AREZ-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2085 |
|
$9.4800 / $16.0700 | Buy Now |
|
DISTI #
AD5422AREZ-REELCT-ND
|
DigiKey | IC DAC 16BIT V OR A-OUT 24TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2025 In Stock |
|
$9.4750 / $17.2900 | Buy Now |
|
DISTI #
584-AD5422AREZ-R
|
Mouser Electronics | Digital to Analog Converters - DAC 16 Bit V, I out DAC RoHS: Compliant | 10259 |
|
$9.4700 / $16.3700 | Buy Now |
|
|
Analog Devices Inc | 16 Bit V, I out DAC Min Qty: 1 Package Multiple: 2500 | 405 |
|
$6.7900 / $17.2900 | Buy Now |
|
DISTI #
AD5422AREZ-REEL
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 2500 | 0 |
|
$9.9100 | Buy Now |
|
|
Vyrian | Converters | 2768 |
|
RFQ | |
|
|
Win Source Electronics | Single Channel, 12-/16-Bit, Serial Input, Current Source and Voltage Output DACs | 2330 |
|
$10.5626 / $15.8438 | Buy Now |
Part Details for AD5422AREZ-REEL
AD5422AREZ-REEL CAD Models
AD5422AREZ-REEL Part Data Attributes
|
|
AD5422AREZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5422AREZ-REEL
Analog Devices Inc
Single Channel, 16-Bit, Current Source & Voltage Output DAC, HART Connectivity
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | RE-24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 10 V | |
| Analog Output Voltage-Min | -10 V | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e3 | |
| Length | 7.8 mm | |
| Linearity Error-Max (EL) | 0.008% | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Equivalence Code | TSSOP24,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Settling Time-Max | 25 µs | |
| Settling Time-Nom (tstl) | 32 µs | |
| Supply Voltage-Nom | 15 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for AD5422AREZ-REEL
This table gives cross-reference parts and alternative options found for AD5422AREZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD5422AREZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD5422AREZ | Analog Devices Inc | $10.3102 | Single Channel, 16-Bit, Current Source & Voltage Output DAC, HART Connectivity | AD5422AREZ-REEL vs AD5422AREZ |
AD5422AREZ-REEL Frequently Asked Questions (FAQ)
-
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and decouple the VREF pin with a 10uF capacitor.
-
To ensure accuracy, use a high-precision voltage reference, such as the ADR4520, and ensure that the input voltage is within the specified range. Also, use a low-noise, low-temperature-coefficient resistor for the feedback resistor (RFB) and a high-precision capacitor for the compensation capacitor (CCOMP).
-
The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin, and then the input voltage (VIN). This ensures that the internal biasing and voltage references are established before the input voltage is applied.
-
The thermal shutdown feature is designed to protect the device from overheating. If the device exceeds the maximum junction temperature (TJ), it will shut down. To handle this, ensure good thermal design practices, such as using a heat sink or thermal pad, and monitor the device temperature using the THERM pin.
-
A simple RC filter can be used to filter the output voltage. A 1uF capacitor in series with a 1kΩ resistor is a good starting point. However, the optimal filter values will depend on the specific application and noise requirements.
