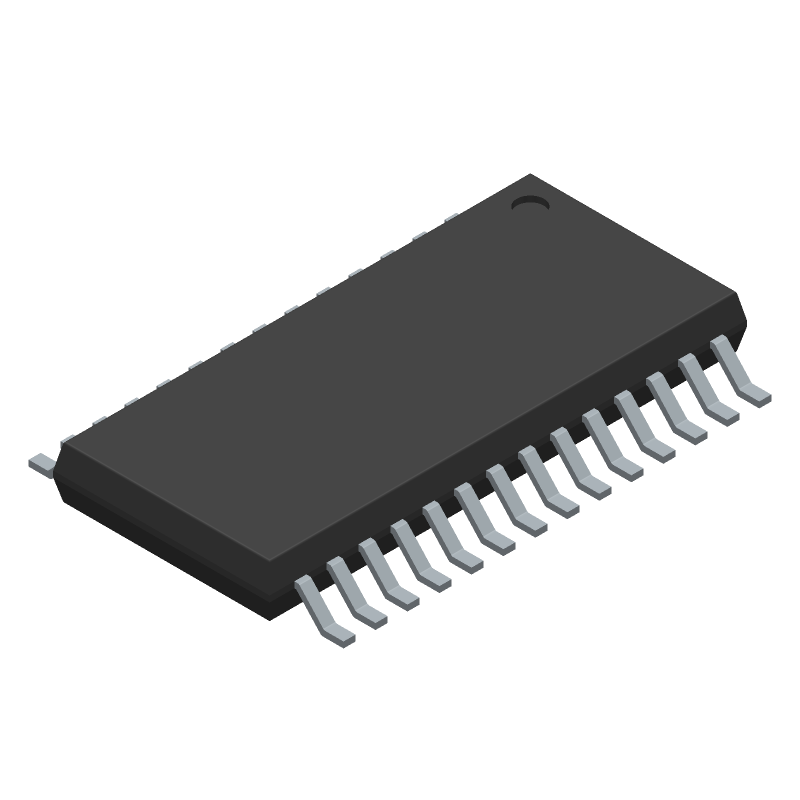

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5342BRUZ by Analog Devices Inc
Results Overview of AD5342BRUZ by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AD5342BRUZ Information
AD5342BRUZ by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5342BRUZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6444
|
Newark | Dac, 12Bit, Tssop-28, -40 To 105Deg C, Resolution (Bits):12Bit, Sampling Rate:-, Data Interface:P... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 92 |
|
$11.1700 / $14.5400 | Buy Now |
|
DISTI #
AD5342BRUZ-ND
|
DigiKey | IC DAC 12BIT V-OUT 28TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
228 In Stock |
|
$10.6125 / $18.8500 | Buy Now |
|
DISTI #
584-AD5342BRUZ
|
Mouser Electronics | Digital to Analog Converters - DAC 12 BIT, DUAL DAC I.C RoHS: Compliant | 150 |
|
$10.7000 / $15.1200 | Buy Now |
|
|
Analog Devices Inc | 12 BIT, DUAL DAC I.C Package Multiple: 50 | 546 |
|
$7.5100 / $18.8500 | Buy Now |
|
DISTI #
25630793
|
Verical | DAC 2-CH Resistor-String 12-bit 28-Pin TSSOP Tube RoHS: Compliant Min Qty: 50 Package Multiple: 50 | Americas - 500 |
|
$10.6792 | Buy Now |
|
DISTI #
76478327
|
Verical | DAC 2-CH Resistor-String 12-bit 28-Pin TSSOP Tube RoHS: Compliant Min Qty: 21 Package Multiple: 21 Date Code: 2242 | Americas - 21 |
|
$22.8017 | Buy Now |
|
|
Rochester Electronics | AD5342 - 2.5V to 5.5V, 230uA, Parallel Interface Dual Voltage-Output 12-Bit DAC RoHS: Compliant Status: Active Min Qty: 1 | 48 |
|
$8.9100 / $11.1400 | Buy Now |
|
DISTI #
AD5342BRUZ
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 50 | 0 |
|
$11.1000 / $11.8600 | Buy Now |
|
|
Vyrian | Converters | 25 |
|
RFQ |
Part Details for AD5342BRUZ
AD5342BRUZ CAD Models
AD5342BRUZ Part Data Attributes
|
|
AD5342BRUZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5342BRUZ
Analog Devices Inc
+2.5V to 5.5V, 230 µA Dual Rail-to-Rail Voltage Output 12-Bit DAC with Parallel Interface in 28-lead TSSOP
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SSOP | |
| Package Description | TSSOP-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | RU-28 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | PARALLEL, WORD | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 9.7 mm | |
| Linearity Error-Max (EL) | 0.39% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 2 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP28,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Settling Time-Max | 10 µs | |
| Settling Time-Nom (tstl) | 8 µs | |
| Supply Current-Max | 0.45 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
