Signal Circuits / Other Signal Circuits / A5303SLETR-T
Datasheets
A5303SLETR-T by: Allegro MicroSystems LLC

Analog Circuit, 1 Func, BICMOS, PDSO20, 1.20 MM HEIGHT, 0.65 MM PITCH, ROHS COMPLIANT, MO-153AC,TSSOP-20

Part Details for A5303SLETR-T by Allegro MicroSystems LLC

Results Overview of A5303SLETR-T by Allegro MicroSystems LLC

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

A5303SLETR-T Information

A5303SLETR-T by Allegro MicroSystems LLC is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Price & Stock for A5303SLETR-T

Part # Distributor Description Stock Price Buy
DISTI # 250-A5303SLETR-T
Mouser Electronics Smoke Detectors SMOKE DETECTOR IC RoHS: Compliant 0
Order Now
DISTI # 85963976
Verical Sensor and Detector Interface 5.5V 0.2mA 20-Pin TSSOP T/R RoHS: Compliant Min Qty: 292 Package Multiple: 1 Date Code: 2201 Americas - 2930
  • 292 $1.2875
$1.2875 Buy Now
DISTI # 85961627
Verical Sensor and Detector Interface 5.5V 0.2mA 20-Pin TSSOP T/R RoHS: Compliant Min Qty: 292 Package Multiple: 1 Date Code: 2301 Americas - 2350
  • 292 $1.2875
$1.2875 Buy Now
Rochester Electronics Smoke Detector RoHS: Compliant Status: Active Min Qty: 1 5280
  • 100 $1.0300
  • 500 $0.9299
  • 1,000 $0.8576
  • 10,000 $0.7646
  • 100,000 $0.6406
$0.6406 / $1.0300 Buy Now
DISTI # A5303SLETR-T
Avnet Silica Photoelectric Smoke Detector Temporal Tone 20Pin TSSOP TR (Alt: A5303SLETR-T) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 22 Weeks, 0 Days Silica - 0
Buy Now

Part Details for A5303SLETR-T

A5303SLETR-T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

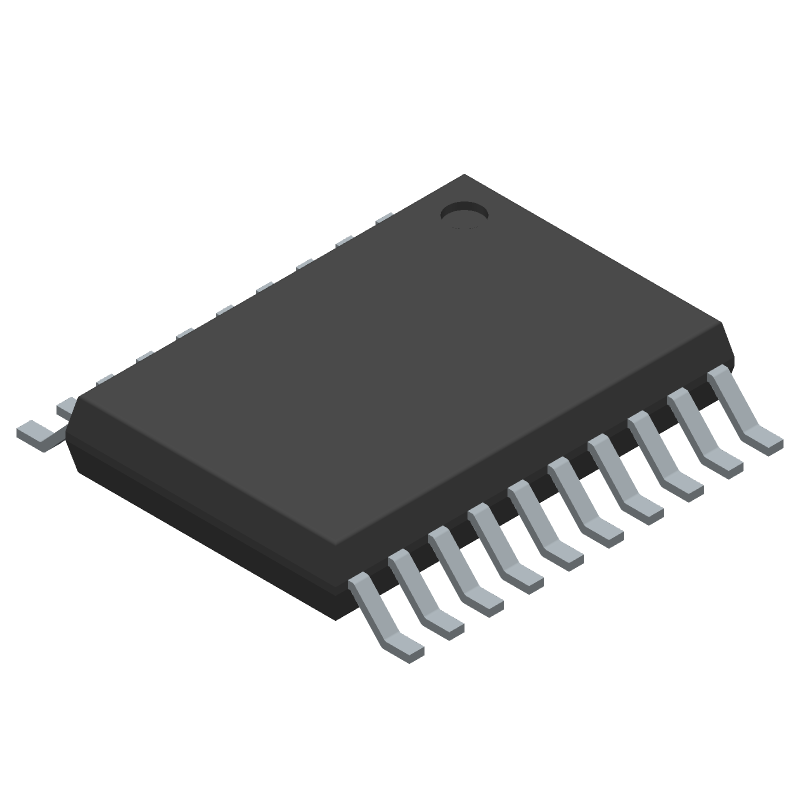

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

A5303SLETR-T Part Data Attributes

Parametric Data
A5303SLETR-T Allegro MicroSystems LLC
Buy Now Datasheet
Compare Parts:
A5303SLETR-T Allegro MicroSystems LLC Analog Circuit, 1 Func, BICMOS, PDSO20, 1.20 MM HEIGHT, 0.65 MM PITCH, ROHS COMPLIANT, MO-153AC,TSSOP-20
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer ALLEGRO MICROSYSTEMS LLC
Part Package Code TSSOP
Package Description 1.20 MM HEIGHT, 0.65 MM PITCH, ROHS COMPLIANT, MO-153AC,TSSOP-20
Pin Count 20
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Samacsys Manufacturer Allegro Microsystems
Analog IC - Other Type ANALOG CIRCUIT
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 6.5 mm
Moisture Sensitivity Level 2
Number of Functions 1
Number of Terminals 20
Operating Temperature-Max 85 °C
Operating Temperature-Min -20 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2.3 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology BICMOS
Temperature Grade OTHER
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 4.4 mm

A5303SLETR-T Related Parts

A5303SLETR-T Frequently Asked Questions (FAQ)

  • A good PCB layout for the A5303SLETR-T involves keeping the sense lines (VS, VM, and VG) as short as possible, using a ground plane, and minimizing the distance between the IC and the sense resistors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.

  • The choice of sense resistors depends on the current range and the desired accuracy. A good starting point is to use resistors with a value between 0.01 ohms and 0.1 ohms. The datasheet provides a formula to calculate the sense resistor value based on the desired current range and the IC's internal resistance.

  • The A5303SLETR-T has an operating temperature range of -40°C to 150°C. However, the device's accuracy and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance.

  • To minimize EMI, use a shielded cable for the sense lines, keep the sense lines away from noise sources, and use a common-mode choke or ferrite bead on the sense lines. Additionally, ensure that the PCB layout is designed to minimize radiation and susceptibility to EMI.

  • The recommended power-up sequence is to apply the power supply voltage (VCC) first, followed by the input voltage (VIN). This ensures that the internal voltage regulator is powered up before the input voltage is applied.
