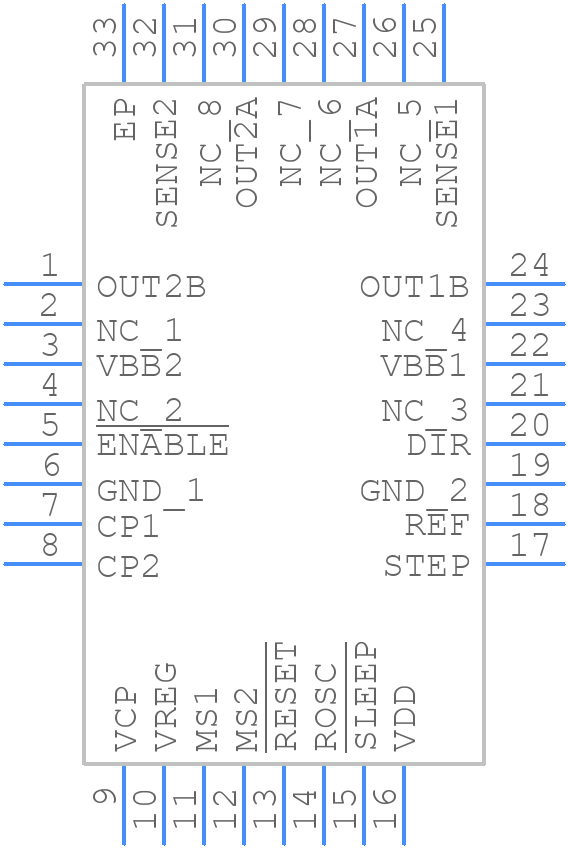

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for A4982SETTR-T by Allegro MicroSystems LLC
Results Overview of A4982SETTR-T by Allegro MicroSystems LLC
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
A4982SETTR-T Information
A4982SETTR-T by Allegro MicroSystems LLC is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for A4982SETTR-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
620-1340-1-ND
|
DigiKey | IC MTR DRVR BIPOLAR 3-5.5V 32QFN Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
27443 In Stock |
|
$1.5000 / $3.1000 | Buy Now |
|
DISTI #
250-A4982SETTR-T
|
Mouser Electronics | Motor / Motion / Ignition Controllers & Drivers 2A DUAL FULL BRIDGE 1/16 MICROSTEP DRIVER w/OCP RoHS: Compliant | 7715 |
|
$1.5000 / $4.4200 | Buy Now |
|
|
Bristol Electronics | 80 |
|
RFQ | ||
|
|
Quest Components | STEPPER MOTOR CONTROLLER, 2A, NMOS | 64 |
|
$5.5500 / $9.0000 | Buy Now |
|
DISTI #
A4982SETTR-T
|
Avnet Silica | Microstepping Motor Driver 32Pin QFN EP TR (Alt: A4982SETTR-T) RoHS: Compliant Min Qty: 9000 Package Multiple: 9000 Lead time: 12 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Win Source Electronics | IC MOTOR DRIVER PAR 32QFN | 11150 |
|
$2.3803 / $3.5704 | Buy Now |
Part Details for A4982SETTR-T
A4982SETTR-T CAD Models
A4982SETTR-T Part Data Attributes
|
|
A4982SETTR-T
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
A4982SETTR-T
Allegro MicroSystems LLC
Stepper Motor Controller, 2A, NMOS, 5 X 5 MM, 0.90 MM HEIGHT, LEAD FREE, MO-220VHHD-6, QFN-32
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALLEGRO MICROSYSTEMS LLC | |
| Part Package Code | QFN | |
| Package Description | 5 X 5 MM, 0.90 MM HEIGHT, LEAD FREE, MO-220VHHD-6, QFN-32 | |
| Pin Count | 32 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Allegro Microsystems | |
| Analog IC - Other Type | STEPPER MOTOR CONTROLLER | |
| JESD-30 Code | S-XQCC-N32 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Output Current-Max | 2 A | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32,.2SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max (Isup) | 8 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | NMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 5 mm |
A4982SETTR-T Frequently Asked Questions (FAQ)
-
The A4982SETTR-T has an operating temperature range of -20°C to 85°C.
-
The R_sense value can be calculated using the formula: R_sense = 0.05 / (I_trip - I_run), where I_trip is the desired trip current and I_run is the running current.
-
The VREG pin is used to connect an external voltage regulator to power the internal logic and gate drivers of the A4982SETTR-T.
-
To configure the A4982SETTR-T for microstepping mode, connect the MS1, MS2, and MS3 pins to the desired logic levels according to the microstepping mode table in the datasheet.
-
The A4982SETTR-T has a maximum output current rating of 2A per phase.
