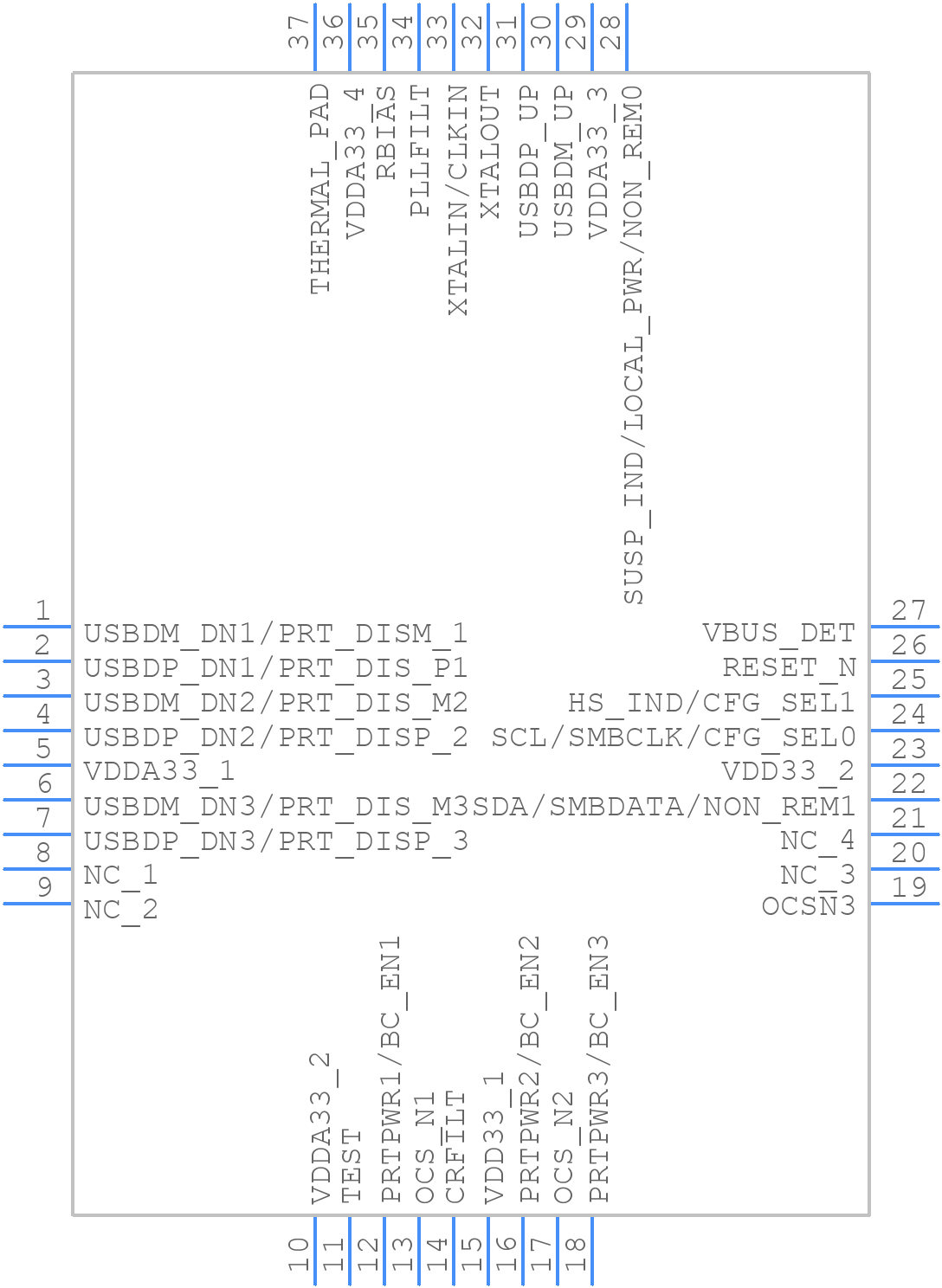

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for USB2513BI-AEZG by Microchip Technology Inc
Overview of USB2513BI-AEZG by Microchip Technology Inc
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Entertainment and Gaming
Price & Stock for USB2513BI-AEZG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
12X8837
|
Newark | Usb Interface, Usb Hub Controller, Usb 2.0, 3 V, 3.6 V, Qfn, 36 Rohs Compliant: Yes |Microchip USB2513BI-AEZG Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2124 |
|
$3.1800 / $4.0900 | Buy Now |
|
DISTI #
638-1100-ND
|
DigiKey | IC USB 2.0 3PORT HUB CTLR 36QFN Min Qty: 1 Lead time: 7 Weeks Container: Tray |
17634 In Stock |
|
$3.0600 / $4.0400 | Buy Now |
|
DISTI #
USB2513BI-AEZG
|
Avnet Americas | USB Interface, USB 2.0, 3 V to 3.6 V, 36 Pins, QFN-EP - Trays (Alt: USB2513BI-AEZG) RoHS: Compliant Min Qty: 490 Package Multiple: 490 Lead time: 6 Weeks, 0 Days Container: Tray | 0 |
|
$3.0600 / $4.0400 | Buy Now |
|
DISTI #
12X8837
|
Avnet Americas | USB Interface, USB 2.0, 3 V to 3.6 V, 36 Pins, QFN-EP - Bulk (Alt: 12X8837) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 32 Weeks, 4 Days Container: Bulk | 0 |
|
$3.1800 / $4.2000 | Buy Now |
|
DISTI #
886-USB2513BI-AEZG
|
Mouser Electronics | USB Interface IC USB2.0 HIGH SPEED 3-Port Hub Controllr RoHS: Compliant | 24228 |
|
$2.9300 / $3.9100 | Buy Now |
|
DISTI #
USB2513BI-AEZG
|
Microchip Technology Inc | Two Port USB 2.0 Hi-Speed Hub Controller, Projected EOL: 2034-06-30 RoHS: Compliant pbFree: Yes |
10780 Alternates Available |
|
$2.9300 / $4.0400 | Buy Now |
|
DISTI #
70470315
|
RS | USB 2.0 Hi-Speed Hub Controller QFN36EP | Microchip Technology Inc. USB2513BI-AEZG RoHS: Not Compliant Min Qty: 490 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$3.4200 / $4.0200 | RFQ |
|
|
Future Electronics | USB2412 Series 2-Port USB 2.0 Hi-Speed Hub Controller - VQFN-36 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Container: Bulk | 0Bulk |
|
$3.6600 / $4.2400 | Buy Now |
|
|
Onlinecomponents.com | Low/Full/High Speed Compatible 3 Port Hub - USB 2.0 - 3.3V - 36-Pin SQFN - Tray RoHS: Compliant |
3139 In Stock 10290 Factory Stock |
|
$2.6200 / $3.9200 | Buy Now |
|
|
Bristol Electronics | 3 |
|
RFQ |
Part Details for USB2513BI-AEZG
USB2513BI-AEZG CAD Models
USB2513BI-AEZG Part Data Attributes:
|
|
USB2513BI-AEZG
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
USB2513BI-AEZG
Microchip Technology Inc
UNIVERSAL SERIAL BUS CONTROLLER, QCC36, 6 X 6 MM, 0.50 MM PITCH, ROHS COMPLIANT, QFN-36
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | QFN | |
| Package Description | QFN-36 | |
| Pin Count | 36 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 32 Weeks, 4 Days | |
| Samacsys Manufacturer | Microchip | |
| Bus Compatibility | I2C; SMBUS; USB | |
| Clock Frequency-Max | 24 MHz | |
| JESD-30 Code | S-PQCC-N36 | |
| JESD-609 Code | e3 | |
| Length | 6 mm | |
| Number of Terminals | 36 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC36,.24SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 6 mm | |
| uPs/uCs/Peripheral ICs Type | BUS CONTROLLER, UNIVERSAL SERIAL BUS |
