Microcontrollers and Processors / Microcontrollers / STM32F103R6T6A
Datasheets
STM32F103R6T6A by: STMicroelectronics

Mainstream Performance line, Arm Cortex-M3 MCU with 32 Kbytes Clash, 72 MHz CPU, motor control, USB and CAN

Part Details for STM32F103R6T6A by STMicroelectronics

Overview of STM32F103R6T6A by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

Price & Stock for STM32F103R6T6A

Part # Distributor Description Stock Price Buy
DISTI # 497-11521-ND
DigiKey IC MCU 32BIT 32KB FLASH 64LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray 147
In Stock
  • 1 $5.9100
  • 10 $4.5260
  • 25 $4.1808
  • 160 $3.7031
  • 320 $3.5795
  • 480 $3.5176
  • 960 $3.4269
  • 2,400 $3.3311
$3.3311 / $5.9100 Buy Now
DISTI # STM32F103R6T6A
Avnet Americas MCU 32-bit STM32F ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 64-Pin LQFP Tray - Trays (Alt: STM32F103R6T6A) RoHS: Compliant Min Qty: 960 Package Multiple: 960 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 960 $4.6033
  • 1,920 $3.0044
  • 3,840 $2.9682
  • 5,760 $2.9329
  • 7,680 $2.8984
$2.8984 / $4.6033 Buy Now
DISTI # 511-STM32F103R6T6A
Mouser Electronics ARM Microcontrollers - MCU 32BIT Cortex M3 L/D PERF LN 64 PIN 32KB RoHS: Compliant 1275
  • 1 $6.5900
  • 10 $5.6000
  • 100 $4.8600
  • 250 $4.2200
  • 960 $3.5500
$3.5500 / $6.5900 Buy Now
STMicroelectronics Mainstream Performance line, Arm Cortex-M3 MCU with 32 Kbytes Clash, 72 MHz CPU, motor control, USB and CAN RoHS: Compliant Min Qty: 1 1275
  • 1 $5.7900
  • 10 $4.1100
  • 100 $3.6400
  • 250 $3.6400
  • 500 $3.6400
$3.6400 / $5.7900 Buy Now
Future Electronics STM32F Series 32 KB Flash 10 KB RAM ARM Based 32-Bit Microcontroller - LQFP-64 RoHS: Compliant pbFree: Yes Min Qty: 960 Package Multiple: 160 Lead time: 13 Weeks Container: Tray 0
Tray
  • 160 $3.1000
  • 320 $3.0500
  • 480 $3.0200
  • 640 $2.9900
  • 800 $2.9300
$2.9300 / $3.1000 Buy Now
DISTI # 82087317
Verical MCU 32-bit ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2347 Americas - 1096
  • 2 $5.3185
  • 10 $4.2499
  • 25 $4.0081
  • 160 $3.5225
  • 320 $3.5112
  • 480 $3.4590
  • 960 $3.2541
  • 2,400 $3.0839
$3.0839 / $5.3185 Buy Now
DISTI # STM32F103R6T6A
TME IC: STM32 ARM microcontroller, 72MHz, LQFP64, 2÷3.6VDC, -40÷85°C Min Qty: 1 0
  • 1 $6.0800
  • 10 $5.1900
  • 100 $4.5000
  • 160 $4.3600
  • 320 $3.9300
  • 480 $3.7800
  • 960 $3.2800
  • 2,400 $3.1100
$3.1100 / $6.0800 RFQ
DISTI # STM32F103R6T6A
Avnet Silica MCU 32-bit STM32F ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 64-Pin LQFP Tray (Alt: STM32F103R6T6A) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 14 Weeks, 0 Days Silica - 160
Buy Now
Chip-Germany GmbH   RoHS: Not Compliant 504
RFQ
DISTI # STM32F103R6T6A
EBV Elektronik MCU 32-bit STM32F ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 64-Pin LQFP Tray (Alt: STM32F103R6T6A) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC MCU 32BIT 32KB FLASH 64LQFP 8400
  • 11 $4.9686
  • 25 $4.0768
  • 38 $3.9494
  • 53 $3.8220
  • 68 $3.6946
  • 91 $3.3124
$3.3124 / $4.9686 Buy Now

Part Details for STM32F103R6T6A

STM32F103R6T6A CAD Models

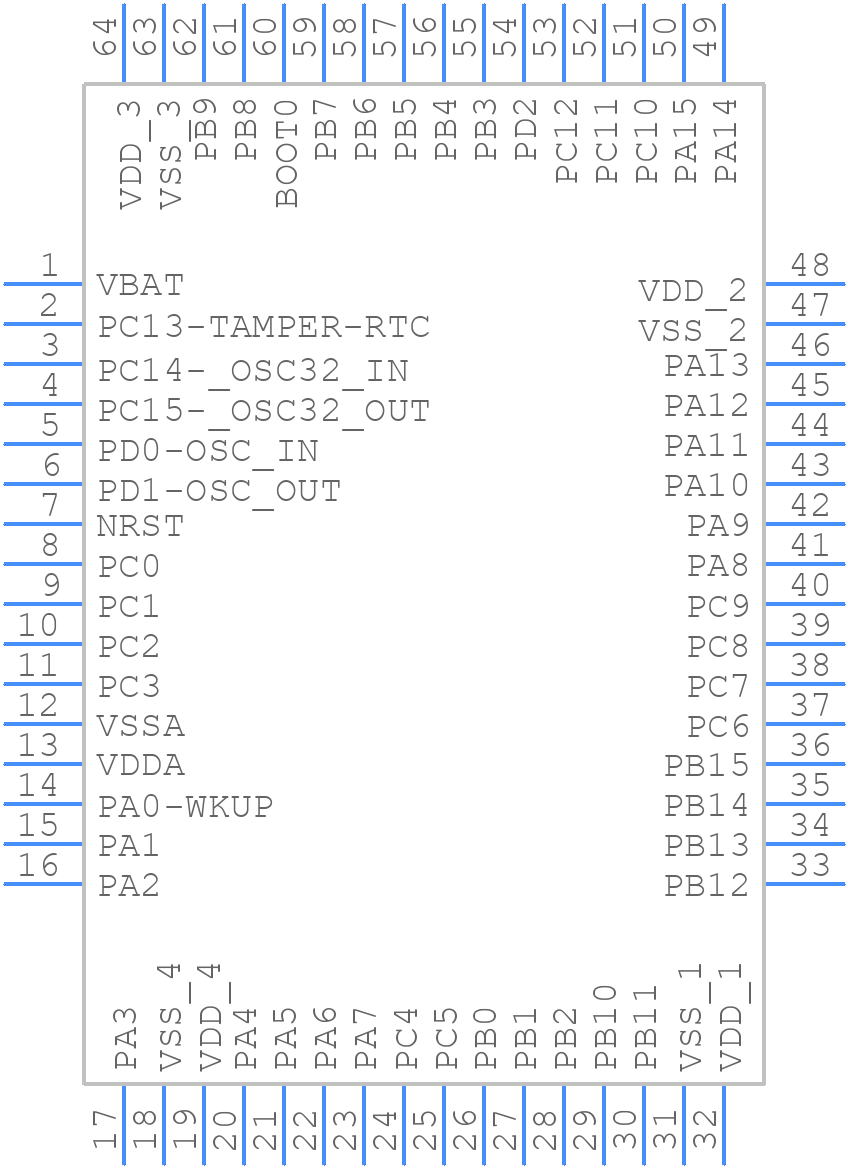

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F103R6T6A Part Data Attributes

Parametric Data
STM32F103R6T6A STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F103R6T6A STMicroelectronics Mainstream Performance line, Arm Cortex-M3 MCU with 32 Kbytes Clash, 72 MHz CPU, motor control, USB and CAN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Pin Count 64
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan NO
CPU Family CORTEX-M3
Clock Frequency-Max 16 MHz
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQFP-G64
JESD-609 Code e4
Length 10 mm
Moisture Sensitivity Level 3
Number of I/O Lines 51
Number of Terminals 64
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape SQUARE
Package Style FLATPACK
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 10240
ROM (words) 32768
ROM Programmability FLASH
Speed 72 MHz
Supply Current-Max 45 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 10 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F103R6T6A

This table gives cross-reference parts and alternative options found for STM32F103R6T6A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F103R6T6A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F103R6T7AXXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CMOS,QFP,64PIN,PLASTIC STM32F103R6T6A vs STM32F103R6T7AXXXTR
STM32F103R6T7ATR STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, ROHS COMPLIANT, LQFP-64 STM32F103R6T6A vs STM32F103R6T7ATR
STM32F103R6T7 STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CMOS,QFP,64PIN,PLASTIC STM32F103R6T6A vs STM32F103R6T7
STM32F103R6T7XXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CMOS,QFP,64PIN,PLASTIC STM32F103R6T6A vs STM32F103R6T7XXXTR
STM32F103R6T6AXXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CMOS,QFP,64PIN,PLASTIC STM32F103R6T6A vs STM32F103R6T6AXXXTR
Part Number Manufacturer Composite Price Description Compare
STM32F103R6T7XXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, ROHS COMPLIANT, LQFP-64 STM32F103R6T6A vs STM32F103R6T7XXX
STM32F103R6T7A STMicroelectronics Check for Price Mainstream Performance line, Arm Cortex-M3 MCU with 32 Kbytes Clash, 72 MHz CPU, motor control, USB and CAN STM32F103R6T6A vs STM32F103R6T7A
STM32F103R6T7AXXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, ROHS COMPLIANT, LQFP-64 STM32F103R6T6A vs STM32F103R6T7AXXX
STM32F103R6T6XXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, ROHS COMPLIANT, LQFP-64 STM32F103R6T6A vs STM32F103R6T6XXX
STM32F103R6T6AXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-64 STM32F103R6T6A vs STM32F103R6T6AXX
STM32F103R6T7TR STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, ROHS COMPLIANT, LQFP-64 STM32F103R6T6A vs STM32F103R6T7TR
STM32F103R6T6TR STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, ROHS COMPLIANT, LQFP-64 STM32F103R6T6A vs STM32F103R6T6TR
STM32F103R6T7AXX STMicroelectronics Check for Price 32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-64 STM32F103R6T6A vs STM32F103R6T7AXX
STM32F103R6T6ATR STMicroelectronics Check for Price Mainstream Performance line, Arm Cortex-M3 MCU with 32 Kbytes Clash, 72 MHz CPU, motor control, USB and CAN STM32F103R6T6A vs STM32F103R6T6ATR
