Connectors RF SMB/SSMB Connectors R114426000

R114426000
Radiall
Description: RF SMB Connector, 1 Contact(s), Male, Panel Mount, Board Mount, Solder Terminal, Detent, Receptacle,

Overview of R114426000 by Radiall

Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
  • Distributor Offerings: ( 8 listings )
  • Number of FFF Equivalents: ( 0 replacements )
  • CAD Models: ( Available )
  • Number of Functional Equivalents: ( 0 options )
  • Part Data Attributes ( Available )
  • Reference Designs: ( Not Available )
Where used in Applications: Consumer Electronics Space Technology Aerospace and Defense Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

Price & Stock for R114426000 by Radiall

Part # Manufacturer Description Stock Price Buy
DISTI # 14J7836
Newark Rf Coaxial, Smb, Straight Jack, 50 Ohm, Connector Type:Smb Coaxial, Connector Body Style:Straight Jack, Coaxial Termination:Solder, Impedance:50Ohm, Coaxial Cable Types:-, Contact Material:Brass, Contact Plating:Gold Plated Contacts Rohs Compliant: Yes |Radiall R114426000 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 2164
  • 1 $5.2500
  • 50 $4.3900
  • 100 $4.0700
  • 250 $3.7900
  • 500 $3.5800
$3.5800 / $5.2500 Buy Now
DISTI # 26AC3248
Newark Smb M Str Pcb C100 Rohs Compliant: Yes |Radiall R114426000 RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $6.0500
$6.0500 Buy Now
DISTI # 2201-R114426000-ND
DigiKey SMB M STR PCB C100 Min Qty: 1 Lead time: 10 Weeks Container: Bulk 1084
In Stock
  • 1 $9.4600
  • 10 $7.2560
  • 25 $6.5524
  • 50 $6.0760
  • 100 $5.6436
  • 250 $5.1332
  • 500 $4.7892
  • 1,000 $4.4778
$4.4778 / $9.4600 Buy Now
DISTI # R114426000
Avnet Americas SMB / STRAIGHT JACK RECEPTACLE FOR PCB SOLDER LEGS - Bulk (Alt: R114426000) RoHS: Compliant Min Qty: 100 Package Multiple: 1 Lead time: 7 Weeks, 1 Days Container: Bulk 121
  • 100 $6.0480
  • 110 $5.7120
  • 210 $5.3760
  • 500 $4.8300
  • 1,000 $4.2560
$4.2560 / $6.0480 Buy Now
DISTI # 14J7836
Avnet Americas SMB / STRAIGHT JACK RECEPTACLE FOR PCB SOLDER LEGS - Bulk (Alt: 14J7836) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 125 Partner Stock
  • 1 $5.2500
  • 50 $4.3900
  • 100 $4.0700
  • 250 $3.7900
  • 500 $3.5800
$3.5800 / $5.2500 Buy Now
DISTI # 501-R114426000
Mouser Electronics RF Connectors / Coaxial Connectors SMB / STRAIGHT JACK RECEPTACLE FOR PCB SOLDER LEGS RoHS: Compliant 475
  • 1 $8.0800
  • 10 $6.9300
  • 50 $6.7500
  • 100 $6.3800
  • 200 $5.7300
  • 500 $5.3700
  • 1,000 $4.4700
$4.4700 / $8.0800 Buy Now
DISTI # R114426000
Richardson RFPD RF COAXIAL BOARD MOUNT CONNECTOR RoHS: Compliant Min Qty: 100 0
  • 100 $4.2500
$4.2500 Buy Now
DISTI # C1S617700009484
Chip1Stop Conn SMB RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Over Nickel RoHS: Compliant 23485
  • 1 $6.1600
  • 10 $4.4000
  • 25 $4.3100
  • 50 $3.1100
  • 100 $3.1000
  • 250 $2.7900
  • 500 $2.7600
  • 1,000 $2.7200
  • 2,500 $2.6800
  • 5,000 $2.6000
$2.6000 / $6.1600 Buy Now

CAD Models for R114426000 by Radiall
You need to Sign In or Sign Up to download CAD models.

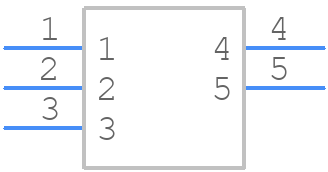

  • Part Symbol
    Part Symbol

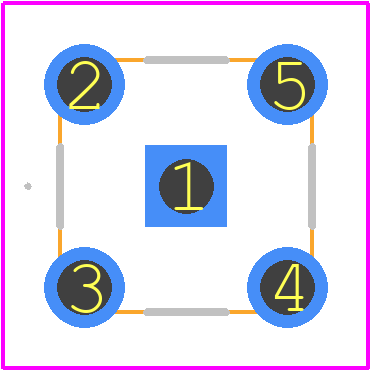

  • Footprint
    footprint
  • 3D Model
    3D Model
25 Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

Part Data Attributes for R114426000 by Radiall
Parametric Data

R114426000
Radiall
Buy Now
-
-
Pbfree Code
Yes
Rohs Code
Yes
Part Life Cycle Code
Active
Ihs Manufacturer
RADIALL S A
Reach Compliance Code
not_compliant
Samacsys Manufacturer
Radiall
Additional Feature
STANDARDS: MIL-C-39012; IEC 169-10, CAPTIVE CENTER CONTACT
Body Breadth
0.248 inch
Body Depth
0.248 inch
Body Diameter
0.291 inch
Body/Shell Style
RECEPTACLE
Characteristic Impedance
50 Ω
Connector Type
RF SMB CONNECTOR
Contact Finish Mating
NOT SPECIFIED
Contact Finish Termination
Gold (Au)
Contact Gender
MALE
Contact Material
NOT SPECIFIED
Contact Resistance
8 mΩ
Contact Style
COAX
Coupling Type
SNAP
DIN Conformance
NO
Dielectric Withstanding Voltage
1400VAC V
Durability
500 Cycles
Filter Feature
NO
IEC Conformance
NO
Insertion Loss
0.06 dB
Insulation Resistance
1000000000 Ω
Insulator Material
POLYTETRAFLUOROETHYLENE
JESD-609 Code
e4
MIL Conformance
NO
Mating Information
MULTIPLE MATING PARTS AVAILABLE
Mounting Option 1
DETENT
Mounting Style
STRAIGHT
Mounting Type
BOARD AND PANEL
Number of Ports
1
Operating Frequency-Max
4 GHz
Operating Temperature-Max
165 °C
Operating Temperature-Min
-65 °C
Option
GENERAL PURPOSE
Panel Mount
YES
Shell Finish
GOLD
Shell Material
BRASS
Termination Type
SOLDER
Total Number of Contacts
1
VSWR
1.08
