NLV7SZ97DFT2G by: onsemi

Flexible Choice Logic (9 Configurable Functions), 3000-REEL, Automotive Qualified

Part Details for NLV7SZ97DFT2G by onsemi

Results Overview of NLV7SZ97DFT2G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

NLV7SZ97DFT2G Information

NLV7SZ97DFT2G by onsemi is an Other Logic IC.
Other Logic ICs are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for NLV7SZ97DFT2G

Part # Distributor Description Stock Price Buy
DISTI # 51Y0555
Newark Conf Multiple Func Gate, 3 I/P, 125Deg C, Logic Function:Configurable Multiple Function Gate, No. Of Elements:Single, No. Of Inputs:3Inputs, No. Of Pins:6Pins, Ic Case/Package:Sc-88, Product Range:Nl7Sz97, Logic Ic Family:Nl7Sz Rohs Compliant: Yes |Onsemi NLV7SZ97DFT2G RoHS: Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 6,000 $0.0600
  • 12,000 $0.0530
  • 18,000 $0.0490
  • 30,000 $0.0450
$0.0450 / $0.0600 Buy Now
DISTI # 79015283
Verical Multi Function Gate 1-Element 2-IN CMOS Automotive AEC-Q100 6-Pin SC-88 T/R RoHS: Compliant Min Qty: 121 Package Multiple: 1 Date Code: 2338 Americas - 8800
  • 120 $0.1798
  • 3,000 $0.0577
  • 6,000 $0.0513
  • 9,000 $0.0473
  • 15,000 $0.0439
  • 21,000 $0.0421
  • 30,000 $0.0400
$0.0400 / $0.1798 Buy Now
Flip Electronics Stock, ship today 48000
RFQ

Part Details for NLV7SZ97DFT2G

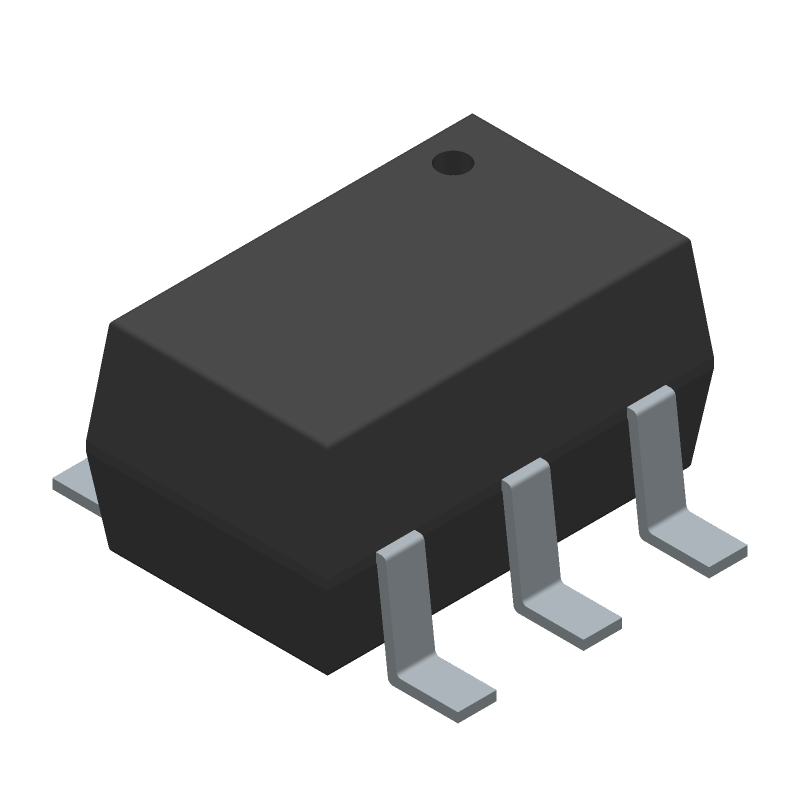

NLV7SZ97DFT2G CAD Models
