Amplifier Circuits / Operational Amplifiers / MCP602-I/ST
Datasheets
MCP602-I/ST by:

DUAL OP-AMP, 3000 uV OFFSET-MAX, 2.8 MHz BAND WIDTH, PDSO8, 4.40 MM, PLASTIC, MO-153, TSSOP-8

Part Details for MCP602-I/ST by Microchip Technology Inc

Overview of MCP602-I/ST by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

Price & Stock for MCP602-I/ST

Part # Distributor Description Stock Price Buy
DISTI # 12T7761
Newark Operational Amplifier, Dual, 2.8 Mhz, 2, 2.3 V/ S, 2.7V To 6V, Tssop, 8 Rohs Compliant: Yes |Microchip MCP602-I/ST RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 1856
  • 1 $0.7700
  • 10 $0.7070
  • 25 $0.6450
  • 50 $0.6140
  • 100 $0.5820
$0.5820 / $0.7700 Buy Now
DISTI # MCP602-I/ST-ND
DigiKey IC CMOS 2 CIRCUIT 8TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Tube 374
In Stock
  • 1 $0.7400
  • 25 $0.6200
  • 100 $0.5600
$0.5600 / $0.7400 Buy Now
DISTI # MCP602-I/ST
Avnet Americas OP Amp Dual GP R-R O/P 6V 8-Pin TSSOP Tube - Rail/Tube (Alt: MCP602-I/ST) RoHS: Compliant Min Qty: 600 Package Multiple: 100 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 1 $0.7400
  • 25 $0.6200
  • 100 $0.5600
$0.5600 / $0.7400 Buy Now
DISTI # 579-MCP602-I/ST
Mouser Electronics Operational Amplifiers - Op Amps Dual 2.7V RoHS: Compliant 881
  • 1 $0.7400
  • 100 $0.6200
  • 500 $0.5600
$0.5600 / $0.7400 Buy Now
DISTI # MCP602-I/ST
Microchip Technology Inc Dual 2.7V Op Amp, I temp, Projected EOL: 2034-05-16 RoHS: Compliant pbFree: Yes 9025

Alternates Available
  • 1 $0.7400
  • 25 $0.6200
  • 100 $0.5600
$0.5600 / $0.7400 Buy Now
DISTI # 70451769
RS Dual 2.7V Op Amp, I temp8 TSSOP 4.4mm TUBE | Microchip Technology Inc. MCP602-I/ST RoHS: Not Compliant Min Qty: 700 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk 0
  • 700 $0.7100
$0.7100 RFQ
Future Electronics dual op am 2.7 v, I temp RoHS: Compliant pbFree: Yes Min Qty: 700 Package Multiple: 100 Lead time: 6 Weeks Container: Tube 0
Tube
  • 100 $0.7550
  • 300 $0.7250
  • 500 $0.7100
  • 1,500 $0.6850
  • 2,500 $0.6600
$0.6600 / $0.7550 Buy Now
Onlinecomponents.com Op Amp Dual Low Power Amplifier R-R O/P 6V Automotive 8-Pin TSSOP Tube RoHS: Compliant 1000 In Stock
8900 Factory Stock
  • 100 $0.5917
  • 300 $0.5465
  • 1,000 $0.5383
  • 2,500 $0.5081
  • 5,000 $0.5005
  • 7,500 $0.4930
  • 10,000 $0.4856
  • 15,000 $0.4783
$0.4783 / $0.5917 Buy Now
DISTI # 70317974
Verical Op Amp Dual Low Power Amplifier R-R O/P 6V Automotive AEC-Q100 8-Pin TSSOP Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2330 Americas - 1000
  • 100 $0.7692
  • 300 $0.7105
  • 1,000 $0.6998
  • 2,500 $0.6605
  • 5,000 $0.6507
$0.6507 / $0.7692 Buy Now
DISTI # MCP602-I/ST
TME IC: operational amplifier, 2.8MHz, Ch: 2, TSSOP8, 2.7÷6VDC, tube Min Qty: 1 0
  • 1 $1.0500
  • 5 $0.9000
  • 25 $0.8200
  • 100 $0.8000
$0.8000 / $1.0500 RFQ
NAC Dual 2.7V Op Amp, I temp - Package: 8 TSSOP 4.4mm TUBE RoHS: Compliant Min Qty: 600 Package Multiple: 100 Container: Tube 0
  • 1 $0.7500
  • 100 $0.6800
  • 500 $0.6300
  • 1,000 $0.6100
$0.6100 / $0.7500 Buy Now
DISTI # MCP602-I/ST
Avnet Silica OP Amp Dual GP R-R O/P 6V 8-Pin TSSOP Tube (Alt: MCP602-I/ST) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MCP602-I/ST
EBV Elektronik OP Amp Dual GP R-R O/P 6V 8-Pin TSSOP Tube (Alt: MCP602-I/ST) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
LCSC Dual 1pA 2.3V/us 2.8MHz Rail-to-Rail Output 2mV TSSOP-8 Operational Amplifier ROHS 34
  • 1 $0.9392
  • 10 $0.9172
  • 30 $0.9031
  • 100 $0.8889
$0.8889 / $0.9392 Buy Now
Master Electronics Op Amp Dual Low Power Amplifier R-R O/P 6V Automotive 8-Pin TSSOP Tube RoHS: Compliant 1000 In Stock
8900 Factory Stock
  • 100 $0.5917
  • 300 $0.5465
  • 1,000 $0.5383
  • 2,500 $0.5081
  • 5,000 $0.5005
  • 7,500 $0.4930
  • 10,000 $0.4856
  • 15,000 $0.4783
$0.4783 / $0.5917 Buy Now

Part Details for MCP602-I/ST

MCP602-I/ST CAD Models

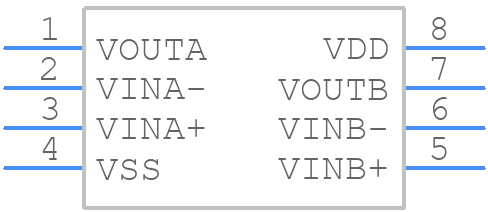

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP602-I/ST Part Data Attributes

Parametric Data
MCP602-I/ST Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP602-I/ST Microchip Technology Inc DUAL OP-AMP, 3000 uV OFFSET-MAX, 2.8 MHz BAND WIDTH, PDSO8, 4.40 MM, PLASTIC, MO-153, TSSOP-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code TSSOP
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.00006 µA
Common-mode Reject Ratio-Min 75 dB
Common-mode Reject Ratio-Nom 90 dB
Frequency Compensation YES
Input Offset Voltage-Max 3000 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.4 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Qualification Status Not Qualified
Screening Level TS 16949
Seated Height-Max 1.1 mm
Slew Rate-Nom 2.3 V/us
Supply Current-Max 0.65 mA
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Unity Gain BW-Nom 2800
Voltage Gain-Min 56200
Wideband NO
Width 3 mm

Alternate Parts for MCP602-I/ST

This table gives cross-reference parts and alternative options found for MCP602-I/ST. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP602-I/ST, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCP602T-I/ST Microchip Technology Inc $0.6241 DUAL OP-AMP, 3000 uV OFFSET-MAX, 2.8 MHz BAND WIDTH, PDSO8, 4.40 MM, PLASTIC, MO-153, TSSOP-8 MCP602-I/ST vs MCP602T-I/ST
MCP602T-E/STVAO Microchip Technology Inc Check for Price Operational Amplifier, 2 Func, 4500uV Offset-Max, CMOS, PDSO8 MCP602-I/ST vs MCP602T-E/STVAO
MCP602T-E/ST Microchip Technology Inc $0.7298 DUAL OP-AMP, 4500 uV OFFSET-MAX, 2.8 MHz BAND WIDTH, PDSO8, 4.40 MM, PLASTIC, MO-153, TSSOP-8 MCP602-I/ST vs MCP602T-E/ST
MCP602T-I/STG Microchip Technology Inc Check for Price DUAL OP-AMP, 3000 uV OFFSET-MAX, 2.8 MHz BAND WIDTH, PDSO8, 4.40 MM, PLASTIC, MO-153, TSSOP-8 MCP602-I/ST vs MCP602T-I/STG
MCP602-I/SNREL Microchip Technology Inc Check for Price DUAL OP-AMP, 3000 uV OFFSET-MAX, 2.8 MHz BAND WIDTH, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8 MCP602-I/ST vs MCP602-I/SNREL
MCP602-E/SN Microchip Technology Inc $0.6706 DUAL OP-AMP, 4500 uV OFFSET-MAX, 2.8 MHz BAND WIDTH, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8 MCP602-I/ST vs MCP602-E/SN
MCP602T-I/SL Telcom Semiconductor Inc Check for Price Operational Amplifier, 2 Func, 2000uV Offset-Max, CMOS, PDSO14, PLASTIC, SOIC-14 MCP602-I/ST vs MCP602T-I/SL
MCP602-I/PG Microchip Technology Inc Check for Price DUAL OP-AMP, 3000 uV OFFSET-MAX, 2.8 MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8 MCP602-I/ST vs MCP602-I/PG
MCP602-I/P Microchip Technology Inc $0.6877 DUAL OP-AMP, 3000 uV OFFSET-MAX, 2.8 MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8 MCP602-I/ST vs MCP602-I/P
MCP602T-I/SNG Microchip Technology Inc Check for Price DUAL OP-AMP, 3000 uV OFFSET-MAX, 2.8 MHz BAND WIDTH, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8 MCP602-I/ST vs MCP602T-I/SNG
