Capacitors / Fixed Capacitors / MC0402X104M100CT
Datasheets
MC0402X104M100CT by: SPC Multicomp

Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP

Part Details for MC0402X104M100CT by SPC Multicomp

Results Overview of MC0402X104M100CT by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MC0402X104M100CT Information

MC0402X104M100CT by SPC Multicomp is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for MC0402X104M100CT

Part # Distributor Description Stock Price Buy
DISTI # 03AC3147
Newark Cap, 0.1Μf, 10V, 20%, X5R, 0402, Reel, Capacitance:0.1Μf, Voltage Rating:10V, Ceramic Capacitor C... ase:0402 [1005 Metric], Capacitance Tolerance:± 20%, Dielectric Characteristic:X5R, Product Range:Mc Series, Operating Temperature Rohs Compliant: Yes |Multicomp Pro MC0402X104M100CT more RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel 390000
  • 5,000 $0.0030
$0.0030 Buy Now
DISTI # 06R4873
Newark Ceramic Capacitor, 0.1Uf, 10V, X5R, 20%, 0402, Capacitance:0.1Μf, Voltage(Dc):10V, Capacitor Case... /Package:0402 [1005 Metric], Capacitance Tolerance:± 20%, Dielectric Characteristic:X5R, Product Range:-, Product Length:1.02Mm, Msl:-Rohs Compliant: Yes |Multicomp Pro MC0402X104M100CT more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 5469
  • 1 $0.0020
  • 10 $0.0020
  • 50 $0.0020
  • 100 $0.0020
  • 250 $0.0020
  • 500 $0.0020
  • 1,000 $0.0020
  • 2,500 $0.0020
$0.0020 Buy Now

Part Details for MC0402X104M100CT

MC0402X104M100CT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

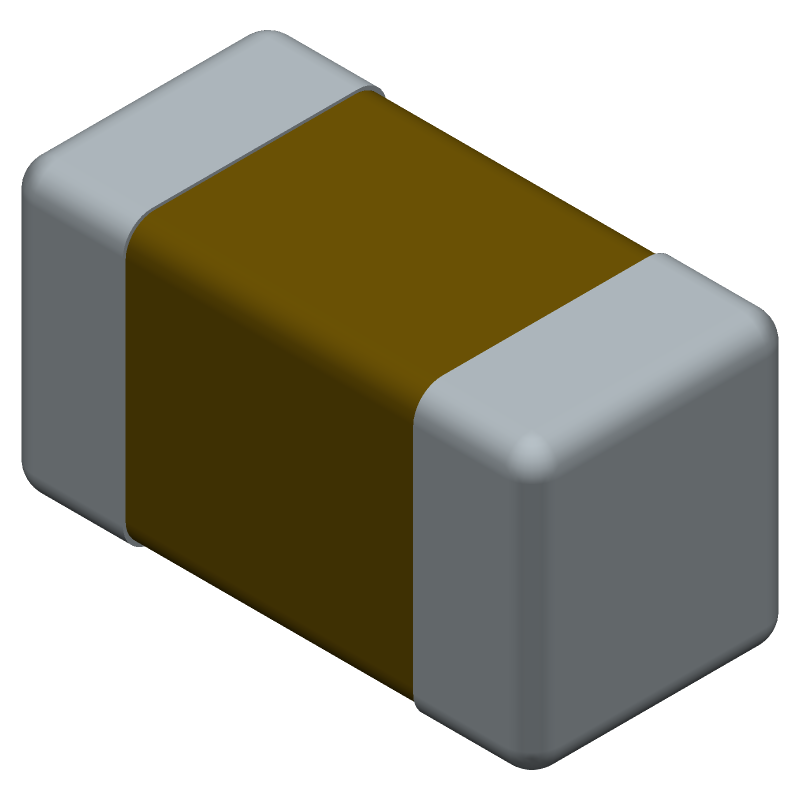

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC0402X104M100CT Part Data Attributes

Parametric Data
MC0402X104M100CT SPC Multicomp
Buy Now Datasheet
Compare Parts:
MC0402X104M100CT SPC Multicomp Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MULTICOMP PRO
Package Description CHIP
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer Multicomp Pro
Capacitance 0.1 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.5 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 10 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code X5R
Temperature Coefficient 15% ppm/°C
Terminal Finish TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for MC0402X104M100CT

This table gives cross-reference parts and alternative options found for MC0402X104M100CT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC0402X104M100CT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CL05A104MP5GNNL Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.1uF, 0402, MC0402X104M100CT vs CL05A104MP5GNNL
CL05A104MP5GCNL Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.1uF, 0402, MC0402X104M100CT vs CL05A104MP5GCNL
MCASL105SB5104MFNA1J TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP MC0402X104M100CT vs MCASL105SB5104MFNA1J
04022B104M6BP0D YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.1uF, 0402, MC0402X104M100CT vs 04022B104M6BP0D
CL05A104MP5NCNC Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.1uF, 0402, MC0402X104M100CT vs CL05A104MP5NCNC
CL05A104MP5NNNC Samsung Electro-Mechanics $0.0091 Capacitor, Ceramic, Chip, General Purpose, 0.1uF, 10V, ±20%, X5R, 0402 (1005 mm), 0.020"T, -55º ~ +85ºC, 7" Reel MC0402X104M100CT vs CL05A104MP5NNNC
04022B104M6B30D YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.1uF, 0402, MC0402X104M100CT vs 04022B104M6B30D
C0402C104M8PALTM KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, MC0402X104M100CT vs C0402C104M8PALTM
CC0402MPX5R6BB104 YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT MC0402X104M100CT vs CC0402MPX5R6BB104
C0402X5R104M100NJB Eyang Technology Development Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.1uF, 0402, MC0402X104M100CT vs C0402X5R104M100NJB

MC0402X104M100CT Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the MC0402X104M100CT is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the MC0402X104M100CT is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The maximum voltage derating for the MC0402X104M100CT is 80% of the rated voltage, which is 80% of 100V = 80V.

  • The MC0402X104M100CT has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's recommended to follow the manufacturer's storage and handling guidelines to prevent moisture absorption.

  • The expected lifespan of the MC0402X104M100CT is approximately 10 to 15 years, depending on the operating conditions, such as temperature, voltage, and humidity.
