LT3942JUFD#PBF by: Analog Devices Inc

36V, 2A Synchronous Buck-Boost Converter and LED Driver

Part Details for LT3942JUFD#PBF by Analog Devices Inc

Results Overview of LT3942JUFD#PBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Transportation and Logistics Renewable Energy Automotive Robotics and Drones

LT3942JUFD#PBF Information

LT3942JUFD#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LT3942JUFD#PBF

Part # Distributor Description Stock Price Buy
DISTI # 50AK5705
Newark Led Driver, Buck/Boost, -40 To 150Deg C, Topology:Synchronous Buck-Boost, Led Driver Type:-, Inpu... t Voltage Min:3V, Input Voltage Max:36V, Output Voltage Max:36V, Output Current Max:1A, Switching Frequency Typ:2Mhz, No. Of Pins:28Pinsrohs Compliant: Yes |Analog Devices LT3942JUFD#PBF more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 15
  • 1 $9.3700
  • 10 $6.4700
  • 25 $5.9400
  • 50 $5.4000
  • 146 $4.9000
  • 292 $4.8300
  • 511 $4.7800
$4.7800 / $9.3700 Buy Now
DISTI # 161-LT3942JUFD#PBF-ND
DigiKey IC LED DRIVER RGLTR PWM 2A 28QFN Min Qty: 1 Lead time: 10 Weeks Container: Tube 222
In Stock
  • 1 $10.3300
  • 10 $7.0310
  • 73 $5.3880
  • 146 $4.9851
  • 292 $4.7875
$4.7875 / $10.3300 Buy Now
DISTI # 584-LT3942JUFD#PBF
Mouser Electronics LED Lighting Driver ICs 36V, 2A Synchronous Buck-Boost Converter and LED Driver RoHS: Compliant 754
  • 1 $8.8000
  • 10 $6.8400
  • 25 $6.0400
  • 73 $5.6200
  • 511 $5.5000
  • 1,022 $4.9900
$4.9900 / $8.8000 Buy Now
DISTI # V99:2348_23993743
Arrow Electronics LED Driver 4000uA Supply Current 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2305 Americas - 2
  • 1 $4.6440
$4.6440 Buy Now
Analog Devices Inc 36V, 2A Synchronous Buck-Boost Package Multiple: 73 1797
  • 1 $10.3300
  • 10 $7.0310
  • 1,000 $3.8300
$3.8300 / $10.3300 Buy Now
DISTI # 66453521
Verical LED Driver 4000uA Supply Current 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 73 Package Multiple: 73 Americas - 1752
  • 73 $4.8176
$4.8176 Buy Now
DISTI # 66455630
Verical LED Driver 4000uA Supply Current 28-Pin QFN EP Tube RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2305 Americas - 2
  • 2 $4.6440
$4.6440 Buy Now
DISTI # LT3942JUFD#PBF
Richardson RFPD POWER MANAGEMENT IC RoHS: Compliant Min Qty: 73 0
  • 73 $5.7400
  • 100 $5.4300
  • 500 $5.2800
  • 1,000 $5.1400
  • 5,000 $4.9500
$4.9500 / $5.7400 Buy Now
Vyrian Other Function Semiconductors 372
RFQ

Part Details for LT3942JUFD#PBF

LT3942JUFD#PBF CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

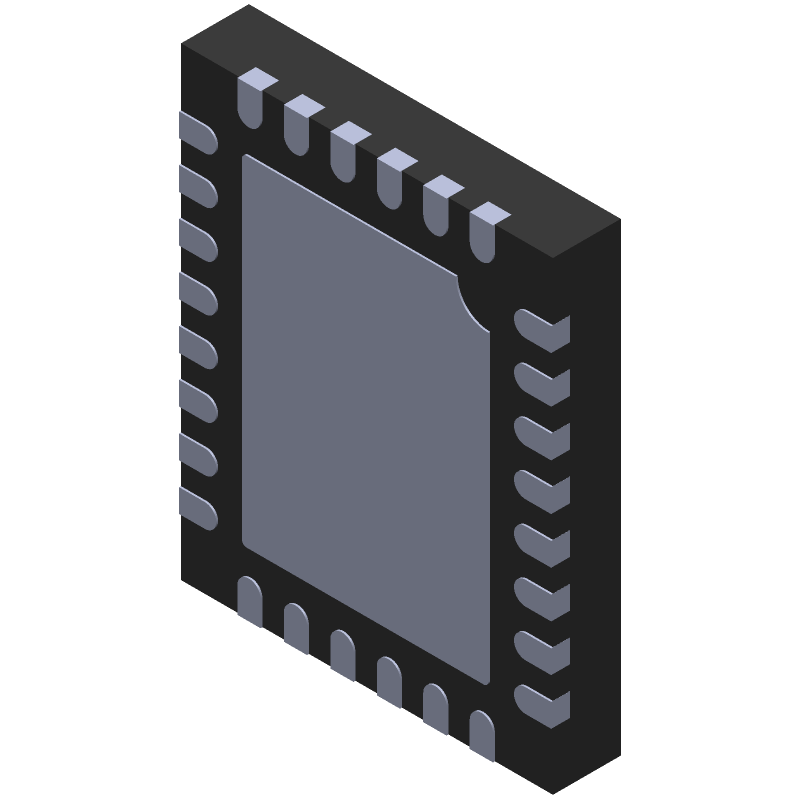

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LT3942JUFD#PBF Part Data Attributes

Parametric Data
LT3942JUFD#PBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LT3942JUFD#PBF Analog Devices Inc 36V, 2A Synchronous Buck-Boost Converter and LED Driver
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Pin Count 28
Manufacturer Package Code 05-08-1712
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Date Of Intro 2019-10-10
Samacsys Manufacturer Analog Devices
Analog IC - Other Type SWITCHING CONTROLLER
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 36 V
Input Voltage-Min 3 V
Input Voltage-Nom 12 V
JESD-30 Code R-PQCC-N28
JESD-609 Code e3
Length 5 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 28
Operating Temperature-Max 150 °C
Operating Temperature-Min -40 °C
Output Current-Max 2 A
Output Voltage-Max 36 V
Output Voltage-Min
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC28,.16X.2,20
Package Shape RECTANGULAR
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Seated Height-Max 0.8 mm
Surface Mount YES
Switcher Configuration BUCK-BOOST
Switching Frequency-Max 2100 kHz
Technology BIPOLAR
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 4 mm
