3G/HD/SD video clock generator with audio clock 40-WQFN -40 to 85

Part Details for LMH1983SQ/NOPB by Texas Instruments

Overview of LMH1983SQ/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Available Datasheets

Part # Manufacturer Description Datasheet
LMH1983SQ/NOPB Texas Instruments 3G/HD/SD Video Clock Generator with Audio Clock 40-WQFN -40 to 85
LMH1983SQE/NOPB Texas Instruments 3G/HD/SD Video Clock Generator with Audio Clock 40-WQFN -40 to 85
LMH1983SQX/NOPB Texas Instruments 3G/HD/SD Video Clock Generator with Audio Clock 40-WQFN -40 to 85

Price & Stock for LMH1983SQ/NOPB

Part # Distributor Description Stock Price Buy
DISTI # 296-48592-1-ND
DigiKey IC VIDEO CLOCK GENERATOR 40WQFN Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 990
In Stock
  • 1 $36.3800
  • 10 $29.5850
  • 25 $27.8868
  • 100 $26.0209
  • 250 $25.1314
  • 1,000 $24.1544
$24.1544 / $36.3800 Buy Now
DISTI # 926-LMH1983SQ/NOPB
Mouser Electronics Video ICs 3G/HD/SD video clock generator with audio clock 40-WQFN -40 to 85 RoHS: Compliant 1170
  • 1 $35.3100
  • 10 $32.5700
  • 25 $31.1000
  • 100 $27.8100
  • 250 $26.5300
  • 500 $26.5000
  • 1,000 $23.3300
$23.3300 / $35.3100 Buy Now
DISTI # SMC-LMH1983SQ/NOPB
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 921
RFQ
LCSC WQFN-40-EP(6x6) Video Interface ICs ROHS 3
  • 1 $36.2531
  • 30 $34.7439
$34.7439 / $36.2531 Buy Now
Win Source Electronics 3G/HD/SD Video Clock Generator with Audio Clock | IC VID CLK GEN MULTI RATE 40WQFN 3100
  • 2 $36.5319
  • 4 $29.9749
  • 6 $29.0382
  • 8 $28.1015
  • 10 $27.1648
  • 13 $24.3546
$24.3546 / $36.5319 Buy Now

Part Details for LMH1983SQ/NOPB

LMH1983SQ/NOPB CAD Models

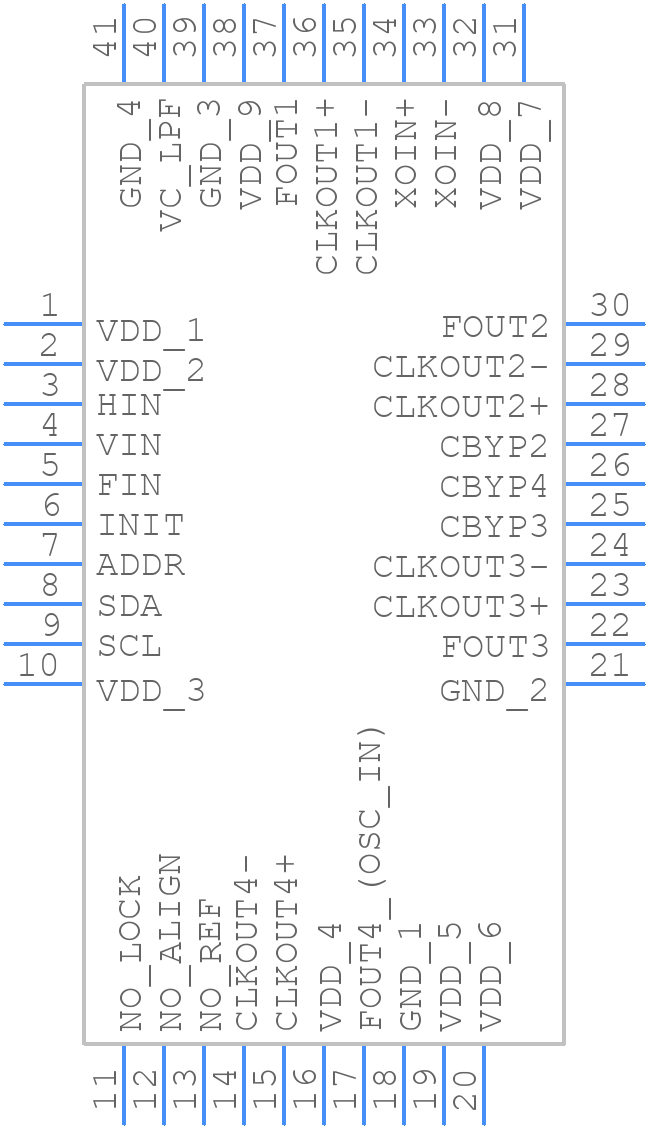

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LMH1983SQ/NOPB Part Data Attributes

Parametric Data
LMH1983SQ/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LMH1983SQ/NOPB Texas Instruments 3G/HD/SD video clock generator with audio clock 40-WQFN -40 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Package Description WQFN-40
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
JESD-30 Code S-PQCC-N40
JESD-609 Code e3
Length 6 mm
Moisture Sensitivity Level 3
Number of Terminals 40
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Clock Frequency-Max 148.5 MHz
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC40,.24SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Primary Clock/Crystal Frequency-Nom 27 MHz
Qualification Status Not Qualified
Seated Height-Max 0.8 mm
Supply Current-Max 212 mA
Supply Voltage-Max 3.465 V
Supply Voltage-Min 3.135 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 6 mm
uPs/uCs/Peripheral ICs Type CLOCK GENERATOR, VIDEO
