Diodes Rectifier Diodes ER3JB-TP

Diodes
ER3JB-TP
Micro Commercial Components

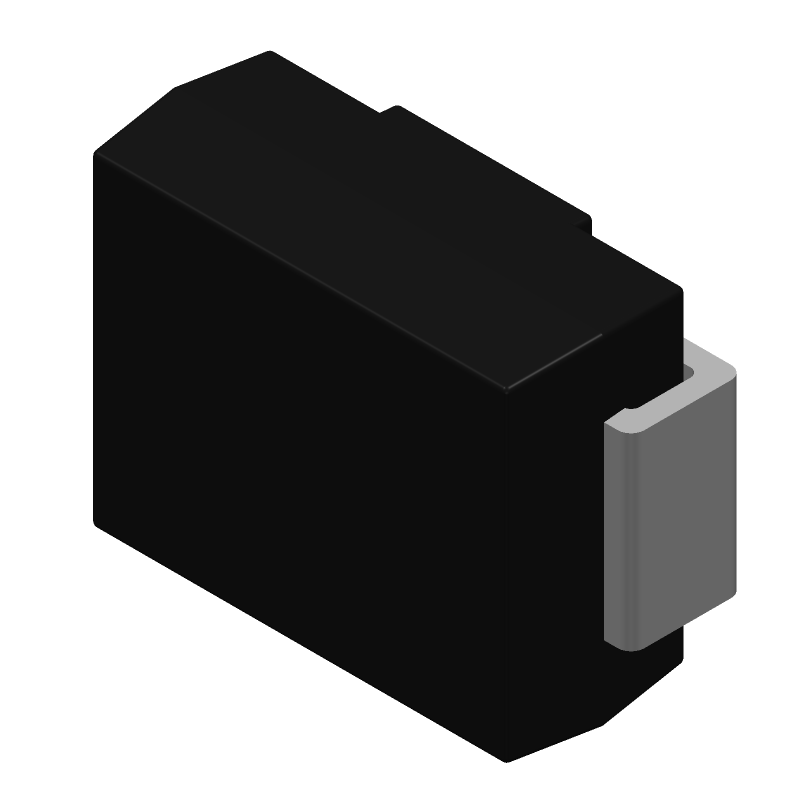

Description: Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN

Overview of ER3JB-TP by Micro Commercial Components

Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Where used in Applications: Consumer Electronics Environmental Monitoring Space Technology Industrial Automation Aerospace and Defense Telecommunications Automotive

Price & Stock for ER3JB-TP by Micro Commercial Components

Part # Manufacturer Description Stock Price Buy
DISTI # ER3JB-TPMSCT-ND
DigiKey DIODE GEN PURP 600V 3A DO214AA Min Qty: 1 Lead time: 11 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 63882
In Stock
  • 1 $0.4200
  • 10 $0.2960
  • 100 $0.1491
  • 500 $0.1321
  • 1,000 $0.1028
  • 3,000 $0.0920
  • 6,000 $0.0900
  • 9,000 $0.0797
  • 30,000 $0.0787
  • 75,000 $0.0668
  • 150,000 $0.0643
$0.0643 / $0.4200 Buy Now
DISTI # 833-ER3JB-TP
Mouser Electronics Rectifiers 3A SUPER FAST RECOV SILICON RECTIFIER RoHS: Compliant 3208
  • 1 $0.4200
  • 10 $0.2960
  • 100 $0.1500
  • 500 $0.1330
  • 1,000 $0.1030
  • 3,000 $0.0970
$0.0970 / $0.4200 Buy Now
DISTI # V36:1790_06833503
Arrow Electronics Diode Switching Si 600V 3A 2-Pin SMB T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks Date Code: 2411 Americas - 45000
  • 3,000 $0.0643
$0.0643 Buy Now
Future Electronics ER3JB series 600 V 3 A SMT Super Fast Recovery Silicon Rectifier - DO-214AA RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks Container: Reel 3000
Reel
  • 3,000 $0.1060
  • 6,000 $0.1030
  • 9,000 $0.1020
  • 12,000 $0.1010
  • 15,000 $0.0969
$0.0969 / $0.1060 Buy Now
DISTI # 80328244
Verical Diode Switching Si 600V 3A 2-Pin SMB T/R Min Qty: 3000 Package Multiple: 3000 Date Code: 2411 Americas - 45000
  • 3,000 $0.0643
$0.0643 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 3000 6000
  • 3,000 $0.1357
  • 6,000 $0.1267
$0.1267 / $0.1357 Buy Now

CAD Models for ER3JB-TP by Micro Commercial Components
You need to Sign In or Sign Up to download CAD models.

There are no models available for this part yet.

Part Data Attributes for ER3JB-TP by Micro Commercial Components
Parametric Data

ER3JB-TP
Micro Commercial Components
Buy Now
-
-
Pbfree Code
Yes
Rohs Code
Yes
Part Life Cycle Code
Active
Ihs Manufacturer
MICRO COMMERCIAL COMPONENTS CORP
Part Package Code
DO-214AA
Package Description
SMB, 2 PIN
Pin Count
2
Reach Compliance Code
not_compliant
ECCN Code
EAR99
HTS Code
8541.10.00.80
Application
EFFICIENCY
Configuration
SINGLE
Diode Element Material
SILICON
Diode Type
RECTIFIER DIODE
Forward Voltage-Max (VF)
1.7 V
JEDEC-95 Code
DO-214AA
JESD-30 Code
R-PDSO-C2
JESD-609 Code
e3
Moisture Sensitivity Level
1
Non-rep Pk Forward Current-Max
100 A
Number of Elements
1
Number of Phases
1
Number of Terminals
2
Output Current-Max
3 A
Package Body Material
PLASTIC/EPOXY
Package Shape
RECTANGULAR
Package Style
SMALL OUTLINE
Peak Reflow Temperature (Cel)
260
Qualification Status
Not Qualified
Rep Pk Reverse Voltage-Max
600 V
Reverse Current-Max
5 µA
Reverse Recovery Time-Max
0.035 µs
Surface Mount
YES
Terminal Finish
MATTE TIN
Terminal Form
C BEND
Terminal Position
DUAL
Time@Peak Reflow Temperature-Max (s)
10
Want to compare parts?
  1. ER3JB-TP
    Micro Commercial Components
    Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN
    VS

Alternate Parts for ER3JB-TP

This table gives cross-reference parts and alternative options found for ER3JB-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ER3JB-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number Description Manufacturer Compare
FM305-B-H Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Formosa Microsemi Co Ltd ER3JB-TP vs FM305-B-H
EGFM305-B-H Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Formosa Microsemi Co Ltd ER3JB-TP vs EGFM305-B-H
SFM38-BS Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB-S, 2 PIN Formosa Microsemi Co Ltd ER3JB-TP vs SFM38-BS
ER3JB-TP-HF Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Micro Commercial Components ER3JB-TP vs ER3JB-TP-HF
HFM305-BS Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB-S, 2 PIN Formosa Microsemi Co Ltd ER3JB-TP vs HFM305-BS
FFM305-B-H Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Formosa Microsemi Co Ltd ER3JB-TP vs FFM305-B-H
HS3JBR5G Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Taiwan Semiconductor ER3JB-TP vs HS3JBR5G
HS3JBM4G Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Taiwan Semiconductor ER3JB-TP vs HS3JBM4G
S3JSMB Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Diotec Semiconductor AG ER3JB-TP vs S3JSMB
EGFM305-BS Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB-S, 2 PIN Formosa Microsemi Co Ltd ER3JB-TP vs EGFM305-BS
Part Number Description Manufacturer Compare
HS3JBR4 Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Taiwan Semiconductor ER3JB-TP vs HS3JBR4
FFM305-BS-H Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB-S, 2 PIN Formosa Microsemi Co Ltd ER3JB-TP vs FFM305-BS-H
HS3JBR5G Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Taiwan Semiconductor ER3JB-TP vs HS3JBR5G
US3SMBJ Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN SEMIKRON ER3JB-TP vs US3SMBJ
FR3JB-TP-HF Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Micro Commercial Components ER3JB-TP vs FR3JB-TP-HF
S3JB-T3-LF Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Surge Components Inc ER3JB-TP vs S3JB-T3-LF
EGFM305-BS-H Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB-S, 2 PIN Formosa Microsemi Co Ltd ER3JB-TP vs EGFM305-BS-H
HFM305-BS-H Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB-S, 2 PIN Formosa Microsemi Co Ltd ER3JB-TP vs HFM305-BS-H
HS3JBM4 Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Taiwan Semiconductor ER3JB-TP vs HS3JBM4
SFM38-BS Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-214AA, SMB-S, 2 PIN Formosa Microsemi Co Ltd ER3JB-TP vs SFM38-BS
