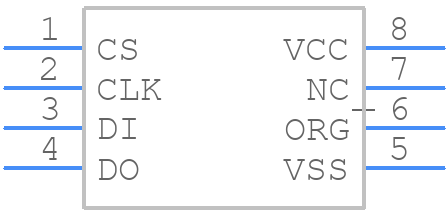

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 93LC46B-I/ST by Microchip Technology Inc
Overview of 93LC46B-I/ST by Microchip Technology Inc
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Computing and Data Storage
Price & Stock for 93LC46B-I/ST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
92C7658
|
Newark | Serial Eeprom, 1Kbit, 2Mhz, Tssop-8, Memory Configuration:64 X 16Bit, Interfaces:Microwire, Clock Frequency Max:2Mhz, Ic Case/Package:Tssop, No. Of Pins:8Pins, Supply Voltage Min:2.5V, Supply Voltage Max:5.5V, Msl:Msl 1 - Unlimitedrohs Compliant: Yes |Microchip 93LC46B-I/ST RoHS: Compliant Min Qty: 1100 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.3430 | Buy Now |
|
DISTI #
93LC46B-I/ST-ND
|
DigiKey | IC EEPROM 1KBIT MICROWIRE 8TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
1972 In Stock |
|
$0.3399 / $0.3600 | Buy Now |
|
DISTI #
93LC46B-I/ST
|
Avnet Americas | EEPROM Serial-Microwire 1K-bit 64 x 16 3.3V/5V 8-Pin TSSOP Tube - Rail/Tube (Alt: 93LC46B-I/ST) RoHS: Compliant Min Qty: 1100 Package Multiple: 100 Lead time: 6 Weeks, 0 Days Container: Tube | 0 |
|
$0.3300 / $0.3500 | Buy Now |
|
DISTI #
579-93LC46B-I/ST
|
Mouser Electronics | EEPROM 64x16 RoHS: Compliant | 828 |
|
$0.3300 / $0.3500 | Buy Now |
|
DISTI #
93LC46B-I/ST
|
Microchip Technology Inc | 1K, 64 X 16 SERIAL EE, IND, Projected EOL: 2034-05-16 RoHS: Compliant pbFree: Yes | 26450 |
|
$0.2700 / $0.3500 | Buy Now |
|
DISTI #
70046990
|
RS | Microchip 93LC46B-I/ST Serial EEPROM Memory, 1kbit, 2.5 to 5.5 V 8-Pin TSSOP | Microchip Technology Inc. 93LC46B-I/ST RoHS: Not Compliant Min Qty: 1100 Package Multiple: 1 Lead time: 44 Weeks, 0 Days Container: Bulk | 0 |
|
$0.5200 / $0.6100 | RFQ |
|
|
Future Electronics | 93LC46 Series 1 Kbit (64 x 16) 5.5 V Microwire Compatible Serial EEPROM -TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 1100 Package Multiple: 100 Lead time: 6 Weeks Container: Tube | 0Tube |
|
$0.3250 / $0.3600 | Buy Now |
|
|
Onlinecomponents.com | EEPROM - Serial-Microwire - 1Kbit (64 x 16) - 3.3V/5V - 8-Pin TSSOP - Tube RoHS: Compliant |
1240 In Stock 23200 Factory Stock |
|
$0.3184 / $0.3504 | Buy Now |
|
DISTI #
58337415
|
Verical | EEPROM Serial-Microwire 1K-bit 64 x 16 3.3V/5V 8-Pin TSSOP Tube RoHS: Compliant Min Qty: 166 Package Multiple: 1 Date Code: 2010 | Americas - 3320 |
|
$0.1888 | Buy Now |
|
DISTI #
76084483
|
Verical | EEPROM Serial-Microwire 1K-bit 64 x 16 3.3V/5V 8-Pin TSSOP Tube RoHS: Compliant Min Qty: 200 Package Multiple: 100 Date Code: 1932 | Americas - 1200 |
|
$0.4267 / $0.4555 | Buy Now |
Part Details for 93LC46B-I/ST
93LC46B-I/ST CAD Models
93LC46B-I/ST Part Data Attributes
|
|
93LC46B-I/ST
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
93LC46B-I/ST
Microchip Technology Inc
64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| parentfamilyid | 1364792 | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOIC | |
| Package Description | TSSOP, TSSOP8,.25 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 6 Weeks | |
| kg CO2e/kg | 12 | |
| Average Weight (mg) | 40.65 | |
| CO2e (mg) | 487.8 | |
| Samacsys Description | 1K 128x8 2.5V Serial EEPROM,93LC46B-I/ST | |
| Samacsys Manufacturer | Microchip | |
| Samacsys Modified On | 2023-06-22 02:40:13 | |
| Total Weight | 33 | |
| Category CO2 Kg | 12 | |
| CO2 | 396 | |
| Compliance Temperature Grade | Industrial: -40C to +85C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| Candidate List Date | 2024-01-23 | |
| CAS Accounted for Wt | 93 | |
| CA Prop 65 Presence | YES | |
| CA Prop 65 CAS Numbers | 7440-02-0, 1333-86-4 | |
| EFUP | e | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.22 | |
| Additional Feature | 1000000 ERASE/WRITE CYCLES MIN; DATA RETENTION > 200 YEARS | |
| Clock Frequency-Max (fCLK) | 2 MHz | |
| Data Retention Time-Min | 200 | |
| Endurance | 1000000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.4 mm | |
| Memory Density | 1024 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 16 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 64 words | |
| Number of Words Code | 64 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 64X16 | |
| Output Characteristics | TOTEM POLE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Ready/Busy | YES | |
| Reverse Pinout | NO | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.2 mm | |
| Serial Bus Type | MICROWIRE | |
| Standby Current-Max | 0.000001 A | |
| Supply Current-Max | 0.002 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 3 mm | |
| Write Cycle Time-Max (tWC) | 6 ms | |
| Write Protection | SOFTWARE |
Alternate Parts for 93LC46B-I/ST
This table gives cross-reference parts and alternative options found for 93LC46B-I/ST. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 93LC46B-I/ST, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| 93LC46B-TI/STGX | 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, LEAD FREE, PLASTIC, MO-153, TSSOP-8 | Microchip Technology Inc | 93LC46B-I/ST vs 93LC46B-TI/STGX |
| 93LC46B-I/STGX | 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, LEAD FREE, PLASTIC, MO-153, TSSOP-8 | Microchip Technology Inc | 93LC46B-I/ST vs 93LC46B-I/STGX |
| 93LC46BT-I/STGX | 64X16 MICROWIRE BUS SERIAL EEPROM, PDSO8 | Microchip Technology Inc | 93LC46B-I/ST vs 93LC46BT-I/STGX |
| 93LC46BT-I/STRVA | EEPROM, 64X16, Serial, CMOS, PDSO8 | Microchip Technology Inc | 93LC46B-I/ST vs 93LC46BT-I/STRVA |
| 93LC46B-TE/STGX | 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, LEAD FREE, PLASTIC, MO-153, TSSOP-8 | Microchip Technology Inc | 93LC46B-I/ST vs 93LC46B-TE/STGX |
| 93LC46BT-E/ST | 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8 | Microchip Technology Inc | 93LC46B-I/ST vs 93LC46BT-E/ST |
| 93LC46BXT-E/ST | 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8 | Microchip Technology Inc | 93LC46B-I/ST vs 93LC46BXT-E/ST |
| 93LC46B/ST | 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, TSSOP-8 | Microchip Technology Inc | 93LC46B-I/ST vs 93LC46B/ST |
| 93LC46BX-E/ST | 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8 | Microchip Technology Inc | 93LC46B-I/ST vs 93LC46BX-E/ST |
| 93LC46B-E/STG | 64 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8 | Microchip Technology Inc | 93LC46B-I/ST vs 93LC46B-E/STG |
