87832-1420 by:

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,

Part Details for 87832-1420 by Molex

Overview of 87832-1420 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Electronic Manufacturing Entertainment and Gaming

Price & Stock for 87832-1420

Part # Distributor Description Stock Price Buy
DISTI # 57J0374
Newark Connector, Header, 14Pos, 2Row, 2Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2Mm, No. Of Rows:2Rows, No. Of Contacts:14Contacts, Contact Termination Type:Surface Mount Straight, Product Range:Milli-Grid 87832 Series Rohs Compliant: Yes |Molex 87832-1420 (Alternate Part Number: 822348231973 Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 4054
  • 1 $1.5000
  • 10 $1.2700
  • 25 $1.2700
  • 50 $1.2700
  • 100 $1.1800
  • 250 $1.1800
$1.1800 / $1.5000 Buy Now
DISTI # 94T6044
Newark Wire-To-Board Connector, Milli-Grid 87832 Series, Surface Mount, Header, 14, 2 Mm Rohs Compliant: Yes |Molex 87832-1420 (Alternate Part Number: 822348231973 Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 40929
  • 1 $2.3000
  • 10 $1.4900
  • 25 $1.3900
  • 50 $1.3100
  • 100 $1.2200
  • 250 $1.2100
$1.2100 / $2.3000 Buy Now
DISTI # 26AC8883
Newark Mgrid Hdr Shrd Smt/Slot/Pg .38Aulf 14Ckt Rohs Compliant: Yes |Molex 87832-1420 (Alternate Part Number: 822348231973 Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $0.5590
$0.5590 Buy Now
DISTI # 0878321420
Avnet Americas Conn Shrouded Header 14 POS 2mm Solder ST SMD Tube - Rail/Tube (Alt: 0878321420) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Tube 14728
  • 1 $0.5581
$0.5581 Buy Now
DISTI # 57J0374
Avnet Americas Conn Shrouded Header 14 POS 2mm Solder ST SMD Tube - Bulk (Alt: 57J0374) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 2 Days Container: Bulk 4054 Partner Stock
  • 1 $2.3100
  • 10 $1.5400
  • 25 $1.4700
  • 50 $1.3900
  • 100 $1.3100
$1.3100 / $2.3100 Buy Now
DISTI # 538-87832-1420
Mouser Electronics Headers & Wire Housings 14P SMD PB FREE SHRD RoHS: Compliant 20410
  • 1 $2.2300
  • 10 $1.9500
  • 96 $1.7400
  • 512 $1.4500
  • 1,024 $1.2400
  • 2,528 $1.1600
  • 5,024 $1.1000
$1.1000 / $2.2300 Buy Now
Bisco Industries   1945
  • 1 $6.7750
  • 10 $3.7523
  • 25 $2.5150
  • 50 $1.4575
  • 100 $0.8003
  • 250 $0.7275
  • 1,000 $1.0728
$0.7275 / $6.7750 Buy Now
Onlinecomponents.com Conn Shrouded Header HDR 14 POS 2mm Solder ST SMD Milli-Grid™ Tube RoHS: Compliant 33506 Partner Stock
  • 160 $0.6220
  • 608 $0.6020
  • 2,304 $0.5920
  • 3,200 $0.5810
  • 28,800 $0.5200
$0.5200 / $0.6220 Buy Now
Bristol Electronics   5447
RFQ
Bristol Electronics   197
RFQ
Bristol Electronics   Min Qty: 3 100
  • 3 $1.8000
  • 13 $1.3500
  • 39 $1.1250
$1.1250 / $1.8000 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 495
  • 1 $1.8750
  • 134 $1.0125
  • 297 $0.9375
$0.9375 / $1.8750 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 56
  • 1 $1.3300
  • 5 $1.0640
  • 20 $0.7980
$0.7980 / $1.3300 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 426
  • 1 $1.5500
  • 66 $0.7750
  • 259 $0.6200
$0.6200 / $1.5500 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 76
  • 1 $2.1000
  • 13 $1.0500
  • 58 $0.6300
$0.6300 / $2.1000 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 76
  • 1 $2.1000
  • 13 $1.0500
  • 58 $0.6300
$0.6300 / $2.1000 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 798
  • 1 $2.5000
  • 41 $1.2500
  • 161 $1.0000
$1.0000 / $2.5000 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 23
  • 1 $2.3600
  • 3 $1.7700
  • 15 $1.4750
$1.4750 / $2.3600 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 80
  • 1 $2.4000
  • 15 $1.5000
  • 51 $0.9000
$0.9000 / $2.4000 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 2688
  • 1 $3.0000
  • 433 $1.2375
  • 809 $1.1250
$1.1250 / $3.0000 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 2614
  • 1 $3.0000
  • 433 $1.2375
  • 809 $1.1250
$1.1250 / $3.0000 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 79
  • 1 $3.0000
  • 12 $1.8750
  • 41 $1.6500
$1.6500 / $3.0000 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 72
  • 1 $3.0000
  • 12 $1.8750
  • 41 $1.6500
$1.6500 / $3.0000 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 41
  • 1 $3.0000
  • 12 $1.8750
  • 41 $1.6500
$1.6500 / $3.0000 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 16
  • 1 $3.7686
  • 4 $3.1405
  • 9 $2.7636
$2.7636 / $3.7686 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 12
  • 1 $7.2000
  • 2 $6.0000
  • 5 $5.2800
$5.2800 / $7.2000 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 1547
  • 1 $2.2280
  • 583 $0.9191
  • 1,089 $0.8355
$0.8355 / $2.2280 Buy Now
Quest Components Header Connector, PCB Mount, Receptacle, 14 Contacts, Pin, 0.079 Pitch, Surface Mount Terminal, Guide Slot 1597
  • 1 $3.0480
  • 533 $1.6764
  • 1,194 $1.5240
$1.5240 / $3.0480 Buy Now
DISTI # 87832-1420
TTI Headers & Wire Housings 14P SMD PB FREE SHRD RoHS: Compliant pbFree: Pb-Free Min Qty: 32 Package Multiple: 32 Container: Tube Americas - 75584
In Stock
  • 32 $0.6330
  • 128 $0.5870
$0.5870 / $0.6330 Buy Now
DISTI # 0878321420
Avnet Americas Conn Shrouded Header 14 POS 2mm Solder ST SMD Tube - Rail/Tube (Alt: 0878321420) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Tube 14728
  • 1 $0.5581
$0.5581 Buy Now
DISTI # 57J0374
Avnet Americas Conn Shrouded Header 14 POS 2mm Solder ST SMD Tube - Bulk (Alt: 57J0374) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 2 Days Container: Bulk 4054 Partner Stock
  • 1 $2.3100
  • 10 $1.5400
  • 25 $1.4700
  • 50 $1.3900
  • 100 $1.3100
$1.3100 / $2.3100 Buy Now
DISTI # 0878321420
Avnet Americas Conn Shrouded Header 14 POS 2mm Solder ST SMD Tube - Rail/Tube (Alt: 0878321420) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Tube 14728
  • 1 $0.5581
$0.5581 Buy Now
DISTI # 57J0374
Avnet Americas Conn Shrouded Header 14 POS 2mm Solder ST SMD Tube - Bulk (Alt: 57J0374) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 2 Days Container: Bulk 4054 Partner Stock
  • 1 $2.3100
  • 10 $1.5400
  • 25 $1.4700
  • 50 $1.3900
  • 100 $1.3100
$1.3100 / $2.3100 Buy Now
DISTI # MOL87832-1420
Interstate Connecting Components MGRID HDR SHRD SMT/SLOT/PG .38 1451
  • 32 $0.7199
  • 288 $0.6056
  • 672 $0.5870
  • 1,344 $0.5781
  • 2,624 $0.5695
$0.5695 / $0.7199 Buy Now
Chip 1 Exchange INSTOCK 25
RFQ
DISTI # 0878321420
Avnet Asia Conn Shrouded Header 14 POS 2mm Solder ST SMD Tube (Alt: 0878321420) RoHS: Compliant Min Qty: 3200 Package Multiple: 3200 Lead time: 14 Weeks, 2 Days 0
RFQ
Chip1Cloud CONN HEADER 14POS 2MM VERT SMD 12000
RFQ
Component Electronics, Inc IN STOCK SHIP TODAY 8
  • 1 $2.3100
  • 100 $1.7300
  • 1,000 $1.5000
$1.5000 / $2.3100 Buy Now
DISTI # 2102706
element14 Asia-Pacific CONNECTOR, HEADER, 14POS, 2ROW, 2MM RoHS: Compliant Min Qty: 1 Container: Each 47779
  • 1 $2.2832
  • 100 $2.2315
  • 375 $2.1872
  • 1,500 $2.1428
  • 3,000 $2.0985
$2.0985 / $2.2832 Buy Now
DISTI # 2102706
Farnell CONNECTOR, HEADER, 14POS, 2ROW, 2MM RoHS: Compliant Min Qty: 1 Lead time: 13 Weeks, 4 Days Container: Each 40929
  • 1 $2.5226
  • 10 $1.4809
  • 50 $1.1772
  • 100 $1.1559
  • 500 $1.1345
  • 1,000 $1.0931
$1.0931 / $2.5226 Buy Now
Master Electronics Conn Shrouded Header HDR 14 POS 2mm Solder ST SMD Milli-Grid™ Tube RoHS: Compliant 33506 Partner Stock
  • 160 $0.6220
  • 608 $0.6020
  • 2,304 $0.5920
  • 3,200 $0.5810
  • 28,800 $0.5200
$0.5200 / $0.6220 Buy Now
Win Source Electronics CONN HEADER 14POS 2MM VERT SMD 21388
  • 40 $1.4130
  • 90 $1.1600
  • 135 $1.1240
  • 185 $1.0870
  • 240 $1.0510
  • 320 $0.9420
$0.9420 / $1.4130 Buy Now

Part Details for 87832-1420

87832-1420 CAD Models

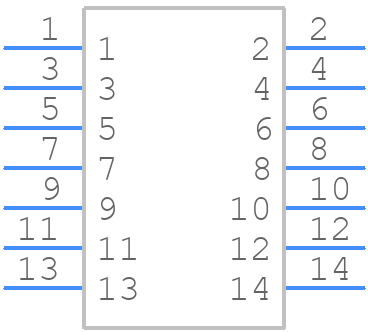

  • Part Symbol

    Part Symbol

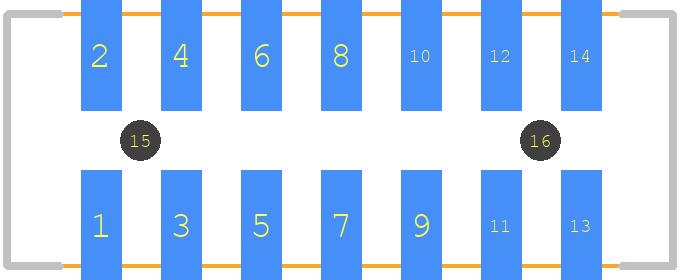

  • Footprint
