Diodes / Rectifier Diodes / 6A8-TP
Datasheets
6A8-TP by:
Micro Commercial Components
ITT Interconnect Solutions
Micro Commercial Components
Not Found

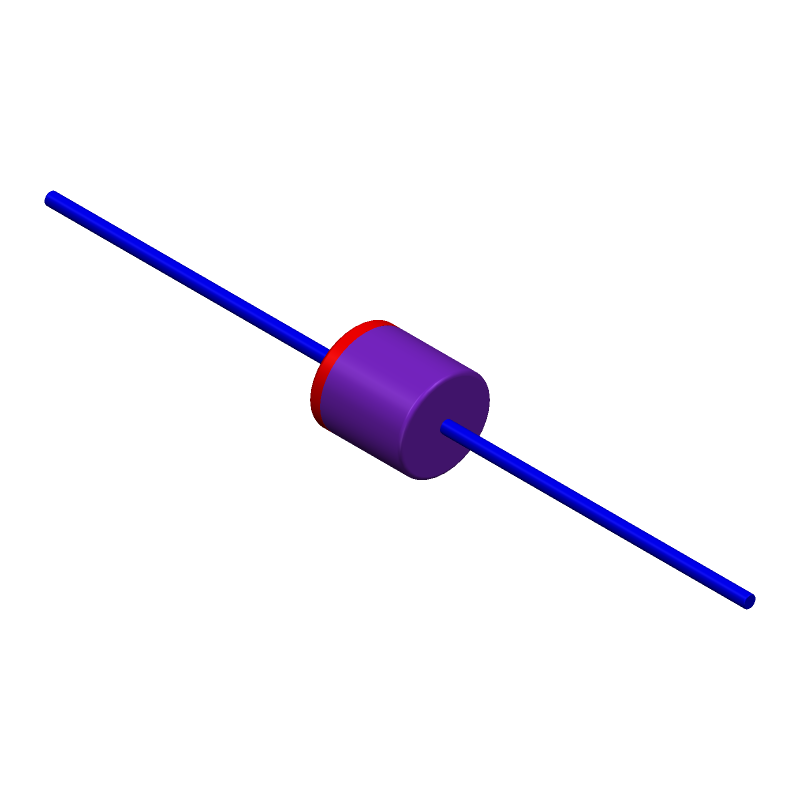

Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, R-6, 2 PIN

Part Details for 6A8-TP by Micro Commercial Components

Results Overview of 6A8-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

6A8-TP Information

6A8-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 6A8-TP

Part # Distributor Description Stock Price Buy
DISTI # 6A8-TPMSCT-ND
DigiKey DIODE STANDARD 800V 6A R6 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Tape & Reel (TR) 2718
In Stock
  • 1 $0.6800
  • 10 $0.4230
  • 100 $0.2876
  • 500 $0.1778
  • 1,000 $0.1500
  • 1,500 $0.1499
  • 2,500 $0.1389
  • 3,500 $0.1363
  • 5,000 $0.1357
  • 12,500 $0.1325
  • 25,000 $0.1315
  • 50,000 $0.1271
$0.1271 / $0.6800 Buy Now
Quest Components   368
  • 1 $0.9800
  • 14 $0.4410
  • 114 $0.2940
$0.2940 / $0.9800 Buy Now
DISTI # 6A8-TP
IBS Electronics 6A8 SERIES 800 V 6 A THROUGH-HOLE STANDARD DIODE RECTIFIER - R-6 Min Qty: 2000 Package Multiple: 1 0
  • 1,500 $0.1809
  • 2,000 $0.1849
  • 2,500 $0.1795
  • 7,500 $0.1756
  • 12,500 $0.1729
$0.1729 / $0.1849 Buy Now

Part Details for 6A8-TP

6A8-TP Part Data Attributes

Parametric Data
6A8-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
6A8-TP Micro Commercial Components Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, R-6, 2 PIN
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Package Description ROHS COMPLIANT, PLASTIC, R-6, 2 PIN
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer MCC
Additional Feature LOW LEAKAGE CURRENT
Application GENERAL PURPOSE
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 0.95 V
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 400 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Output Current-Max 6 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 800 V
Reverse Current-Max 10 µA
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for 6A8-TP

This table gives cross-reference parts and alternative options found for 6A8-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 6A8-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
6A8 Lite-On Semiconductor Corporation Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, PLASTIC PACKAGE-2 6A8-TP vs 6A8
6A8-AP Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, R-6, 2 PIN 6A8-TP vs 6A8-AP
6A8 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, PLASTIC, R-6, 2 PIN 6A8-TP vs 6A8
6A8 Uniohm Corp Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, PLASTIC, R-6, 2 PIN 6A8-TP vs 6A8
6A8 International Semiconductor Inc Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, PLASTIC, P600, 2 PIN 6A8-TP vs 6A8
6A8 Bytesonic Corporation Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, 6A8-TP vs 6A8
6A8 Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, PLASTIC, R-6, 2 PIN 6A8-TP vs 6A8
Part Number Manufacturer Composite Price Description Compare
6A8 Hitano Enterprise Corp Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, 6A8-TP vs 6A8
6A8-BP Micro Commercial Components Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, R-6, 2 PIN 6A8-TP vs 6A8-BP
6A8-GT3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, PLASTIC, R-6, 2 PIN 6A8-TP vs 6A8-GT3
PX6A06 Fuji Electric Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, PLASTIC, R-6, 2 PIN 6A8-TP vs PX6A06
6A8 Diodes Incorporated Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, PLASTIC, R-6, 2 PIN 6A8-TP vs 6A8
P600K-T3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, PLASTIC, P-600, 2 PIN 6A8-TP vs P600K-T3
CR6A8GPPBK Central Semiconductor Corp Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, 6A8-TP vs CR6A8GPPBK
P600K_B0_10001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, 6A8-TP vs P600K_B0_10001
P600K General Instrument Corp Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, 6A8-TP vs P600K
MR758-T3-LF Won-Top Electronics Co Ltd Check for Price Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, P-600, 2 PIN 6A8-TP vs MR758-T3-LF

6A8-TP Related Parts

6A8-TP Frequently Asked Questions (FAQ)

  • The recommended storage temperature for 6A8-TP is -40°C to 100°C.

  • Yes, the 6A8-TP is designed for high-reliability applications and is qualified to aerospace and defense standards.

  • The maximum surge current rating for the 6A8-TP is 100A for 10ms.

  • Yes, the 6A8-TP is designed to operate in high-temperature environments up to 150°C.

  • Yes, the 6A8-TP is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
