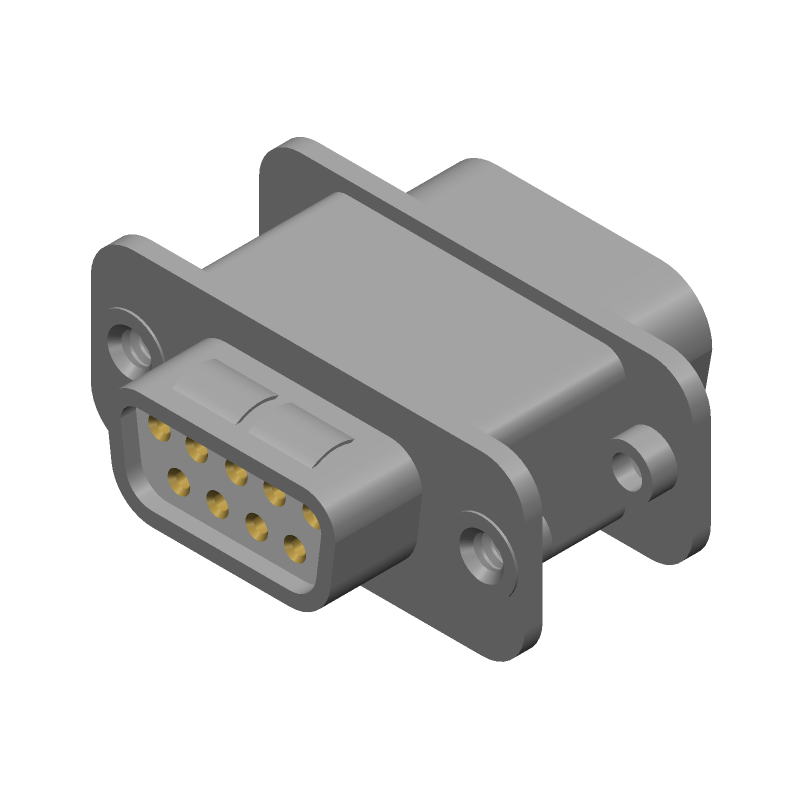

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 56F705-005-LI by Spectrum Control
Results Overview of 56F705-005-LI by Spectrum Control
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
56F705-005-LI Information
56F705-005-LI by Spectrum Control is a Rectangular Adapter.
Rectangular Adapters are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 56F705-005-LI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
657-56F705-005-LI
|
Mouser Electronics | D-Sub Adapters & Gender Changers 9P/S ADAPT. 4000pF RoHS: Compliant | 114 |
|
$55.3400 / $66.6000 | Buy Now |
|
DISTI #
56F705-005-LI
|
TTI | D-Sub Adapters & Gender Changers 9P/S ADAPT. 4000pF RoHS: Compliant pbFree: Pb-Free Min Qty: 1 Package Multiple: 1 Container: Tray |
Americas - 1198 In Stock |
|
$49.8300 / $55.5300 | Buy Now |
|
DISTI #
56F705-005-LI
|
Richardson RFPD | EMI FILTERED D-SUB CONNECTOR RoHS: Compliant Min Qty: 50 | 0 |
|
$45.9600 / $56.0500 | Buy Now |
Part Details for 56F705-005-LI
56F705-005-LI CAD Models
56F705-005-LI Part Data Attributes
|
|
56F705-005-LI
Spectrum Control
Buy Now
Datasheet
|
Compare Parts:
56F705-005-LI
Spectrum Control
Rectangular Connector Adapter, 9 Contacts(Side1), 9 Contacts(Side2), Female-Male, ROHS COMPLIANT
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | API TECHNOLOGIES CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.80.00 | |
| Samacsys Manufacturer | APITech | |
| Body Breadth | 0.494 inch | |
| Body Depth | 0.52 inch | |
| Body Length | 1.213 inch | |
| Body/Shell Style | PLUG-RECEPTACLE | |
| Connector Type | RECTANGULAR CONNECTOR ADAPTER | |
| Contact Finish Mating | GOLD | |
| Contact Finish Termination | GOLD | |
| Contact Gender | MALE-FEMALE | |
| Contact Material | COPPER ALLOY | |
| DIN Conformance | NO | |
| Empty Shell | NO | |
| Filter Feature | YES | |
| IEC Conformance | NO | |
| Insulator Material | GLASS FILLED POLYESTER | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Number of Contacts:Side 1 | 9 | |
| Number of Contacts:Side 2 | 9 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| Rated Current (Signal) | 5 A | |
| Reference Standard | UL | |
| Shell Finish | NICKEL | |
| Shell Material | ALUMINUM ALLOY/ZINC ALLOY | |
| Straight Connection | YES | |
| UL Flammability Code | 94V-0 |
56F705-005-LI Frequently Asked Questions (FAQ)
-
Spectrum Control recommends following the IPC-7351 standard for PCB land pattern and layout. Additionally, it's essential to ensure a solid ground plane under the component and to keep the signal traces as short as possible to minimize parasitic inductance.
-
The 56F705-005-LI has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the component.
-
Spectrum Control recommends using a reflow soldering process with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds. It's essential to follow the IPC-J-STD-020 standard for soldering and to use a solder with a melting point above 217°C (423°F).
-
Common issues with the 56F705-005-LI include overheating, signal integrity problems, and component damage due to incorrect soldering or handling. To troubleshoot, check the component's thermal management, signal integrity, and soldering quality. Consult the datasheet and application notes for more information.
-
Yes, the 56F705-005-LI is a high-frequency component and requires proper EMI/EMC design considerations. Ensure proper shielding, grounding, and decoupling to minimize electromagnetic interference. Follow the FCC and CE regulations for EMI/EMC compliance.
