5.0SMLJ75CA-TP by: Micro Commercial Components

Trans Voltage Suppressor Diode, 5000W, 75V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN

Part Details for 5.0SMLJ75CA-TP by Micro Commercial Components

Results Overview of 5.0SMLJ75CA-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

5.0SMLJ75CA-TP Information

5.0SMLJ75CA-TP by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 5.0SMLJ75CA-TP

Part # Distributor Description Stock Price Buy
DISTI # 5.0SMLJ75CA-TPMSCT-ND
DigiKey TVS DIODE 75VWM 121VC DO214AB Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 686
In Stock
  • 1 $1.7200
  • 10 $1.4100
  • 100 $0.9990
  • 500 $0.8190
  • 1,000 $0.7610
  • 3,000 $0.7379
  • 6,000 $0.7250
$0.7250 / $1.7200 Buy Now
DISTI # 833-5.0SMLJ75CA-TP
Mouser Electronics ESD Protection Diodes / TVS Diodes 5KW TVS SMC RoHS: Compliant 5013
  • 1 $1.7200
  • 10 $1.4100
  • 100 $0.9990
  • 250 $0.9980
  • 500 $0.8190
  • 1,000 $0.7610
  • 3,000 $0.7530
  • 6,000 $0.7250
  • 9,000 $0.7240
$0.7240 / $1.7200 Buy Now

Part Details for 5.0SMLJ75CA-TP

5.0SMLJ75CA-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

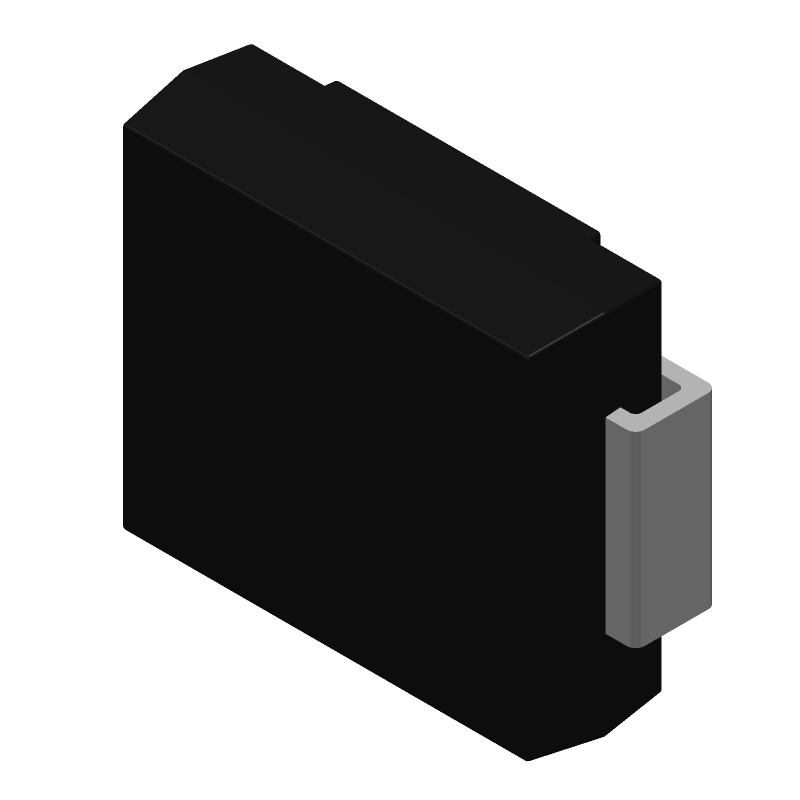

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

5.0SMLJ75CA-TP Part Data Attributes

Parametric Data
5.0SMLJ75CA-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
5.0SMLJ75CA-TP Micro Commercial Components Trans Voltage Suppressor Diode, 5000W, 75V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-214AB
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Additional Feature EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max 92.1 V
Breakdown Voltage-Min 83.3 V
Breakdown Voltage-Nom 87.7 V
Clamping Voltage-Max 121 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 5000 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
Power Dissipation-Max 6.5 W
Reference Standard IEC-61000-4-2; UL RECOGNIZED
Rep Pk Reverse Voltage-Max 75 V
Reverse Current-Max 5 µA
Reverse Test Voltage 75 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
