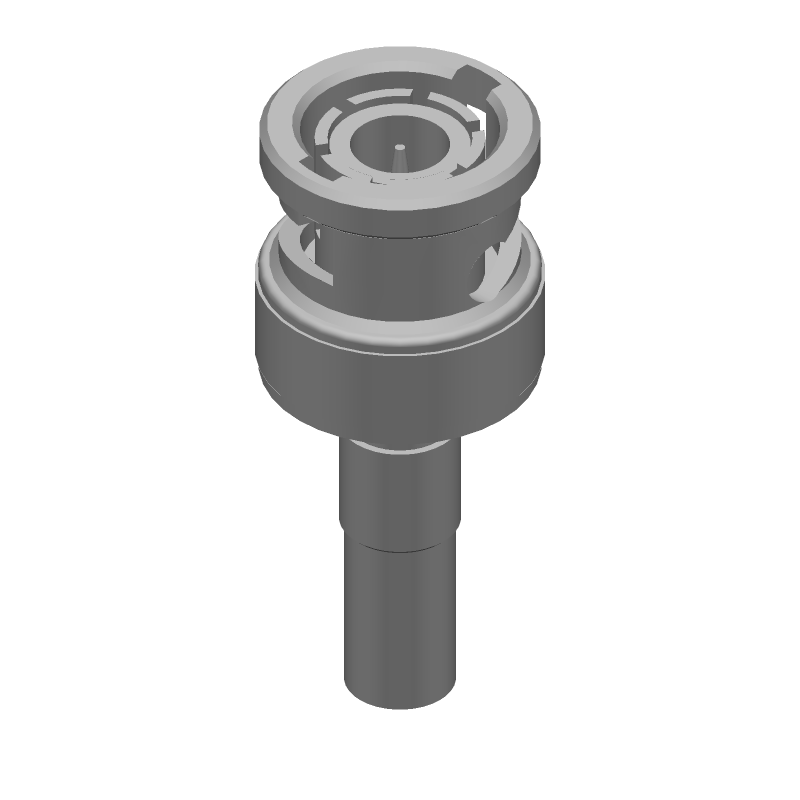

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 4-227079-3 by TE Connectivity
Results Overview of 4-227079-3 by TE Connectivity
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Electronic Manufacturing
Automotive
4-227079-3 Information
4-227079-3 by TE Connectivity is an RF BNC Connector.
RF BNC Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 4-227079-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG | 18 |
|
$7.6500 / $10.2000 | Buy Now |
|
DISTI #
4-227079-3
|
Richardson RFPD | RF COAXIAL CABLE MOUNT CONNECTOR Min Qty: 1 | 0 |
|
RFQ |
Part Details for 4-227079-3
4-227079-3 CAD Models
4-227079-3 Part Data Attributes
|
|
4-227079-3
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
4-227079-3
TE Connectivity
PLUG,COMMERCIAL BNC
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | COMPATIBLE CONTACT: 221607-5 | |
| Body/Shell Style | PLUG | |
| Characteristic Impedance | 50 Ω | |
| Connector Type | RF BNC CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Coupling Type | BAYONET | |
| DIN Conformance | NO | |
| EMI Shielded | NO | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Loss | 0.2 dB | |
| Insulator Material | POLYETHYLENE | |
| MIL Conformance | NO | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | CABLE | |
| Number Of Connectors | ONE | |
| Number of Ports | 1 | |
| Operating Frequency-Max | 4 GHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| Panel Mount | NO | |
| Shell Finish | NICKEL | |
| Shell Material | BRASS | |
| Termination Type | CRIMP | |
| Total Number of Contacts | 1 | |
| VSWR | 1.3 |
