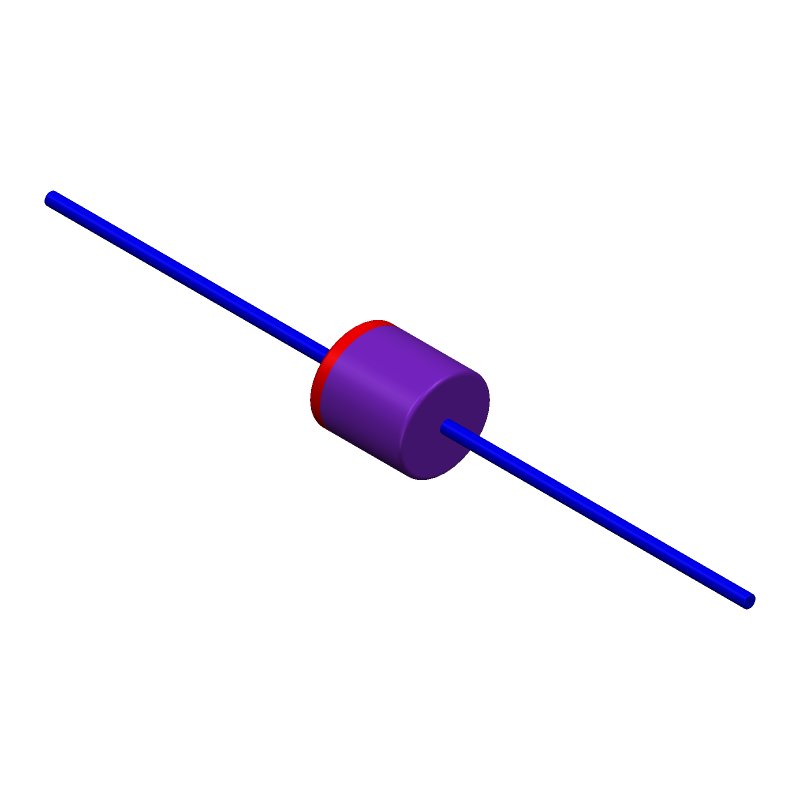

Overview of 3KP13CA-TP by Micro Commercial Components
Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
- Distributor Offerings: ( 3 listings )
- Number of FFF Equivalents: ( 0 crosses )
- CAD Models: ( Request Part )
- Number of Functional Equivalents: ( 8 crosses )
- Part Data Attributes ( Available )
- Reference Designs: ( Not Available )
Where used in Applications:
Industrial Automation
Price & Stock for 3KP13CA-TP by Micro Commercial Components
| Part # | Manufacturer | Description | Stock | Price | Buy | ||
|---|---|---|---|---|---|---|---|
|
DISTI #
353-3KP13CA-TP-ND
|
DigiKey | Interface Min Qty: 500 Lead time: 22 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.7294 | Buy Now | |
|
DISTI #
833-3KP13CA-TP
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 3000W TVS RoHS: Compliant | 0 |
|
$0.8860 / $1.5000 | Order Now | |
| Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 22 Weeks | 0 |
|
$0.5850 | Buy Now |
CAD Models for 3KP13CA-TP by Micro Commercial Components
Part Data Attributes for 3KP13CA-TP by Micro Commercial Components
|
|
|
|---|---|
|
Pbfree Code
|
Yes
|
|
Rohs Code
|
Yes
|
|
Part Life Cycle Code
|
Active
|
|
Ihs Manufacturer
|
MICRO COMMERCIAL COMPONENTS CORP
|
|
Package Description
|
ROHS COMPLIANT, PLASTIC, R-6, 2 PIN
|
|
Pin Count
|
2
|
|
Reach Compliance Code
|
not_compliant
|
|
ECCN Code
|
EAR99
|
|
HTS Code
|
8541.10.00.50
|
|
Additional Feature
|
PRSM-MIN
|
|
Breakdown Voltage-Max
|
15.9 V
|
|
Breakdown Voltage-Min
|
14.4 V
|
|
Breakdown Voltage-Nom
|
15.15 V
|
|
Case Connection
|
ISOLATED
|
|
Clamping Voltage-Max
|
21.5 V
|
|
Configuration
|
SINGLE
|
|
Diode Element Material
|
SILICON
|
|
Diode Type
|
TRANS VOLTAGE SUPPRESSOR DIODE
|
|
JESD-30 Code
|
O-PALF-W2
|
|
JESD-609 Code
|
e3
|
|
Moisture Sensitivity Level
|
1
|
|
Non-rep Peak Rev Power Dis-Max
|
3000 W
|
|
Number of Elements
|
1
|
|
Number of Terminals
|
2
|
|
Operating Temperature-Max
|
175 °C
|
|
Operating Temperature-Min
|
-55 °C
|
|
Package Body Material
|
PLASTIC/EPOXY
|
|
Package Shape
|
ROUND
|
|
Package Style
|
LONG FORM
|
|
Peak Reflow Temperature (Cel)
|
260
|
|
Polarity
|
BIDIRECTIONAL
|
|
Power Dissipation-Max
|
6.5 W
|
|
Qualification Status
|
Not Qualified
|
|
Reference Standard
|
UL RECOGNIZED
|
|
Rep Pk Reverse Voltage-Max
|
13 V
|
|
Surface Mount
|
NO
|
|
Technology
|
AVALANCHE
|
|
Terminal Finish
|
MATTE TIN
|
|
Terminal Form
|
WIRE
|
|
Terminal Position
|
AXIAL
|
|
Time@Peak Reflow Temperature-Max (s)
|
10
|
Alternate Parts for 3KP13CA-TP
This table gives cross-reference parts and alternative options found for 3KP13CA-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 3KP13CA-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| 3KP13C-BP | Trans Voltage Suppressor Diode, 3000W, 13V V(RWM), Bidirectional, 1 Element, Silicon, ROHS COMPLIANT, PLASTIC, R-6, 2 PIN | Micro Commercial Components | 3KP13CA-TP vs 3KP13C-BP |
| 3KP13CA | Trans Voltage Suppressor Diode, 3000W, 13V V(RWM), Bidirectional, 1 Element, Silicon, ROHS COMPLIANT, R-6, 2 PIN | World Products Inc | 3KP13CA-TP vs 3KP13CA |
| 3KP13CA-BP | Trans Voltage Suppressor Diode, 3000W, 13V V(RWM), Bidirectional, 1 Element, Silicon, ROHS COMPLIANT, PLASTIC, R-6, 2 PIN | Micro Commercial Components | 3KP13CA-TP vs 3KP13CA-BP |
| 3KP13CA-AP | Trans Voltage Suppressor Diode, 3000W, 13V V(RWM), Bidirectional, 1 Element, Silicon, ROHS COMPLIANT, PLASTIC, R-6, 2 PIN | Micro Commercial Components | 3KP13CA-TP vs 3KP13CA-AP |
| 3KP13CA | Trans Voltage Suppressor Diode, 3000W, 13V V(RWM), Bidirectional, 1 Element, Silicon, 8 X 7.50, PLASTIC, P-600, 2 PIN | SEMIKRON | 3KP13CA-TP vs 3KP13CA |
| 3KP13CB | Trans Voltage Suppressor Diode, 3000W, 13V V(RWM), Bidirectional, 1 Element, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2 | Littelfuse Inc | 3KP13CA-TP vs 3KP13CB |
| 3KP13CA | Trans Voltage Suppressor Diode, 3000W, 13V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, P-600, 2 PIN | Promax-Johnton Electronic Corporation | 3KP13CA-TP vs 3KP13CA |
| 3KP13C-TP | Trans Voltage Suppressor Diode, 3000W, 13V V(RWM), Bidirectional, 1 Element, Silicon, ROHS COMPLIANT, PLASTIC, R-6, 2 PIN | Micro Commercial Components | 3KP13CA-TP vs 3KP13C-TP |
