Circuit Protection / Electric Fuses / 37014000000
Datasheets

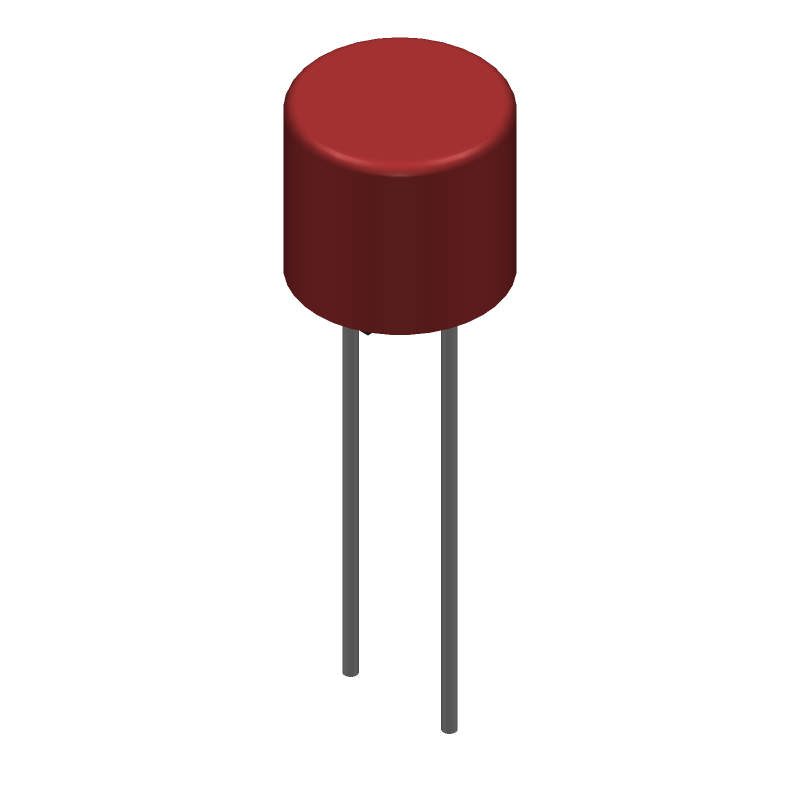

37014000000 by: Littelfuse Inc

Electric Fuse, Fast Blow, 4A, 250VAC, 40A (IR), Through Hole, TR5, HALOGEN FREE AND ROHS COMPLIANT

Part Details for 37014000000 by Littelfuse Inc

Results Overview of 37014000000 by Littelfuse Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

37014000000 Information

37014000000 by Littelfuse Inc is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.

Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.

Price & Stock for 37014000000

Part # Distributor Description Stock Price Buy
DISTI # 67K1861
Newark Pcb Fuse, Fast Acting/4A, 250Vac, Radial, Fuse Current:4A, Voltage Rating Vac:250V, Product Range... :Tr5 370 Series, Voltage Rating Vdc:-, Blow Characteristic:Fast Acting, Fuse Case Style:Radial Leaded, Breaking Capacity Current Ac:40A Rohs Compliant: Yes |Littelfuse 37014000000 more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 938
  • 1 $0.4700
  • 10 $0.4700
  • 25 $0.4700
  • 50 $0.4310
  • 100 $0.3980
  • 500 $0.3980
$0.3980 / $0.4700 Buy Now
DISTI # WK4962CT-ND
DigiKey FUSE BOARD MNT 4A 250VAC RADIAL Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Tape & Box (TB) 937
In Stock
  • 1 $0.8500
  • 5 $0.7020
  • 10 $0.6480
  • 50 $0.5372
  • 100 $0.4957
  • 250 $0.4456
  • 500 $0.4109
  • 1,000 $0.3788
  • 2,000 $0.3491
  • 3,000 $0.3327
  • 5,000 $0.3229
$0.3229 / $0.8500 Buy Now
DISTI # 576-37014000000
Mouser Electronics Fuses with Leads - Through Hole 250V IEC LBC LL 4A TR5 RoHS: Compliant 360
  • 1 $0.8500
  • 5 $0.7020
  • 10 $0.6480
  • 50 $0.5380
  • 100 $0.4960
  • 250 $0.4460
  • 500 $0.4110
  • 1,000 $0.3780
  • 2,000 $0.3490
$0.3490 / $0.8500 Buy Now
DISTI # 71594885
RS FUSE BOARD MOUNT 4A 250VAC RAD Min Qty: 1000 Package Multiple: 1 Container: Bulk 0
  • 1,000 $0.6600
  • 5,000 $0.6300
  • 100,000 $0.6000
  • 500,000 $0.5800
  • 1,000,000 $0.5600
$0.5600 / $0.6600 RFQ
Quest Components ELECTRIC FUSE, FAST BLOW, 4A, 250VAC, 40A (IR), THROUGH HOLE 1000
  • 1 $0.6975
  • 130 $0.3255
  • 615 $0.2906
$0.2906 / $0.6975 Buy Now
DISTI # 37014000000
TTI Fuses with Leads - Through Hole 250V IEC LBC LL 4A TR5 RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Ammo Pack Americas - 0
  • 1,000 $0.3210
  • 2,000 $0.3150
$0.3150 / $0.3210 Buy Now
DISTI # 3701400000
TTI Fuses with Leads - Through Hole 4A 250V FAST ACTING RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Ammo Pack Americas - 0
  • 1,000 $0.3490
  • 2,000 $0.3430
  • 100,000 $0.3260
$0.3260 / $0.3490 Buy Now
DISTI # 000000000007265649
Sager FUSE 250V IEC FA LBC TR5 LL AMMO 4A Min Qty: 1000 0
  • 1,000 $0.4378
  • 2,000 $0.4166
  • 4,000 $0.3974
$0.3974 / $0.4378 Buy Now

Part Details for 37014000000

37014000000 Part Data Attributes

Parametric Data
37014000000 Littelfuse Inc
Buy Now Datasheet
Compare Parts:
37014000000 Littelfuse Inc Electric Fuse, Fast Blow, 4A, 250VAC, 40A (IR), Through Hole, TR5, HALOGEN FREE AND ROHS COMPLIANT
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer LITTELFUSE INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.10.00.40
Samacsys Manufacturer LITTELFUSE
Blow Characteristic FAST
Body Height 8 mm
Body Length or Diameter 8.5 mm
Circuit Protection Type ELECTRIC FUSE
Fuse Size TR5
JESD-609 Code e3
Joule Integral-Nom 6 J
Mounting Feature THROUGH HOLE
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Packing Method AMMO PACK
Rated Breaking Capacity 40 A
Rated Current 4 A
Rated Voltage(AC) 250 V
Reference Standard CE; CCC; CUL; PSE; UKCA; UL; VDE
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Shape PIN WIRE
Trip Time or Delay 0.003 s

37014000000 Related Parts

37014000000 Frequently Asked Questions (FAQ)

  • The recommended storage temperature for the 37014000000 is -40°C to 125°C, as per the manufacturer's guidelines.

  • Yes, the 37014000000 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.

  • The maximum surge current rating for the 37014000000 is 200A, as specified in the datasheet. However, it's essential to consider the application's specific requirements and consult with the manufacturer for customized solutions.

  • Yes, the 37014000000 is compatible with lead-free soldering processes, making it suitable for modern manufacturing requirements.

  • The typical response time for the 37014000000 is <1ms, ensuring fast and reliable protection for your application.
