32.21.7.005.2000 by: FINDER SpA

Electromechanical Relay, SPDT, MBB, 7.5VDC (Coil), 0.2W@5VDCmW (Coil), Random, AC/DC Output

Part Details for 32.21.7.005.2000 by FINDER SpA

Results Overview of 32.21.7.005.2000 by FINDER SpA

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

32.21.7.005.2000 Information

32.21.7.005.2000 by FINDER SpA is an Other Relay.
Other Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
ST2000GXH32 Toshiba Electronic Devices & Storage Corporation IEGT, 4500 V, 2000 A, 2-168A2S
BQ2000TSN-B5 Texas Instruments Switch-mode multi-chemistry battery charger with dT/dt termination 8-SOIC -20 to 70
PTH12000LAZT Texas Instruments 0.8 to 1.8 V 6-A, 12-V Input Non-Isolated Wide-Adjust Module 5-Surface Mount Module -40 to 85

Price & Stock for 32.21.7.005.2000

Part # Distributor Description Stock Price Buy
DISTI # 1329651
Farnell RELAY, SPDT, 250VAC, 6A RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each 46
  • 1 $7.4093
  • 5 $7.1423
  • 10 $6.8753
  • 20 $6.5949
  • 50 $6.3279
$6.3279 / $7.4093 Buy Now
DISTI # 87340521
Verical Power Relay 5VDC 6A SPDT(20x10x10.7)mm THT RoHS: Compliant Min Qty: 15 Package Multiple: 1 Americas - 1012
  • 15 $4.8440
$4.8440 Buy Now
Bristol Electronics   120
RFQ
Quest Components   96
  • 1 $9.9120
  • 11 $6.6080
  • 39 $6.1124
$6.1124 / $9.9120 Buy Now
DISTI # 32.21.7.005.200
TME Relay: electromagnetic, SPDT, Ucoil: 5VDC, Icontacts max: 15A, PCB Min Qty: 1 980
  • 1 $3.4700
  • 20 $3.0800
  • 40 $2.9700
$2.9700 / $3.4700 Buy Now
DISTI # 32.21.7.005.2000
Maritex Electromagnetic relay, contact rating current 6A, coil voltage 5VDC, 1 changeover contact (1C), ... coil power 200mW, 3A/30VDC, 6A/230VAC more Min Qty: 1 Package Multiple: 1 20
  • 1 $3.4097
  • 20 $3.0240
  • 40 $2.9440
$2.9440 / $3.4097 Buy Now

Part Details for 32.21.7.005.2000

32.21.7.005.2000 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

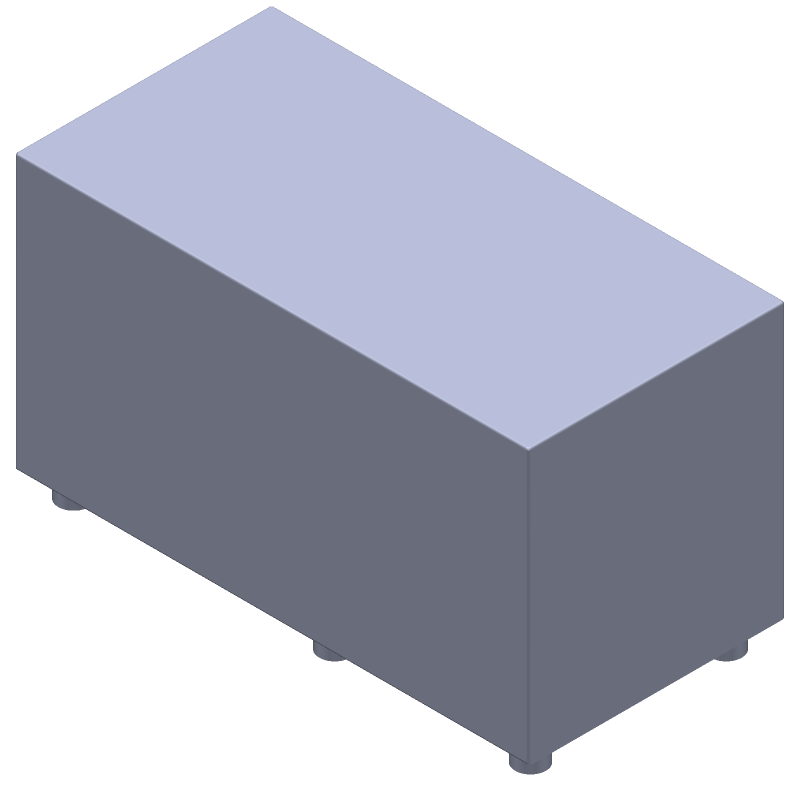

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

32.21.7.005.2000 Part Data Attributes

Parametric Data
32.21.7.005.2000 FINDER SpA
Buy Now Datasheet
Compare Parts:
32.21.7.005.2000 FINDER SpA Electromechanical Relay, SPDT, MBB, 7.5VDC (Coil), 0.2W@5VDCmW (Coil), Random, AC/DC Output
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer FINDER SPA
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer FINDER
Body Breadth 10 mm
Body Height 10.7 mm
Body Length or Diameter 20 mm
Coil Operate Voltage(DC) 3.9 V
Coil Power 200 mW
Coil Resistance 125 Ω
Coil Voltage(DC)-Max 7.5 V
Coil Voltage-Nom 5 V
Coil/Input Supply Type DC
Contact (AC) Max Power Rating R Load 1500VA@400VAC
Contact (AC) Max Rating R Load 15A@400VAC
Contact Current(AC)-Max 15 A
Contact Voltage(AC)-Max 400 V
Contact/Output Supply Type AC/DC
Electrical Life 100000 Cycle(s)
End Contact Material SILVER CADMIUM OXIDE
Input Switching Control Type Random
Number of Terminals 5
Operate Time 6 ms
Physical Dimension 20mm x 10mm x 10.7mm
Reference Standard UL; VDE
Relay Action MBB
Relay Form 1 FORM C
Relay Function SPDT
Release Time 4 ms
Terminal Length 0.003500127000254001 inch
Termination Type SOLDER

32.21.7.005.2000 Related Parts

32.21.7.005.2000 Frequently Asked Questions (FAQ)

  • The maximum switching frequency of the relay is 20 operations per minute.

  • The relay module is designed to operate in temperatures between -40°C and 85°C. However, it's recommended to derate the relay's performance at high temperatures above 60°C.

  • The relay requires a minimum load of 10mA to operate reliably. Operating the relay with a load below this threshold may lead to unreliable switching.

  • The relay module is designed for general-purpose use and may not meet the requirements for safety-critical applications. It's recommended to consult with a safety expert and conduct thorough testing before using the relay in a safety-critical application.

  • The expected lifespan of the relay is 10^7 operations, assuming normal operating conditions and proper usage.
