Diodes / Zener Diodes / 2EZ39D5-TP
Datasheets
2EZ39D5-TP by: Micro Commercial Components

Zener Diode, 39V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2

Part Details for 2EZ39D5-TP by Micro Commercial Components

Results Overview of 2EZ39D5-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Electronic Manufacturing Renewable Energy Automotive

2EZ39D5-TP Information

2EZ39D5-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 2EZ39D5-TP

Part # Distributor Description Stock Price Buy
DISTI # 2EZ39D5-TPMSTR-ND
DigiKey DIODE ZENER 39V 2W DO41 Min Qty: 5000 Lead time: 24 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 5,000 $0.1144
  • 10,000 $0.1047
  • 15,000 $0.0998
  • 25,000 $0.0942
  • 35,000 $0.0909
  • 50,000 $0.0877
$0.0877 / $0.1144 Buy Now
DISTI # 833-2EZ39D5-TP
Mouser Electronics Zener Diodes 39V 47mA 30Ohms RoHS: Compliant 0
  • 1 $0.4100
  • 10 $0.3140
  • 100 $0.1890
  • 500 $0.1750
  • 1,000 $0.1190
  • 5,000 $0.1090
  • 10,000 $0.0990
  • 25,000 $0.0900
  • 50,000 $0.0870
$0.0870 / $0.4100 Order Now
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 22 Weeks 0
  • 5,000 $0.0947
  • 10,000 $0.0930
  • 15,000 $0.0920
  • 20,000 $0.0908
$0.0908 / $0.0947 Buy Now

Part Details for 2EZ39D5-TP

2EZ39D5-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

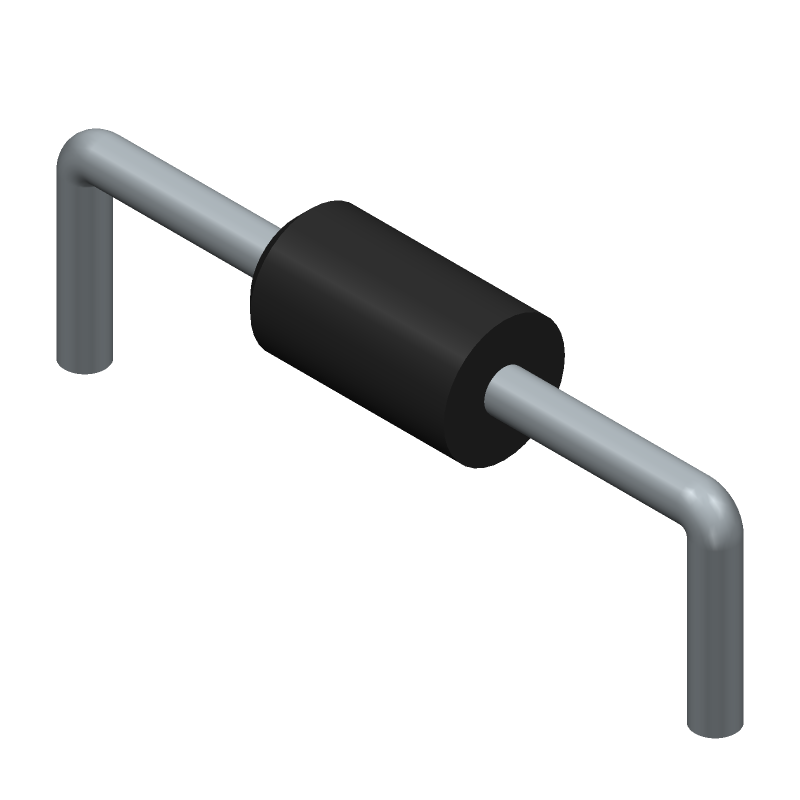

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

2EZ39D5-TP Part Data Attributes

Parametric Data
2EZ39D5-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
2EZ39D5-TP Micro Commercial Components Zener Diode, 39V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-41
Package Description O-PALF-W2
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 30 Ω
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Knee Impedance-Max 1000 Ω
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 2 W
Qualification Status Not Qualified
Reference Voltage-Nom 39 V
Reverse Current-Max 0.0005 µA
Surface Mount NO
Technology ZENER
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10
Voltage Tol-Max 5%
Working Test Current 12.8 mA

Alternate Parts for 2EZ39D5-TP

This table gives cross-reference parts and alternative options found for 2EZ39D5-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2EZ39D5-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MQ2EZ39D5E3TR Microsemi Corporation Check for Price Zener Diode, 39V V(Z), 5%, 3W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 2EZ39D5-TP vs MQ2EZ39D5E3TR
2EZ39D5-TP-HF Micro Commercial Components Check for Price Zener Diode, 2EZ39D5-TP vs 2EZ39D5-TP-HF
2EZ39D5-TB-LF Won-Top Electronics Co Ltd Check for Price Zener Diode, 39V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, 2EZ39D5-TP vs 2EZ39D5-TB-LF
2EZ39D5 Microsemi Corporation Check for Price Zener Diode, 39V V(Z), 5%, 1.19W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 2EZ39D5-TP vs 2EZ39D5
2EZ39D5 Micro Commercial Components Check for Price Zener Diode, 39V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, PLASTIC PACKAGE-2 2EZ39D5-TP vs 2EZ39D5
Part Number Manufacturer Composite Price Description Compare
2EZ39D5-T3-LF Won-Top Electronics Co Ltd Check for Price Zener Diode, 39V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, 2EZ39D5-TP vs 2EZ39D5-T3-LF
MX2EZ39D5E3 Microsemi Corporation Check for Price Zener Diode, 39V V(Z), 5%, 3W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN 2EZ39D5-TP vs MX2EZ39D5E3
2EZ39D5E3/TR Microsemi Corporation Check for Price Zener Diode, 39V V(Z), 5%, 1.19W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN 2EZ39D5-TP vs 2EZ39D5E3/TR
2EZ39D5/TR8 Microsemi Corporation Check for Price Zener Diode, 39V V(Z), 5%, 3W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 2EZ39D5-TP vs 2EZ39D5/TR8
2EZ39D5 EIC Semiconductor Inc Check for Price Zener Diode, 39V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 2EZ39D5-TP vs 2EZ39D5
MX2EZ39D5 Microsemi Corporation Check for Price Zener Diode, 39V V(Z), 5%, 1.19W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 2EZ39D5-TP vs MX2EZ39D5
MV2EZ39D5E3 Microsemi Corporation Check for Price Zener Diode, 39V V(Z), 5%, 3W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN 2EZ39D5-TP vs MV2EZ39D5E3
MQ2EZ39D5E3 Microsemi Corporation Check for Price Zener Diode, 39V V(Z), 5%, 3W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN 2EZ39D5-TP vs MQ2EZ39D5E3
2EZ39D5-BP Micro Commercial Components Check for Price Zener Diode, 39V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 2EZ39D5-TP vs 2EZ39D5-BP
MQ2EZ39D5 Microsemi Corporation Check for Price Zener Diode, 39V V(Z), 5%, 1.19W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 2EZ39D5-TP vs MQ2EZ39D5
