Diodes / Zener Diodes / 2EZ17D5
Datasheets
2EZ17D5 by:
Micro Commercial Components
Continental Device India Ltd
EIC Corporation
EIC Semiconductor Inc
Excel (Suzhou) Semiconductor Co Ltd
Luguang Electronic Technology Co Ltd
MERITEK Electronics Corporation
Micro Commercial Components
Microchip Technology Inc
Microsemi Corporation
SynSemi Inc
Won-Top Electronics Co Ltd
Not Found

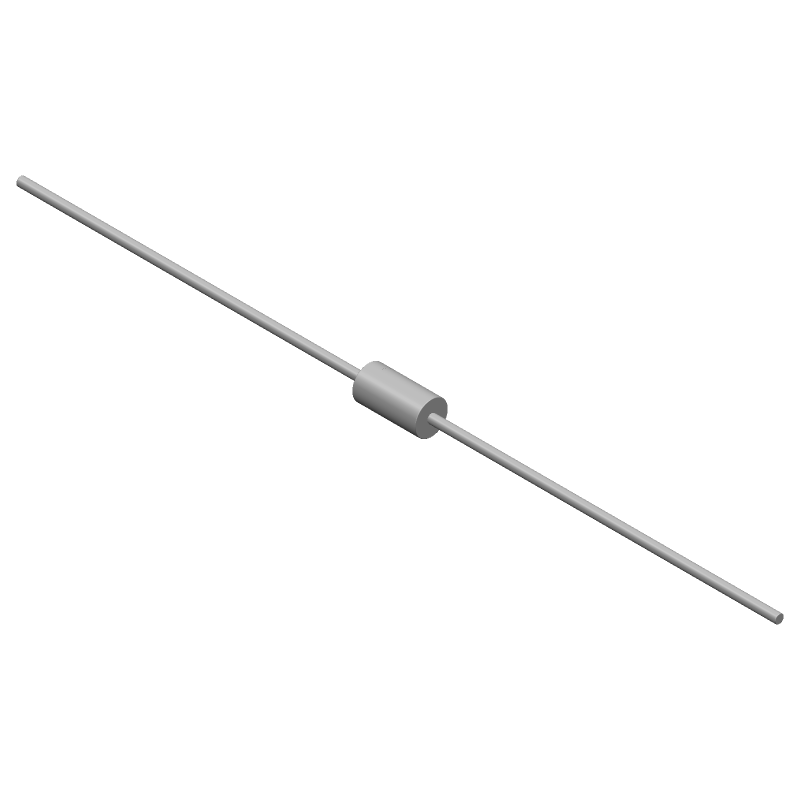

Zener Diode, 17V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, PLASTIC PACKAGE-2

Part Details for 2EZ17D5 by Micro Commercial Components

Results Overview of 2EZ17D5 by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Electronic Manufacturing Automotive

2EZ17D5 Information

2EZ17D5 by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Part Details for 2EZ17D5

2EZ17D5 Part Data Attributes

Parametric Data
2EZ17D5 Micro Commercial Components
Buy Now Datasheet
Compare Parts:
2EZ17D5 Micro Commercial Components Zener Diode, 17V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, PLASTIC PACKAGE-2
Select a part to compare:
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-41
Package Description PLASTIC PACKAGE-2
Pin Count 2
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 9 Ω
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Knee Impedance-Max 750 Ω
Number of Elements 1
Number of Terminals 2
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 2 W
Qualification Status Not Qualified
Reference Voltage-Nom 17 V
Reverse Current-Max 0.0005 µA
Surface Mount NO
Technology ZENER
Terminal Finish Tin (Sn)
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 3
Voltage Tol-Max 5%
Working Test Current 29.4 mA

Alternate Parts for 2EZ17D5

This table gives cross-reference parts and alternative options found for 2EZ17D5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2EZ17D5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
2EZ17D5/TR Microsemi Corporation Check for Price Zener Diode, 17V V(Z), 5%, 1.19W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 2EZ17D5 vs 2EZ17D5/TR
2EZ17D5-T Micro Commercial Components Check for Price Zener Diode, 2EZ17D5 vs 2EZ17D5-T
2EZ17D5-BP-HF Micro Commercial Components Check for Price Zener Diode, 2EZ17D5 vs 2EZ17D5-BP-HF
MQ2EZ17D5 Microsemi Corporation Check for Price Zener Diode, 17V V(Z), 5%, 1.19W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 2EZ17D5 vs MQ2EZ17D5
2EZ17D5-TB Won-Top Electronics Co Ltd Check for Price Zener Diode, 17V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, 2EZ17D5 vs 2EZ17D5-TB
2EZ17D5E3/TR Microsemi Corporation Check for Price Zener Diode, 17V V(Z), 5%, 1.19W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN 2EZ17D5 vs 2EZ17D5E3/TR
MV2EZ17D5E3 Microsemi Corporation Check for Price Zener Diode, 18V V(Z), 5%, 3W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN 2EZ17D5 vs MV2EZ17D5E3
Part Number Manufacturer Composite Price Description Compare
2EZ17D5-T3 Won-Top Electronics Co Ltd Check for Price Zener Diode, 17V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, 2EZ17D5 vs 2EZ17D5-T3
2EZ17D5-TB-LF Won-Top Electronics Co Ltd Check for Price Zener Diode, 17V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, 2EZ17D5 vs 2EZ17D5-TB-LF
MQ2EZ17D5E3TR Microsemi Corporation Check for Price Zener Diode, 18V V(Z), 5%, 3W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 2EZ17D5 vs MQ2EZ17D5E3TR
MX2EZ17D5E3TR Microsemi Corporation Check for Price Zener Diode, 18V V(Z), 5%, 3W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN 2EZ17D5 vs MX2EZ17D5E3TR
MX2EZ17D5 Microsemi Corporation Check for Price Zener Diode, 17V V(Z), 5%, 1.19W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 2EZ17D5 vs MX2EZ17D5
MQ2EZ17D5E3 Microsemi Corporation Check for Price Zener Diode, 18V V(Z), 5%, 3W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN 2EZ17D5 vs MQ2EZ17D5E3
2EZ17D5/TR8 Microsemi Corporation Check for Price Zener Diode, 18V V(Z), 5%, 3W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 2EZ17D5 vs 2EZ17D5/TR8
SZ3FB18L Solid State Devices Inc (SSDI) Check for Price Zener Diode, 18V V(Z), 5%, 3W, Silicon, Unidirectional, HERMETIC SEALED, GLASS PACKAGE-2 2EZ17D5 vs SZ3FB18L
2EZ17D5E3/TR8 Microsemi Corporation Check for Price Zener Diode, 18V V(Z), 5%, 3W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 2EZ17D5 vs 2EZ17D5E3/TR8
2EZ17D5-LF Won-Top Electronics Co Ltd Check for Price Zener Diode, 17V V(Z), 5%, 2W, Silicon, Unidirectional, DO-41, 2EZ17D5 vs 2EZ17D5-LF
