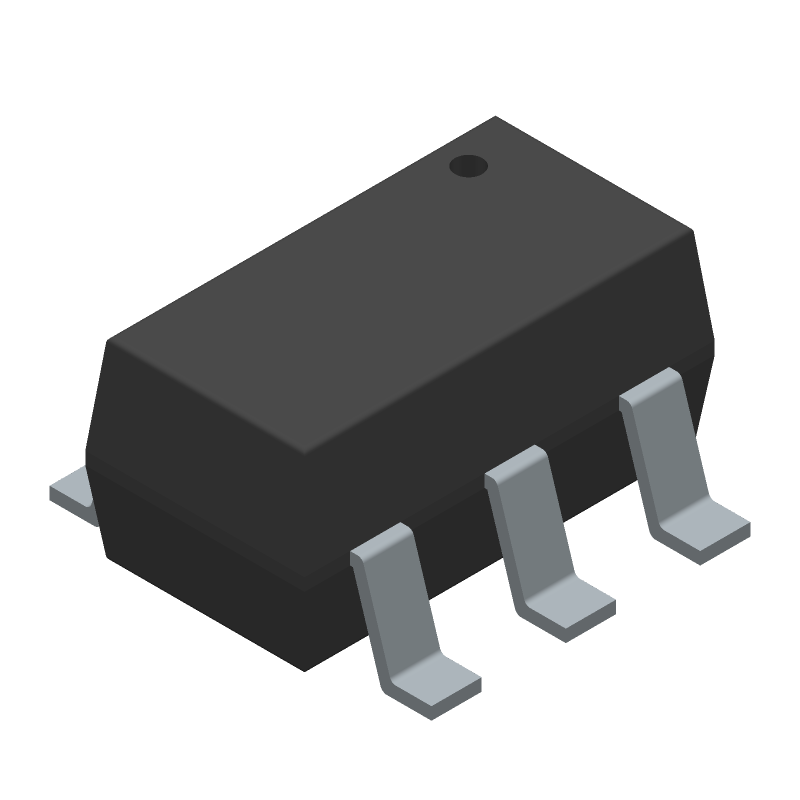

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 25AA02E48T-I/OT by Microchip Technology Inc
Results Overview of 25AA02E48T-I/OT by Microchip Technology Inc
- Distributor Offerings: (23 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
25AA02E48T-I/OT Information
25AA02E48T-I/OT by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for 25AA02E48T-I/OT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28X4158
|
Newark | Serial Eeprom, 2Kbit, 10Mhz, Sot-23-6, Memory Configuration:256 X 8Bit, Interfaces:Spi, Clock Fre... more RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 21000 |
|
$0.4890 | Buy Now |
|
DISTI #
45P4905
|
Newark | Serial Eeprom, 2Kbit, 10Mhz, Sot-23-6, Memory Configuration:256 X 8Bit, Interfaces:Spi, Clock Fre... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2229 |
|
$0.4800 / $0.5150 | Buy Now |
|
DISTI #
25AA02E48T-I/OTCT-ND
|
DigiKey | IC EEPROM 2KBIT SPI SOT23-6 Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5663 In Stock |
|
$0.4841 / $0.5200 | Buy Now |
|
DISTI #
28X4158
|
Avnet Americas | EEPROM, EUI-48 Node Identity, 2 Kbit, 256 x 8bit, SPI, 10 MHz, SOT-23, 6 Pins - Tape and Reel (Alt:... more RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 48 Weeks, 1 Days Container: Reel |
21000 Partner Stock |
|
$0.4890 | Buy Now |
|
DISTI #
45P4905
|
Avnet Americas | EEPROM, EUI-48 Node Identity, 2 Kbit, 256 x 8bit, SPI, 10 MHz, SOT-23, 6 Pins - Product that comes ... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 36 Weeks, 1 Days Container: Ammo Pack |
2229 Partner Stock |
|
$0.5100 / $0.5200 | Buy Now |
|
DISTI #
25AA02E48T-I/OT
|
Avnet Americas | EEPROM, EUI-48 Node Identity, 2 Kbit, 256 x 8bit, SPI, 10 MHz, SOT-23, 6 Pins - Tape and Reel (Alt:... more RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 4 Weeks, 0 Days Container: Reel | 0 |
|
$0.4347 / $0.4500 | Buy Now |
|
DISTI #
579-25AA02E48T-I/OT
|
Mouser Electronics | EEPROM 2K, 256x8, 1.8V MAC Addressable RoHS: Compliant | 23860 |
|
$0.4700 / $0.5000 | Buy Now |
|
DISTI #
V72:2272_06421891
|
Arrow Electronics | EEPROM Serial-SPI 2K-bit 256 x 8 2.5V/3.3V/5V 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2337 Container: Cut Strips | Americas - 2774 |
|
$0.4832 / $0.5325 | Buy Now |
|
DISTI #
25AA02E48T-I/OT
|
Microchip Technology Inc | 2K, 256 X 8, 1.8V SER EE IND, SOT-23, Projected EOL: 2034-03-04 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Reel | 182832 |
|
$0.4200 / $0.5000 | Buy Now |
|
DISTI #
70414300
|
RS | 2K 256x8 1.8V Ser.EEPROM | Microchip Technology Inc. 25AA02E48T-I/OT RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 47 Weeks, 0 Days Container: Bulk | 3280 |
|
$0.3600 | Buy Now |
Part Details for 25AA02E48T-I/OT
25AA02E48T-I/OT CAD Models
25AA02E48T-I/OT Part Data Attributes
|
|
25AA02E48T-I/OT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
25AA02E48T-I/OT
Microchip Technology Inc
256 X 8 SPI BUS SERIAL EEPROM, PDSO6, ROHS COMPLIANT, PLASTIC, SOT-23, 6 PIN
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOT-23 | |
| Package Description | SOT-23, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | ALSO OPERATES AT 2.5V TO 5.5V @5MHZ AND 1.8V TO 2.5V @3MHZ | |
| Clock Frequency-Max (fCLK) | 10 MHz | |
| Data Retention Time-Min | 200 | |
| Endurance | 1000000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Memory Density | 2048 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 6 | |
| Number of Words | 256 words | |
| Number of Words Code | 256 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 256X8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 5 V | |
| Qualification Status | Not Qualified | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.45 mm | |
| Serial Bus Type | SPI | |
| Standby Current-Max | 0.000001 A | |
| Supply Current-Max | 0.005 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 1.55 mm | |
| Write Cycle Time-Max (tWC) | 5 ms | |
| Write Protection | HARDWARE |
25AA02E48T-I/OT Frequently Asked Questions (FAQ)
-
The 25AA02E48T-I/OT has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
-
The 25AA02E48T-I/OT uses a page write buffer to handle page writes. The device can write up to 128 bytes of data in a single page write operation.
-
The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in a write-protected state, and any attempt to write to the device will be ignored.
-
Yes, the 25AA02E48T-I/OT can be used in a multi-master SPI bus system. The device has a built-in arbitration mechanism that allows it to operate in a multi-master environment.
-
The recommended operating voltage range for the 25AA02E48T-I/OT is 1.8V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
