Memory / EEPROMs / 24AA024H-I/MS
Datasheets
24AA024H-I/MS by: Microchip Technology Inc

256 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8

Part Details for 24AA024H-I/MS by Microchip Technology Inc

Results Overview of 24AA024H-I/MS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics

24AA024H-I/MS Information

24AA024H-I/MS by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for 24AA024H-I/MS

Part # Distributor Description Stock Price Buy
DISTI # 77M3511
Newark Serial Eeprom, 2Kbit, 400Khz, Msop-8, Memory Configuration:256K X 8Bit, Interfaces:I2C, Clock Fre... quency Max:400Khz, Ic Case/Package:Msop, No. Of Pins:8Pins, Supply Voltage Min:1.7V, Supply Voltage Max:5.5V, Msl:Msl 1 - Unlimited Rohs Compliant: Yes |Microchip 24AA024H-I/MS more RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $0.3960
$0.3960 Buy Now
DISTI # 24AA024H-I/MS-ND
DigiKey IC EEPROM 2KBIT I2C 400KHZ 8MSOP Min Qty: 1000 Lead time: 20 Weeks Container: Tube Temporarily Out of Stock
  • 1,000 $0.3811
$0.3811 Buy Now
DISTI # 24AA024H-I/MS
Avnet Americas EEPROM Serial-I2C 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V 8-Pin MSOP - Rail/Tube (Alt: 24AA024H-I/MS) RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Lead time: 31 Weeks, 0 Days Container: Tube 0
  • 1,000 $0.3375
  • 1,200 $0.3348
  • 2,200 $0.3321
  • 5,000 $0.3294
  • 10,000 $0.3260
$0.3260 / $0.3375 Buy Now
DISTI # 24AA024H-I/MS
Avnet Americas EEPROM Serial-I2C 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V 8-Pin MSOP - Rail/Tube (Alt: 24AA024H-I/MS) RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Lead time: 31 Weeks, 0 Days Container: Tube 0
  • 1,000 $0.3375
  • 1,200 $0.3348
  • 2,200 $0.3321
  • 5,000 $0.3294
  • 10,000 $0.3260
$0.3260 / $0.3375 Buy Now
DISTI # 579-24AA024H-I/MS
Mouser Electronics EEPROM 2K 256 X 8 SER EE 1.8V IND 1/2 ARAY WP RoHS: Compliant 0
  • 1 $0.4100
  • 25 $0.3800
  • 100 $0.3700
$0.3700 / $0.4100 Order Now
DISTI # 24AA024H-I/MS
Microchip Technology Inc 2K SEEPROM Addressable Memory Device, MSOP, Projected EOL: 2034-08-22 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 20 Weeks, 0 Days Container: Tube 1200

Alternates Available
  • 1 $0.4100
  • 25 $0.3800
  • 100 $0.3700
  • 1,000 $0.3500
  • 5,000 $0.3400
$0.3400 / $0.4100 Buy Now
DISTI # 70046861
RS 2K, 256 X 8 SERIAL EE, 1.8V IND, 1/2 ARRAY WP | Microchip Technology Inc. 24AA024H-I/MS RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 1,000 $0.6900
  • 10,000 $0.6500
  • 50,000 $0.6200
  • 100,000 $0.5900
$0.5900 / $0.6900 RFQ
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 100 0
  • 1,000 $0.3560
  • 2,000 $0.3510
  • 3,000 $0.3480
  • 5,000 $0.3450
  • 10,000 $0.3380
$0.3380 / $0.3560 Buy Now
Onlinecomponents.com EEPROM - Serial I²C - 2Kb (256 x 8) - Half-Array Write Protect - 1.7V - 8-Pin MSOP - Tube RoHS: Compliant 1200 Factory Stock
  • 100 $0.4030
  • 500 $0.3699
  • 1,000 $0.3643
  • 2,500 $0.3506
  • 5,000 $0.3418
  • 7,500 $0.3366
  • 10,000 $0.3316
  • 15,000 $0.3266
$0.3266 / $0.4030 Buy Now
DISTI # 24AA024H-I/MS
TME IC: EEPROM memory, 2kbEEPROM, I2C, 256x8bit, 1.7÷5.5V, 400kHz Min Qty: 3 0
  • 3 $0.5000
  • 10 $0.4600
  • 25 $0.4400
  • 100 $0.3800
$0.3800 / $0.5000 RFQ
NAC 2K, 256 X 8 SERIAL EE, 1.8V IND, 1/2 ARRAY WP - Package: 8 MSOP 3x3mm TUBE RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Container: Tube 0
  • 1 $0.4200
  • 100 $0.3800
  • 500 $0.3500
  • 1,000 $0.3400
$0.3400 / $0.4200 Buy Now
DISTI # 24AA024H-I/MS
Avnet Silica EEPROM SerialI2C 2Kbit 256 x 8 18V25V33V5V 8Pin MSOP (Alt: 24AA024H-I/MS) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 22 Weeks, 0 Days Silica - 0
Buy Now
DISTI # 24AA024H-I/MS
EBV Elektronik EEPROM SerialI2C 2Kbit 256 x 8 18V25V33V5V 8Pin MSOP (Alt: 24AA024H-I/MS) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 21 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics EEPROM - Serial I²C - 2Kb (256 x 8) - Half-Array Write Protect - 1.7V - 8-Pin MSOP - Tube RoHS: Compliant 1200 Factory Stock
  • 100 $0.4030
  • 500 $0.3699
  • 1,000 $0.3643
  • 2,500 $0.3506
  • 5,000 $0.3418
  • 7,500 $0.3366
  • 10,000 $0.3316
  • 15,000 $0.3266
$0.3266 / $0.4030 Buy Now

Part Details for 24AA024H-I/MS

24AA024H-I/MS CAD Models

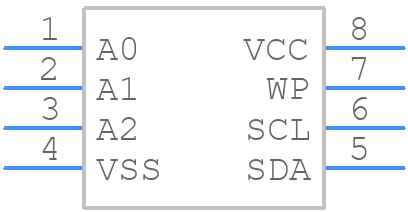

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

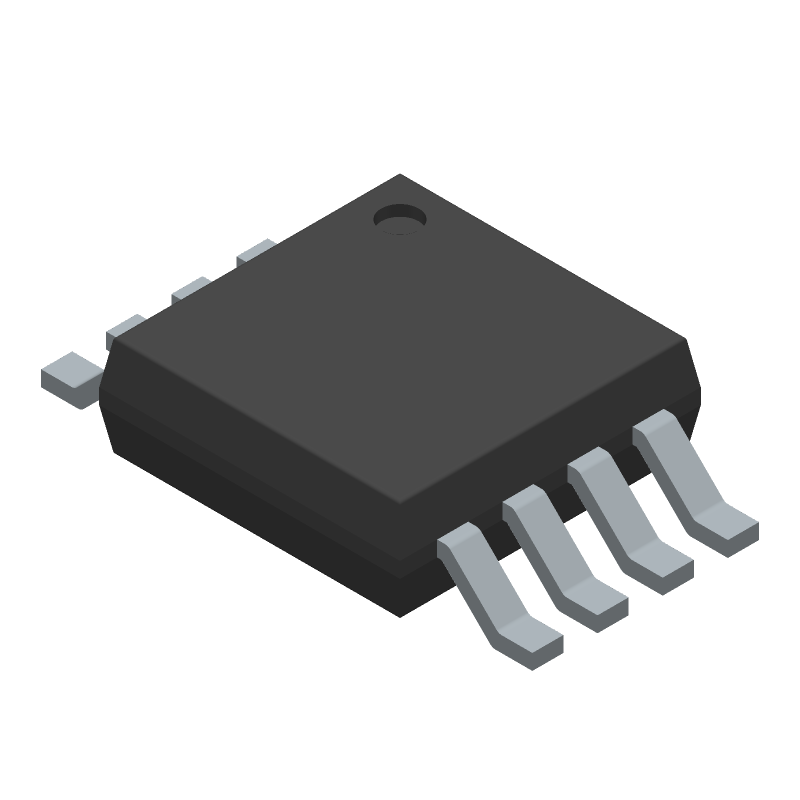

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

24AA024H-I/MS Part Data Attributes

Parametric Data
24AA024H-I/MS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
24AA024H-I/MS Microchip Technology Inc 256 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code MSOP
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 20 Weeks
Samacsys Manufacturer Microchip
Clock Frequency-Max (fCLK) 0.4 MHz
Data Retention Time-Min 200
Endurance 1000000 Write/Erase Cycles
I2C Control Byte 1010DDDR
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 3 mm
Memory Density 2048 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Ports 1
Number of Terminals 8
Number of Words 256 words
Number of Words Code 256
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 256X8
Output Characteristics OPEN-DRAIN
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.19
Package Shape SQUARE
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Programming Voltage 2.5 V
Qualification Status Not Qualified
Screening Level TS 16949
Seated Height-Max 1.1 mm
Serial Bus Type I2C
Standby Current-Max 0.000005 A
Supply Current-Max 0.003 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.7 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 3 mm
Write Cycle Time-Max (tWC) 5 ms
Write Protection HARDWARE

Alternate Parts for 24AA024H-I/MS

This table gives cross-reference parts and alternative options found for 24AA024H-I/MS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 24AA024H-I/MS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
93C56CT-I/MNY Microchip Technology Inc Check for Price 128 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TDFN-8 24AA024H-I/MS vs 93C56CT-I/MNY
BR34E02NUX-3TR ROHM Semiconductor $0.4365 EEPROM, 256X8, Serial, CMOS, PDSO8, 2 X 3 MM, ROHS COMPLIANT, VSON-8 24AA024H-I/MS vs BR34E02NUX-3TR
BR93L66RFVJ-WE2 ROHM Semiconductor Check for Price EEPROM, 256X16, Serial, CMOS, PDSO8, LEAD FREE, TSSOP-8 24AA024H-I/MS vs BR93L66RFVJ-WE2
S-25A080B0A-K8T2U3 ABLIC Inc. Check for Price IC EEPROM 8K SPI 6.5MHZ 8TMSOP 24AA024H-I/MS vs S-25A080B0A-K8T2U3
93AA56AT-I/MNY Microchip Technology Inc Check for Price 256 X 8 MICROWIRE BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TDFN-8 24AA024H-I/MS vs 93AA56AT-I/MNY
24AA64F-I/MS Microchip Technology Inc $0.5820 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, PLASTIC, MSOP-8 24AA024H-I/MS vs 24AA64F-I/MS
93LC56CT-E/MNY Microchip Technology Inc $0.5330 128 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TDFN-8 24AA024H-I/MS vs 93LC56CT-E/MNY
93LC56BT-I/MNY Microchip Technology Inc Check for Price 128 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TDFN-8 24AA024H-I/MS vs 93LC56BT-I/MNY
BR35H160FVM-WCTR ROHM Semiconductor Check for Price EEPROM, 2KX8, Serial, CMOS, PDSO8, ROHS COMPLIANT, MSOP-8 24AA024H-I/MS vs BR35H160FVM-WCTR
BR24S64FVJ-WE2 ROHM Semiconductor Check for Price EEPROM, 8KX8, Serial, CMOS, PDSO8, ROHS COMPLIANT, TSSOP-8 24AA024H-I/MS vs BR24S64FVJ-WE2
