2213SM-06G-TB by: SPC Multicomp

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Ivory Insulator,

Part Details for 2213SM-06G-TB by SPC Multicomp

Results Overview of 2213SM-06G-TB by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

2213SM-06G-TB Information

2213SM-06G-TB by SPC Multicomp is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 2213SM-06G-TB

Part # Distributor Description Stock Price Buy
DISTI # 51AC3045
Newark Conn, Header, 6Pos, 2Row, 2.54Mm, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of ... Rows:2Rows, No. Of Contacts:6Contacts, Contact Termination Type:Surface Mount, Product Range:-, Connector Shroud:Unshrouded Rohs Compliant: Yes |Multicomp Pro 2213SM-06G-TB more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 3801
  • 1 $0.0380
  • 10 $0.0380
  • 25 $0.0380
$0.0380 Buy Now
DISTI # 79926516
Verical 2213SM-06G-TB Min Qty: 1316 Package Multiple: 1 Americas - 3801
  • 1,316 $0.0555
  • 2,500 $0.0539
$0.0539 / $0.0555 Buy Now
DISTI # SMC-2213SM-06G-TB
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 1
RFQ

Part Details for 2213SM-06G-TB

2213SM-06G-TB CAD Models

  • Part Symbol

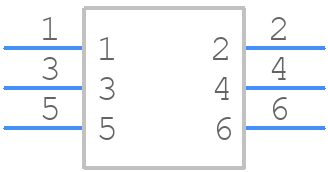

    Part Symbol
