Diodes / Zener Diodes / 1N4743AP-TP
Datasheets
1N4743AP-TP by: Micro Commercial Components

Zener Diode,

Part Details for 1N4743AP-TP by Micro Commercial Components

Results Overview of 1N4743AP-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1N4743AP-TP Information

1N4743AP-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1N4743AP-TP

Part # Distributor Description Stock Price Buy
DISTI # 353-1N4743AP-TPTR-ND
DigiKey DIODE ZENER 13V 1W DO-41 Min Qty: 5000 Lead time: 28 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 5,000 $0.0822
  • 10,000 $0.0748
  • 15,000 $0.0710
  • 25,000 $0.0668
  • 35,000 $0.0643
  • 50,000 $0.0618
  • 125,000 $0.0575
$0.0575 / $0.0822 Buy Now
DISTI # 833-1N4743AP-TP
Mouser Electronics Zener Diodes 1.0W ZENER RoHS: Compliant 0
  • 1 $0.3800
  • 10 $0.2670
  • 100 $0.1350
  • 1,000 $0.0930
  • 5,000 $0.0780
  • 10,000 $0.0690
  • 25,000 $0.0630
  • 50,000 $0.0600
  • 100,000 $0.0570
$0.0570 / $0.3800 Order Now

Part Details for 1N4743AP-TP

1N4743AP-TP CAD Models

  • Part Symbol

    Part Symbol

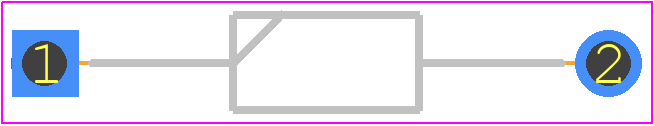

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1N4743AP-TP Part Data Attributes

Parametric Data
1N4743AP-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
1N4743AP-TP Micro Commercial Components Zener Diode,
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 10 Ω
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Knee Impedance-Max 700 Ω
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -65 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 1 W
Reference Voltage-Nom 13 V
Reverse Current-Max 5 µA
Reverse Test Voltage 9.9 V
Surface Mount NO
Technology ZENER
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10
Voltage Tol-Max 5%
Working Test Current 19 mA

Alternate Parts for 1N4743AP-TP

This table gives cross-reference parts and alternative options found for 1N4743AP-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4743AP-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N4743A-PT/R PanJit Semiconductor Check for Price Zener Diode, 13V V(Z), 5%, 1W 1N4743AP-TP vs 1N4743A-PT/R
1N4743AP-BP Micro Commercial Components Check for Price Zener Diode, 1N4743AP-TP vs 1N4743AP-BP
1N4743A-PBF Digitron Semiconductors Check for Price Zener Diode 1N4743AP-TP vs 1N4743A-PBF
1N4743APE3 Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN 1N4743AP-TP vs 1N4743APE3
1N4743AP-BP-HF Micro Commercial Components Check for Price Zener Diode, 1N4743AP-TP vs 1N4743AP-BP-HF
1N4743A-P Suzhou Good-Ark Electronics Co Ltd Check for Price Zener Diode, 13V V(Z), 5%, 1W 1N4743AP-TP vs 1N4743A-P
1N4743A-PT/R13 PanJit Semiconductor Check for Price Zener Diode, 1N4743AP-TP vs 1N4743A-PT/R13
Part Number Manufacturer Composite Price Description Compare
1N4743APE3/TR12 Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN 1N4743AP-TP vs 1N4743APE3/TR12
1N4743A-P Promax-Johnton Electronic Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2 1N4743AP-TP vs 1N4743A-P
1N4743APE3/TR12 Microchip Technology Inc $0.9600 Zener Diode, 13V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL 1N4743AP-TP vs 1N4743APE3/TR12
1N4743APTR Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 1N4743AP-TP vs 1N4743APTR
1N4743AP Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN 1N4743AP-TP vs 1N4743AP
1N4743APE3/TR8 Microsemi Corporation Check for Price Zener Diode, 13V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL, ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN 1N4743AP-TP vs 1N4743APE3/TR8
1N4743AP/TR8 Microchip Technology Inc $1.9200 Zener Diode, 13V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL 1N4743AP-TP vs 1N4743AP/TR8
1N4743APE3/TR8 Microchip Technology Inc $0.9600 Zener Diode, 13V V(Z), 5%, 1W, Silicon, Unidirectional, DO-204AL 1N4743AP-TP vs 1N4743APE3/TR8
1N4743AP-AP-HF Micro Commercial Components Check for Price Zener Diode, 1N4743AP-TP vs 1N4743AP-AP-HF
1N4743AP-TP-HF Micro Commercial Components Check for Price Zener Diode, 1N4743AP-TP vs 1N4743AP-TP-HF

1N4743AP-TP Related Parts

1N4743AP-TP Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 1N4743AP-TP is between 250°C to 260°C for a maximum of 10 seconds.

  • No, the 1N4743AP-TP is a standard recovery diode and is not suitable for high-frequency applications. It's recommended to use a fast recovery diode or a schottky diode for high-frequency applications.

  • The maximum surge current that the 1N4743AP-TP can handle is 30A for a duration of 8.3ms.

  • Yes, the 1N4743AP-TP is available in a lead-free package that meets the RoHS (Restriction of Hazardous Substances) directive.

  • The thermal resistance of the 1N4743AP-TP diode is 25°C/W junction-to-ambient and 10°C/W junction-to-lead.
