09185065902 by: HARTING Technology Group

Board Euro Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Beige Insulator, Receptacle,

Part Details for 09185065902 by HARTING Technology Group

Results Overview of 09185065902 by HARTING Technology Group

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

09185065902 Information

09185065902 by HARTING Technology Group is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 09185065902

Part # Distributor Description Stock Price Buy
DISTI # 93C6056
Newark Header Connector, pcb Mount, recept,6 Contacts, pin,0.1 Pitch, pc Tail Terminal, latch & Eject |... Harting 09185065902 more RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $3.8900
  • 250 $3.4100
  • 500 $3.3100
  • 1,000 $2.8100
$2.8100 / $3.8900 Buy Now
DISTI # 09185065902-ND
DigiKey CONN HEADER VERT 6POS 2.54MM Min Qty: 100 Lead time: 10 Weeks Container: Bulk Temporarily Out of Stock
  • 100 $2.8513
$2.8513 Buy Now
DISTI # 617-09185065902
Mouser Electronics Headers & Wire Housings SEK18 SVML STD STR45 RLG 06P AU0.76 RoHS: Compliant 0
  • 1 $4.6900
  • 10 $4.2700
  • 20 $4.0400
  • 50 $3.9500
  • 100 $2.8500
$2.8500 / $4.6900 Order Now
DISTI # 70741393
RS Headers, SEK18 SVML STD STR45 RLG 06P AU0.76 | HARTING 09185065902 RoHS: Compliant Min Qty: 100 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk 0
  • 100 $4.3100
  • 200 $3.9700
  • 400 $3.4500
$3.4500 / $4.3100 RFQ
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks 0
  • 100 $2.4200
$2.4200 Buy Now
DISTI # HRT09185065902
Heilind Electronics SEKIDC STRAIGHT MALE, 4.5MM TA Americas - 0 in Stock
Buy Now
DISTI # 09185065902
TME Connector: IDC, socket, male, PIN: 6, straight, THT, 2.54mm, SEK Min Qty: 100 0
  • 100 $1.9300
$1.9300 RFQ

Part Details for 09185065902

09185065902 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

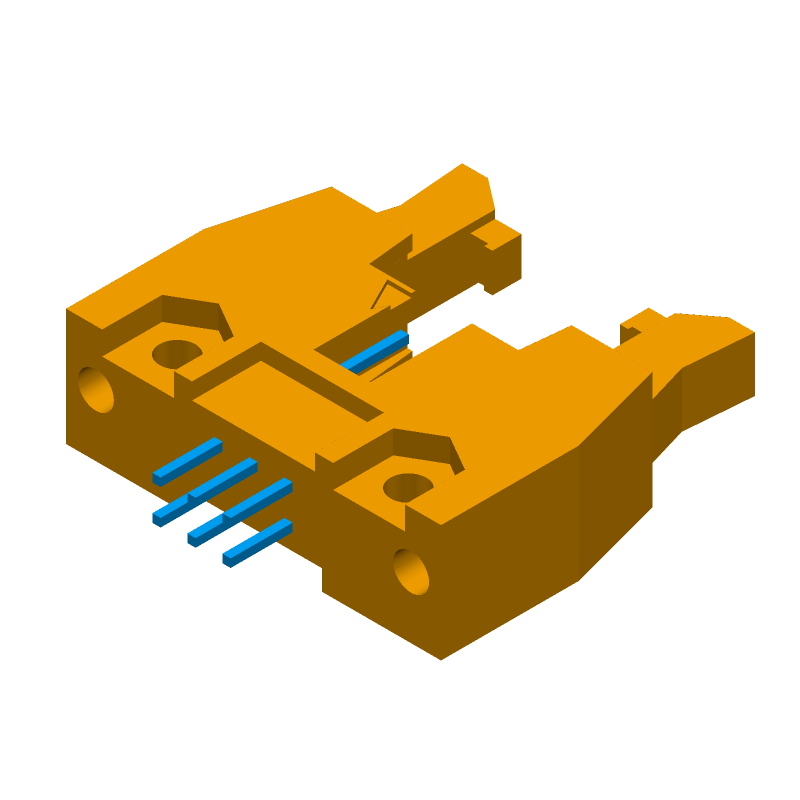

  • 3D Model
