Capacitors / Ceramic Capacitors / 08053A331KAT2A
Datasheets
08053A331KAT2A by: Kyocera AVX Components

Capacitor, Ceramic, Chip, General Purpose, 330pF, 25V, ±10%, C0G/NP0, 0805 (2012 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel

Part Details for 08053A331KAT2A by Kyocera AVX Components

Results Overview of 08053A331KAT2A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

08053A331KAT2A Information

08053A331KAT2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 08053A331KAT2A

Part # Distributor Description Stock Price Buy
DISTI # 66M3580
Newark Capacitor Ceramic 330Pf 25V, C0G, 10%, 0805, Full Reel, Capacitance:330Pf, Voltage(Dc):25V, Capac... itor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:C0G/Np0, Product Range:- Rohs Compliant: Yes |Kyocera Avx 08053A331KAT2A more RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.0570
  • 5,000 $0.0530
  • 10,000 $0.0460
  • 20,000 $0.0390
  • 30,000 $0.0320
$0.0320 / $0.0570 Buy Now
DISTI # KGM21BCG1E331KT
Avnet Americas Multilayer Ceramic Capacitor, 330 pF, 25 V, ? 10%, C0G (NP0), 0805 [2012 Metric] - Tape and Reel (Al... t: KGM21BCG1E331KT) more RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel 20000 Factory Stock
  • 4,000 $0.0290
  • 8,000 $0.0286
  • 16,000 $0.0282
  • 24,000 $0.0277
  • 32,000 $0.0274
$0.0274 / $0.0290 Buy Now
DISTI # 581-08053A331KAT2A
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM21BCG1E331KT NEW GLOBAL PN 25V 330pF A 581-KGM21BCG1... E331KT more RoHS: Compliant 6651
  • 1 $0.2100
  • 10 $0.1210
  • 100 $0.0730
  • 500 $0.0550
  • 1,000 $0.0490
  • 4,000 $0.0480
  • 8,000 $0.0400
  • 24,000 $0.0350
  • 48,000 $0.0340
$0.0340 / $0.2100 Buy Now
DISTI # KGM21BCG1E331KT
Avnet Abacus Multilayer Ceramic Capacitor 330 pF 25 V 10 C0G NP0 0805 2012 Metric - Tape and Reel (Alt: KGM21BCG... 1E331KT) more RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 16 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for 08053A331KAT2A

08053A331KAT2A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

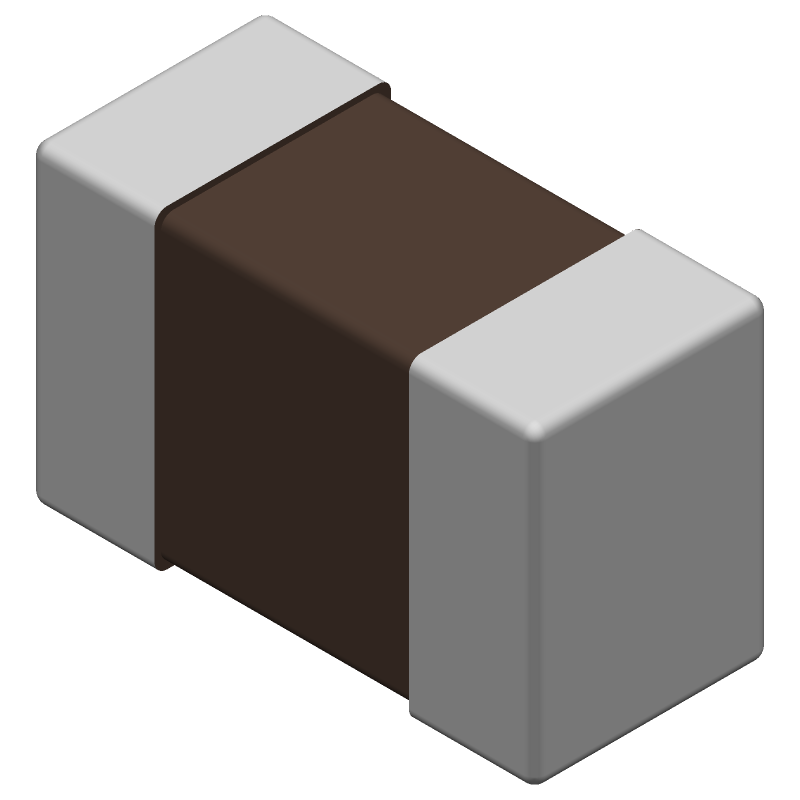

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

08053A331KAT2A Part Data Attributes

Parametric Data
08053A331KAT2A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
08053A331KAT2A Kyocera AVX Components Capacitor, Ceramic, Chip, General Purpose, 330pF, 25V, ±10%, C0G/NP0, 0805 (2012 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Part Package Code 0805
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 12 Weeks
Samacsys Manufacturer Kyocera AVX
Capacitance 0.00033 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.94 mm
JESD-609 Code e3
Length 2.01 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 25 V
Size Code 0805
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 1.25 mm

Alternate Parts for 08053A331KAT2A

This table gives cross-reference parts and alternative options found for 08053A331KAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 08053A331KAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BC053A331KZJ3AA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00033uF, Surface Mount, 0805, CHIP 08053A331KAT2A vs BC053A331KZJ3AA2
BC053A331KZB3AA3 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00033uF, Surface Mount, 0805, CHIP 08053A331KAT2A vs BC053A331KZB3AA3
BC053A331KZJ6AA3 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00033uF, Surface Mount, 0805, CHIP 08053A331KAT2A vs BC053A331KZJ6AA3
BC053A331KZT6SA0 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00033uF, Surface Mount, 0805, CHIP 08053A331KAT2A vs BC053A331KZT6SA0
08053A331KA12A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00033uF, Surface Mount, 0805, 08053A331KAT2A vs 08053A331KA12A
BC053A331KZB3SA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00033uF, Surface Mount, 0805, CHIP 08053A331KAT2A vs BC053A331KZB3SA2
BC053A331KZT1SA0 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00033uF, Surface Mount, 0805, CHIP 08053A331KAT2A vs BC053A331KZT1SA0
BC053A331KZJ1AA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00033uF, Surface Mount, 0805, CHIP 08053A331KAT2A vs BC053A331KZJ1AA2
08053A331K4Z2A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00033uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT 08053A331KAT2A vs 08053A331K4Z2A
BC053A331KZJ6SA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00033uF, Surface Mount, 0805, CHIP 08053A331KAT2A vs BC053A331KZJ6SA2

08053A331KAT2A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 08053A331KAT2A capacitor is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, the 08053A331KAT2A capacitor is designed for high-frequency applications up to 1 GHz, making it suitable for use in RF and microwave circuits.

  • The maximum voltage derating for the 08053A331KAT2A capacitor is 80% of the rated voltage, which is 33 V in this case.

  • The 08053A331KAT2A capacitor is designed to operate in a humid environment, but it's recommended to follow the manufacturer's guidelines for moisture sensitivity to prevent damage.

  • The ESR of the 08053A331KAT2A capacitor is typically around 50 mΩ at 100 kHz, but this value may vary depending on the frequency and operating conditions.
