TPS2010AD by: Texas Instruments

5.5-V, 0.3-A, 35-mΩ, load switch 8-SOIC -40 to 85

Part Details for TPS2010AD by Texas Instruments

Results Overview of TPS2010AD by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TPS2010AD Information

TPS2010AD by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for TPS2010AD

Part # Distributor Description Stock Price Buy
DISTI # 296-2555-5-ND
DigiKey IC PWR SWITCH N-CHAN 1:1 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube 163
In Stock
  • 1 $2.5100
  • 10 $1.8680
  • 75 $1.5611
  • 150 $1.4897
  • 300 $1.4309
  • 525 $1.3911
  • 1,050 $1.3498
  • 2,550 $1.3074
  • 5,025 $1.2814
$1.2814 / $2.5100 Buy Now
DISTI # 595-TPS2010AD
Mouser Electronics Power Switch ICs - Power Distribution 0.4A 2.7-5.5V Single Hi-Side MOSFET A 595-TPS2010ADR RoHS: Compliant 481
  • 1 $2.5100
  • 10 $1.8700
  • 75 $1.4500
  • 525 $1.2300
$1.2300 / $2.5100 Buy Now
Quest Components POWER SUPPLY SUPPORT CIRCUIT, FIXED, 1 CHANNEL, PDSO8 396
  • 1 $3.3600
  • 120 $1.1760
  • 256 $1.0920
$1.0920 / $3.3600 Buy Now
Rochester Electronics TPS2010A 0.4A 2.7 to 5.5V Single High-Side MOSFET Switch IC, No Fault Reporting, Active-Low Enable RoHS: Compliant Status: Active Min Qty: 1 31
  • 1 $1.3300
  • 25 $1.3000
  • 100 $1.2500
  • 500 $1.2000
  • 1,000 $1.1300
$1.1300 / $1.3300 Buy Now
Ameya Holding Limited CURRENT LIMITED POWER DISTRIBUTION SWTCH 14717
RFQ
DISTI # SMC-TPS2010AD
Sensible Micro Corporation Ic 0.3A Pwr Switch 8-Soic RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1131 Container: Tubes 4
RFQ
Win Source Electronics IC 0.3A PWR DIST SWITCH 8-SOIC 9645
  • 30 $1.7390
  • 75 $1.4269
  • 110 $1.3823
  • 150 $1.3377
  • 195 $1.2932
  • 260 $1.1594
$1.1594 / $1.7390 Buy Now

Part Details for TPS2010AD

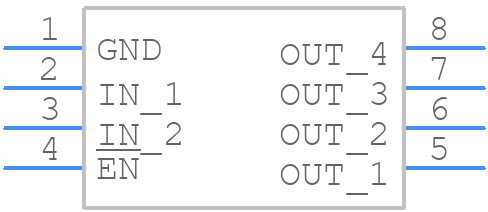

TPS2010AD CAD Models

TPS2010AD Part Data Attributes

TPS2010AD Texas Instruments
Buy Now Datasheet
Compare Parts:
TPS2010AD Texas Instruments 5.5-V, 0.3-A, 35-mΩ, load switch 8-SOIC -40 to 85
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description SOIC-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Adjustable Threshold NO
Analog IC - Other Type LOAD SWITCH
Input Voltage-Max 5.5 V
Input Voltage-Min 2.7 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.9 mm
Moisture Sensitivity Level 1
Number of Channels 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Current-Max (Isup) 0.1 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm

Alternate Parts for TPS2010AD

This table gives cross-reference parts and alternative options found for TPS2010AD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS2010AD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TPS2010ADRG4 Texas Instruments Check for Price 0.4A 2.7 to 5.5V Single High-Side MOSFET Switch IC, No Fault Reporting, Active-Low Enable 8-SOIC -40 to 85 TPS2010AD vs TPS2010ADRG4
TPS2010ADR Texas Instruments Check for Price 5.5-V, 0.3-A, 35-mΩ, load switch 8-SOIC -40 to 85 TPS2010AD vs TPS2010ADR
TPS2010ADG4 Texas Instruments Check for Price 0.4A 2.7 to 5.5V Single High-Side MOSFET Switch IC, No Fault Reporting, Active-Low Enable 8-SOIC -40 to 85 TPS2010AD vs TPS2010ADG4
TPS2010APWPR Texas Instruments Check for Price 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO14, PLASTIC, HTSSOP-14 TPS2010AD vs TPS2010APWPR
TPS2010APWPRG4 Texas Instruments Check for Price 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO14, PLASTIC, HTSSOP-14 TPS2010AD vs TPS2010APWPRG4
TPS2010Y Texas Instruments Check for Price 1-CHANNEL POWER SUPPLY SUPPORT CKT, UUC8, DIE-8 TPS2010AD vs TPS2010Y
TPS2010PWLE Texas Instruments Check for Price 0.4A, 2.7 to 5.5V Single High-Side MOSFET Switch IC, No Fault Reporting, Active-Low Enable 14-TSSOP TPS2010AD vs TPS2010PWLE
TPS2010D Texas Instruments $1.9731 5.5-V, 0.4-A, 95-mΩ, load switch 8-SOIC -40 to 85 TPS2010AD vs TPS2010D
TPS2010PWRG4 Texas Instruments Check for Price 0.4A, 2.7 to 5.5V Single High-Side MOSFET Switch IC, No Fault Reporting, Active-Low Enable 14-TSSOP -40 to 85 TPS2010AD vs TPS2010PWRG4
TPS2010DR Texas Instruments Check for Price 5.5-V, 0.4-A, 95-mΩ, load switch 8-SOIC -40 to 85 TPS2010AD vs TPS2010DR

TPS2010AD Related Parts

TPS2010AD Frequently Asked Questions (FAQ)

  • The maximum input voltage that can be applied to the TPS2010AD is 12V, but it's recommended to keep it below 10V for reliable operation.

  • To ensure fast switching, make sure to use a low-ESR capacitor (less than 1 ohm) and keep the input voltage above 2.7V. Also, minimize the PCB trace inductance and use a low-inductance layout.

  • The minimum input voltage required for the TPS2010AD to operate is 2.7V, but it's recommended to keep it above 3V for reliable operation.

  • To reduce power consumption in standby mode, connect the EN pin to GND and ensure the input voltage is below 2.7V. This will put the device in shutdown mode, reducing the quiescent current to less than 1uA.

  • The maximum current that the TPS2010AD can handle is 2A, but it's recommended to keep it below 1.5A for reliable operation and to prevent overheating.
