Optoelectronics / Optocoupler / PS2505L-1-A
Datasheets
PS2505L-1-A by:

AC Input Single, , /

Part Details for PS2505L-1-A by Renesas Electronics Corporation

Overview of PS2505L-1-A by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Transportation and Logistics Renewable Energy Telecommunications Automotive Robotics and Drones

Price & Stock for PS2505L-1-A

Part # Distributor Description Stock Price Buy
DISTI # 559-1079-ND
DigiKey OPTOISOLATOR 5KV TRANS 4SMD Min Qty: 1 Lead time: 18 Weeks Container: Tube 553
In Stock
  • 1 $1.0300
  • 10 $0.6740
  • 100 $0.4414
  • 1,000 $0.3484
  • 2,000 $0.3252
  • 5,000 $0.3136
  • 10,000 $0.3090
  • 25,000 $0.3020
$0.3020 / $1.0300 Buy Now
DISTI # PS2505L-1-A
Avnet Americas Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD Magazine - Rail/Tube (Alt: PS2505L-1-A) RoHS: Compliant Min Qty: 4400 Package Multiple: 100 Lead time: 18 Weeks, 0 Days Container: Tube 0
  • 4,400 $0.3335
  • 4,600 $0.3266
  • 9,000 $0.3197
  • 22,000 $0.3128
  • 44,000 $0.3059
  • 220,000 $0.2990
  • 440,000 $0.2921
$0.2921 / $0.3335 Buy Now
DISTI # 551-PS2505L-1-A
Mouser Electronics Transistor Output Optocouplers Hi-Iso AC Input 1-Ch RoHS: Compliant 40254
  • 1 $1.0300
  • 10 $0.6740
  • 100 $0.4420
  • 500 $0.4200
  • 1,000 $0.3490
  • 2,500 $0.3260
  • 10,000 $0.3090
  • 25,000 $0.3020
$0.3020 / $1.0300 Buy Now
Future Electronics PS2505 Series Single Ch 80 Vce 5 kVrms AC Input SMT Response Photocoupler -DIP-4 RoHS: Compliant pbFree: Yes Min Qty: 300 Package Multiple: 100 Container: Tube 0
Tube
  • 100 $0.4750
  • 400 $0.4550
  • 1,500 $0.4350
  • 3,000 $0.4250
  • 7,500 $0.4050
$0.4050 / $0.4750 Buy Now
Renesas Electronics America OPTOISOLATOR 5KV TRANS 4SMD Min Qty: 1 Container: Tube 553
  • 1 $1.0300
  • 10 $0.6740
  • 100 $0.4414
  • 1,000 $0.3484
  • 2,000 $0.3252
  • 5,000 $0.3136
  • 10,000 $0.3090
  • 25,000 $0.3020
$0.3020 / $1.0300 Buy Now
DISTI # PS2505L-1-A
Avnet Silica Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD Magazine (Alt: PS2505L-1-A) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 20 Weeks, 0 Days Silica - 0
Buy Now

Part Details for PS2505L-1-A

PS2505L-1-A CAD Models

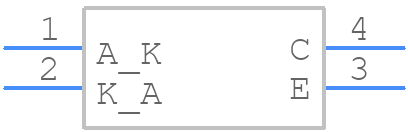

  • Part Symbol

    Part Symbol

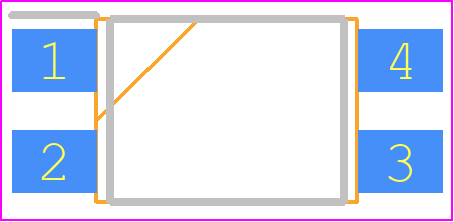

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PS2505L-1-A Part Data Attributes:

Parametric Data
PS2505L-1-A Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
PS2505L-1-A Renesas Electronics Corporation AC Input Single, , /
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer RENESAS ELECTRONICS CORP
Reach Compliance Code compliant
HTS Code 8541.40.80.00
Factory Lead Time 18 Weeks
Samacsys Manufacturer Renesas Electronics
Additional Feature UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min 80 V
Configuration SINGLE
Current Transfer Ratio-Nom 300%
Dark Current-Max 100 nA
Forward Current-Max 0.08 A
Isolation Voltage-Max 5000 V
JESD-609 Code e6
Number of Elements 1
Operating Temperature-Max 100 °C
Operating Temperature-Min -55 °C
Optoelectronic Device Type AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Terminal Finish TIN BISMUTH

Alternate Parts for PS2505L-1-A

This table gives cross-reference parts and alternative options found for PS2505L-1-A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PS2505L-1-A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Description Manufacturer Compare
PS2505L-1-A AC Input-Transistor Output Optocoupler, 1-Element, 5000V Isolation, LEAD FREE, SURFACE MOUNT, PLASTIC, DIP-4 NEC Electronics Group PS2505L-1-A vs PS2505L-1-A
PS2505L-1 AC Input-Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-4 California Eastern Laboratories (CEL) PS2505L-1-A vs PS2505L-1
Part Number Description Manufacturer Compare
PS2566L-1-A AC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation Renesas Electronics Corporation PS2505L-1-A vs PS2566L-1-A
H11AA3.300 AC Input-Transistor Output Optocoupler, 1-Element, 5300V Isolation, QT Optoelectronics PS2505L-1-A vs H11AA3.300
H11AA4 NPN-OUTPUT AC-INPUT OPTOCOUPLER,1-CHANNEL,1KV ISOLATION,DIP Intersil Corporation PS2505L-1-A vs H11AA4
PS2565-1 AC Input-Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4 NEC Electronics Group PS2505L-1-A vs PS2565-1
TIL193ASM Transistor Output Optocoupler, 4-Element, 5300V Isolation, SURFACE MOUNT PACKAGE-16 Isocom Components PS2505L-1-A vs TIL193ASM
TLP624-2 Transistor Output Optocoupler, 2-Element, 5300V Isolation, ROHS COMPLIANT, PLASTIC, DIP-8 Isocom Components PS2505L-1-A vs TLP624-2
TIL193B-SM Optocoupler - Transistor Output, 4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, SURFACE MOUNT PACKAGE-16 Isocom Components PS2505L-1-A vs TIL193B-SM
PS2566-1 AC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-4 NEC Electronics Group PS2505L-1-A vs PS2566-1
LTV827SA 2 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, DIP-8 Lite-On Semiconductor Corporation PS2505L-1-A vs LTV827SA
H11AA1 AC Input-Transistor Output Optocoupler, 1-Element, 1060V Isolation Harris Semiconductor PS2505L-1-A vs H11AA1

PS2505L-1-A Related Parts
