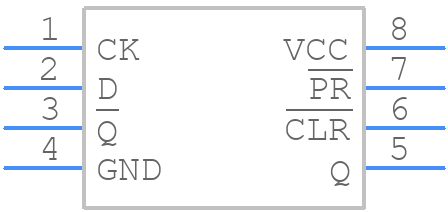

Part Symbol
-
Footprint
-

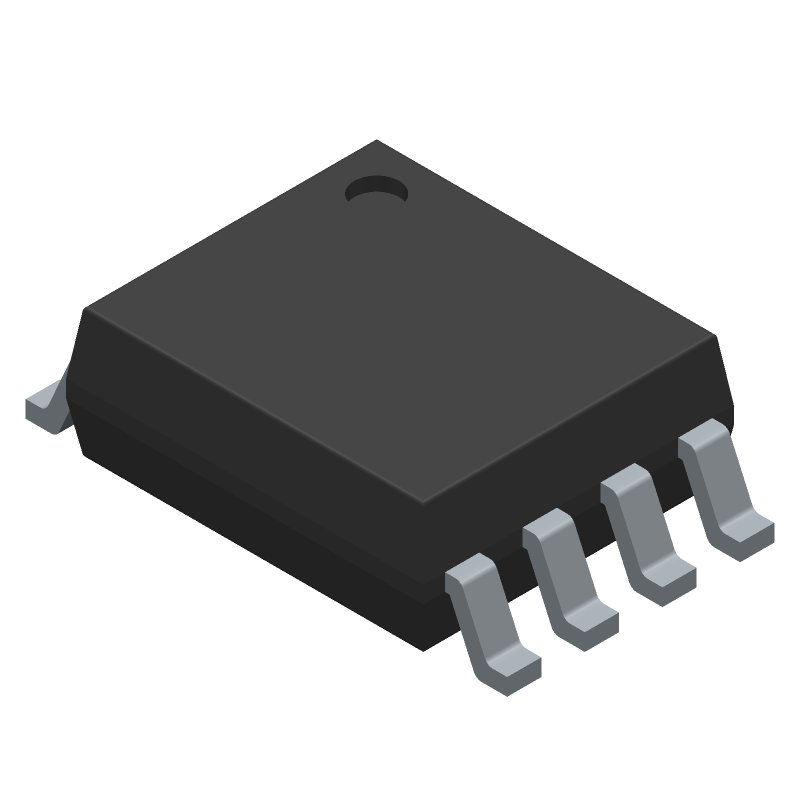

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NC7SZ74K8X by onsemi
Overview of NC7SZ74K8X by onsemi
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (10 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
Price & Stock for NC7SZ74K8X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53M9509
|
Newark | Ic, Nc7Sz Tiny, Smd, Us-8, Logic Family/Base Number:Nc7S74, Flip-Flop Type:D, Propagation Delay:2.6Ns, Frequency:200Mhz, Output Current:32Ma, Logic Case Style:Us8, No. Of Pins:8Pins, Trigger Type:Positive Edge, Ic Output Rohs Compliant: Yes |Onsemi NC7SZ74K8X Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.4700 | Buy Now |
|
DISTI #
12X9047
|
Newark | Flip Flop, D, 2.6Ns, Us8-8, Full Reel, Logic Family/Base Number:Nc7S74, Flip-Flop Type:D, Propagation Delay:2.6Ns, Frequency:200Mhz, Output Current:32Ma, Logic Case Style:Us8, No. Of Pins:8Pins, Trigger Type:Positive Edge, Msl:- Rohs Compliant: Yes |Onsemi NC7SZ74K8X Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1130 / $0.1740 | Buy Now |
|
DISTI #
58K9468
|
Newark | D-Type Flip Flop, Single, Us8-8, Logic Family/Base Number:Nc7S74, Flip-Flop Type:D, Propagation Delay:2.6Ns, Frequency:200Mhz, Output Current:32Ma, Logic Case Style:Us8, No. Of Pins:8Pins, Trigger Type:Positive Edge, Msl:- Rohs Compliant: Yes |Onsemi NC7SZ74K8X Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.1560 | Buy Now |
|
DISTI #
NC7SZ74K8XCT-ND
|
DigiKey | IC FF D-TYPE SNGL 1BIT US8 Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1106 / $0.1371 | Buy Now |
|
DISTI #
NC7SZ74K8X
|
Avnet Americas | Flip Flop D-Type Positive-Edge 3-State-OUT 1Input 8-Pin US T/R - Tape and Reel (Alt: NC7SZ74K8X) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 53 Weeks, 1 Days Container: Reel | 0 |
|
$0.1270 / $0.1621 | Buy Now |
|
DISTI #
58K9468
|
Avnet Americas | Flip Flop D-Type Positive-Edge 3-State-OUT 1Input 8-Pin US T/R - Product that comes on tape, but is not reeled (Alt: 58K9468) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 100 Weeks, 4 Days Container: Ammo Pack | 0 |
|
$0.1710 | Buy Now |
|
DISTI #
512-NC7SZ74K8X
|
Mouser Electronics | Flip Flops TinyLogic UHS D-Type RoHS: Compliant | 0 |
|
$0.1370 / $0.5000 | Order Now |
|
|
Future Electronics | NC7SZ74 Series 5.5 V TinyLogic UHS D-Type Flip-Flop with Preset and Clear - US8 RoHS: Compliant pbFree: Yes Min Qty: 9000 Package Multiple: 3000 Container: Reel | 0Reel |
|
$0.1110 / $0.1210 | Buy Now |
|
|
Future Electronics | NC7SZ74 Series 5.5 V TinyLogic UHS D-Type Flip-Flop with Preset and Clear - US8 RoHS: Compliant pbFree: Yes Min Qty: 9000 Package Multiple: 3000 Container: Reel | 0Reel |
|
$0.1110 / $0.1210 | Buy Now |
|
|
Bristol Electronics | 5166 |
|
RFQ |
Part Details for NC7SZ74K8X
NC7SZ74K8X CAD Models
NC7SZ74K8X Part Data Attributes:
|
|
NC7SZ74K8X
onsemi
Buy Now
Datasheet
|
Compare Parts:
NC7SZ74K8X
onsemi
TinyLogic UHS D-Type Flip-Flop with Preset and Clear, 3000-REEL
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Package Description | US-8 | |
| Manufacturer Package Code | 846AN | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 76 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 2.3 mm | |
| Load Capacitance (CL) | 15 pF | |
| Logic IC Type | D FLIP-FLOP | |
| Max Frequency@Nom-Sup | 175000000 Hz | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSSOP8,.12,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 50 mA | |
| Prop. Delay@Nom-Sup | 13 ns | |
| Propagation Delay (tpd) | 13 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.9 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL GOLD PALLADIUM | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 2 mm | |
| fmax-Min | 250 MHz |
