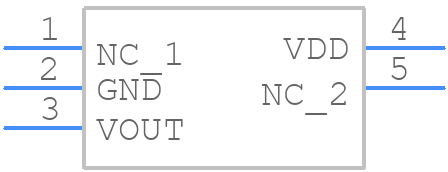

Part Symbol
-
Footprint
-

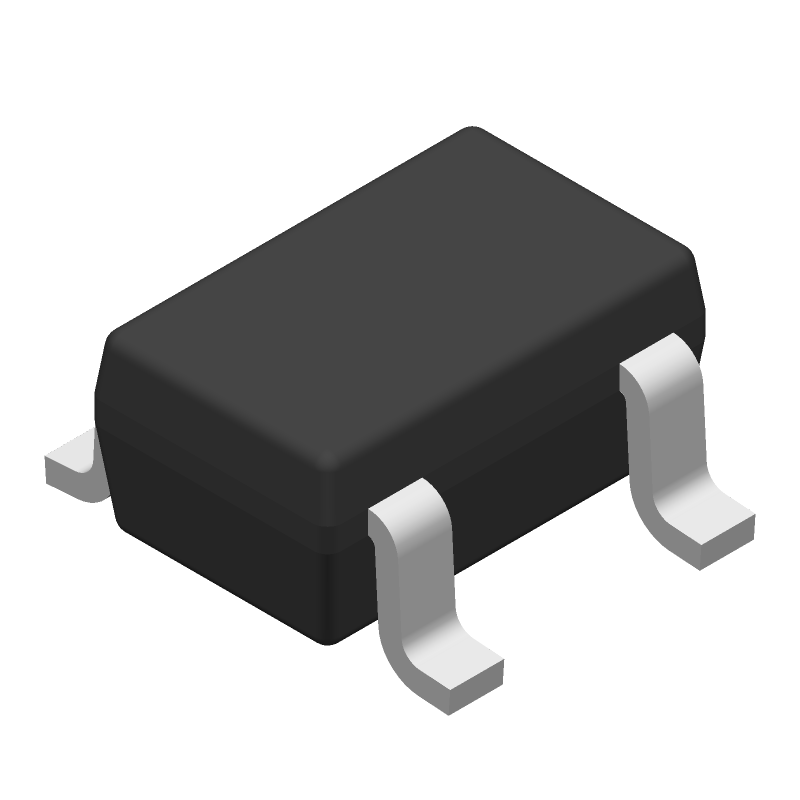

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMP235A4DCKR by Texas Instruments
Overview of TMP235A4DCKR by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 cross)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Price & Stock for TMP235A4DCKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-50016-1-ND
|
DigiKey | SENSOR ANALOG -40C-150C SC70-5 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
9220 In Stock |
|
$0.1400 / $0.4400 | Buy Now |
|
DISTI #
595-TMP235A4DCKR
|
Mouser Electronics | Board Mount Temperature Sensors 1C analog temperature sensor, 10 mV/C 5-SC70 -40 to 150 RoHS: Compliant | 8650 |
|
$0.1330 / $0.4000 | Buy Now |
|
|
Rochester Electronics | TMP235 +2.5C Analog output temperature sensor, with 10mV /C gain RoHS: Compliant Status: Active Min Qty: 1 | 461 |
|
$0.1227 / $0.1444 | Buy Now |
|
DISTI #
TMP235A4DCKR
|
TME | IC: temperature sensor, -40÷150°C, SC70-5, SMD, Interface: analog Min Qty: 1 | 0 |
|
$0.1880 / $0.4050 | RFQ |
|
|
Ameya Holding Limited | LOW-POWER HIGH-ACCURACY ANALOG OUT TS | 2790453 |
|
RFQ | |
|
|
Win Source Electronics | SENSOR ANALOG -40C-150C SC70-5 / Temperature Sensor Analog, Local -40°C ~ 150°C 10mV/°C SC-70-5 | 46145 |
|
$0.7770 / $1.1650 | Buy Now |
Part Details for TMP235A4DCKR
TMP235A4DCKR CAD Models
TMP235A4DCKR Part Data Attributes:
|
|
TMP235A4DCKR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMP235A4DCKR
Texas Instruments
1C analog temperature sensor, 10 mV/C 5-SC70 -40 to 150
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SC-70, 5 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2017-12-17 | |
| Samacsys Manufacturer | Texas Instruments | |
| Accuracy-Max (Cel) | 2 Cel | |
| Additional Feature | SHORT CIRCUIT PROTECTION | |
| Body Breadth | 1.25 mm | |
| Body Height | 0.9 mm | |
| Body Length or Diameter | 2 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 5 | |
| Operating Current-Max | 0.012 mA | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Coefficient | POSITIVE ppm/°C | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Termination Type | SOLDER |
